Parts Location: Illustration

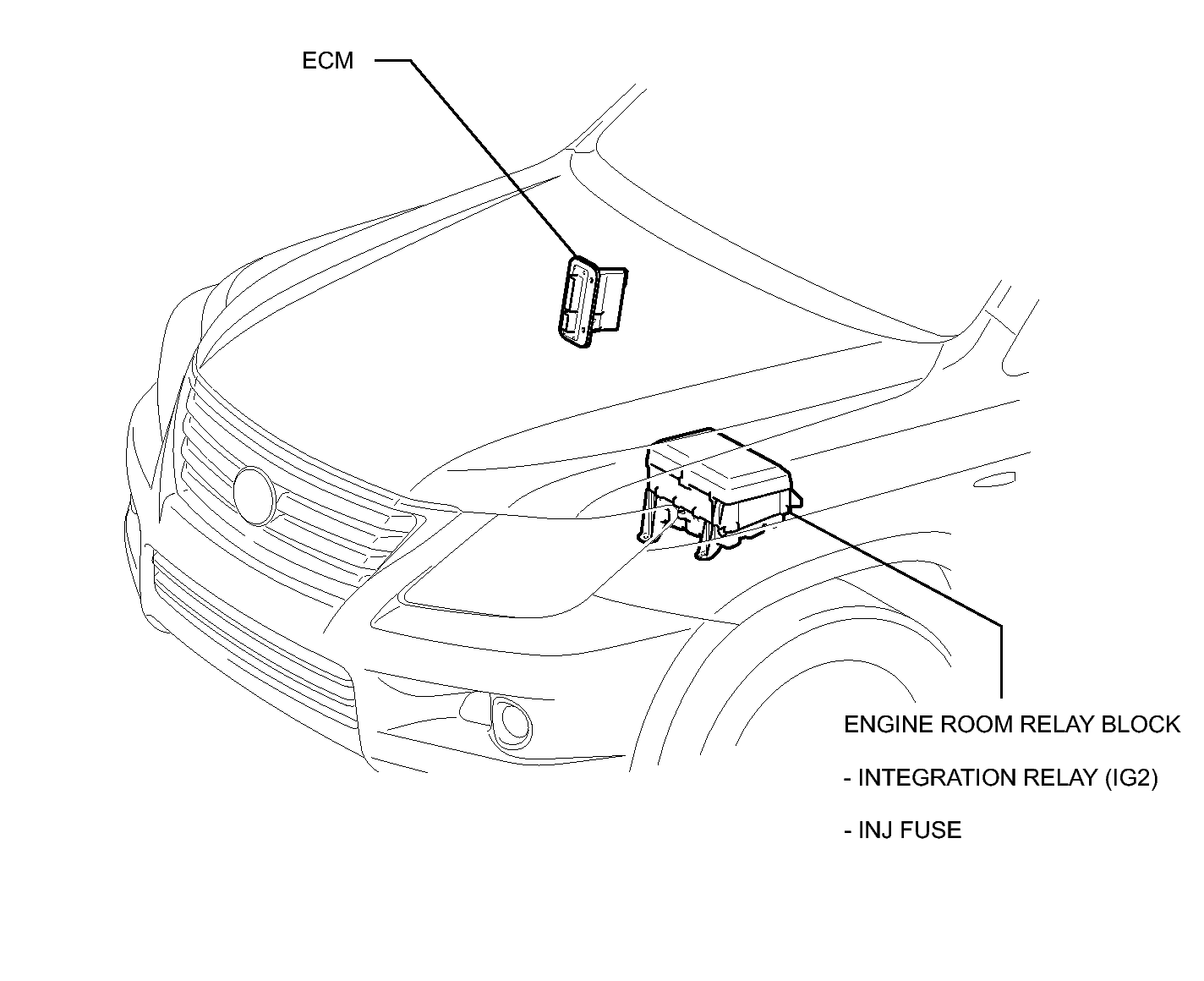

Fig 1: Identifying Ignition System Components Location (1 Of 2)
GTY120983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

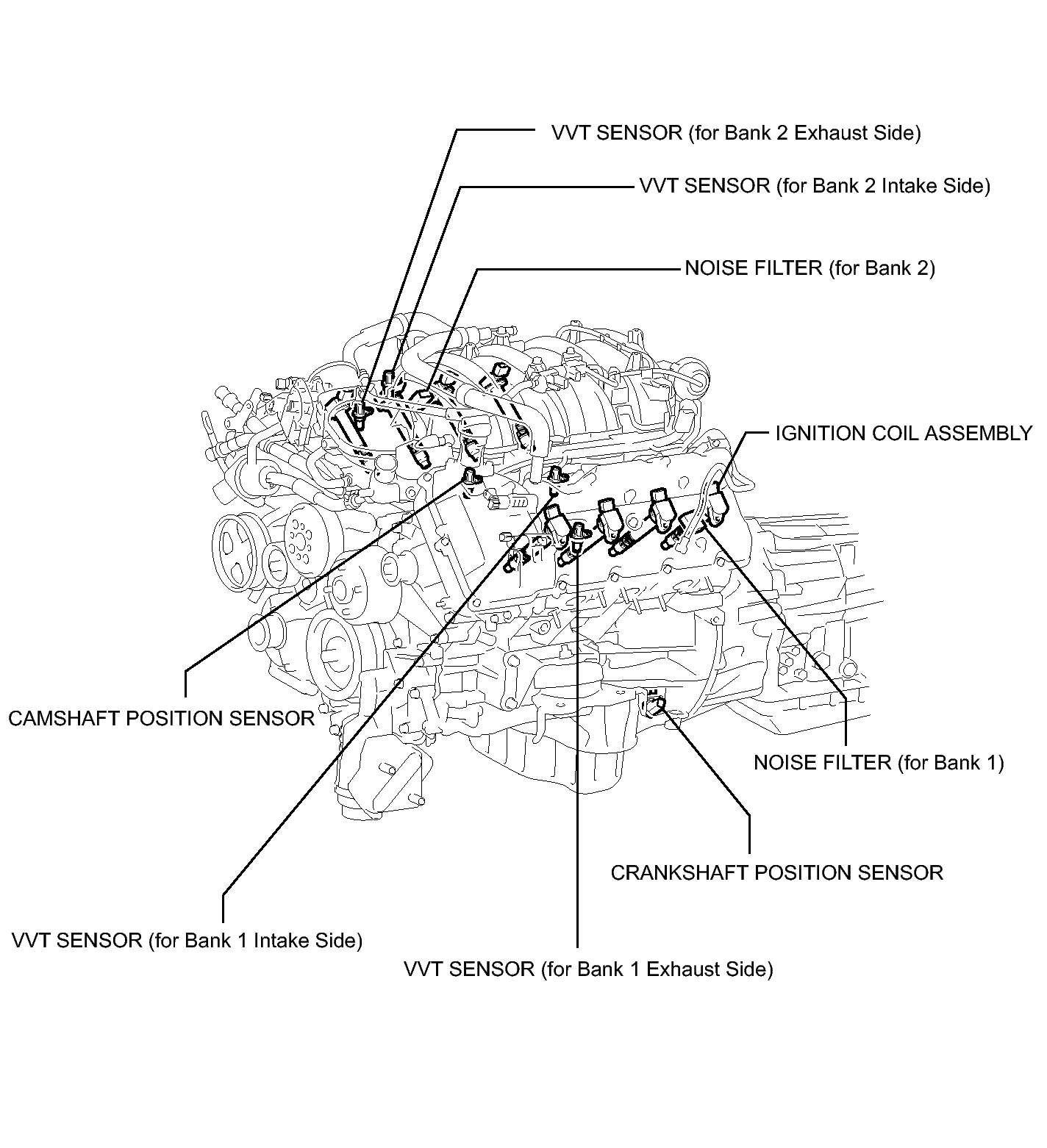

Fig 1: Identifying Ignition System Components Location (2 Of 2)
GTY120993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
