Cylinder Block: Replacement: Replacement

  1. REPLACE STRAIGHT PIN
    NOTE:

    It is not necessary to remove the straight pin unless it is being replaced.

    1. Remove the straight pins.
    2. Using a plastic-faced hammer, tap in new straight pins to the cylinder block.

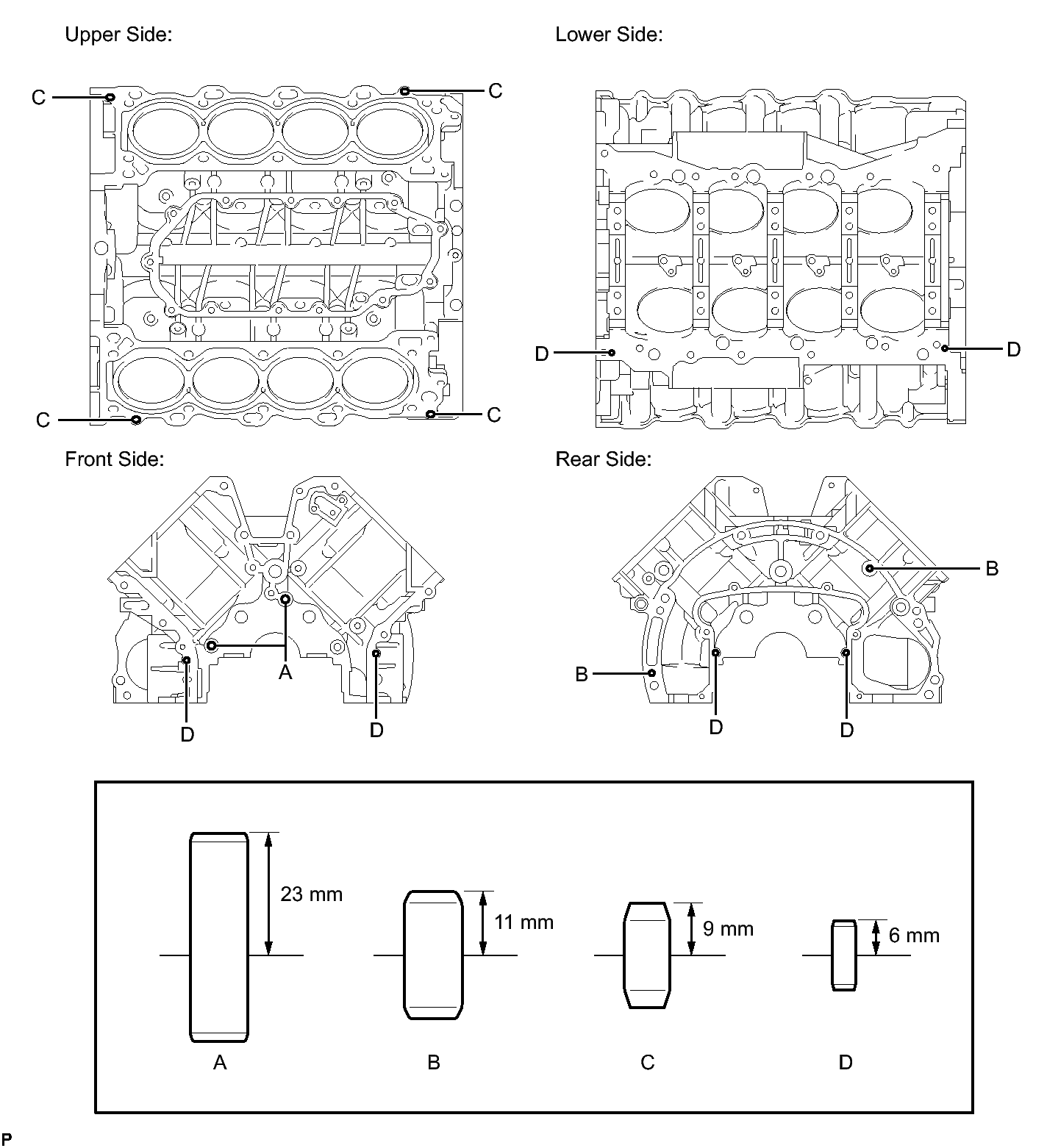

      Fig 1: Identifying Straight Pins To Cylinder Block
      GTY135424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Protrusion

      Item Pin Diameter Specified Condition
      Pin A 10 mm (0.394 in.) 23 mm (0.906 in.)
      Pin B 10 mm (0.394 in.) 11 mm (0.433 in.)
      Pin C 8 mm (0.315 in.) 9 mm (0.354 in.)
      Pin D 4 mm (0.157 in.) 6 mm (0.236 in.)
