Oil Pressure Sensor: Components: Illustration

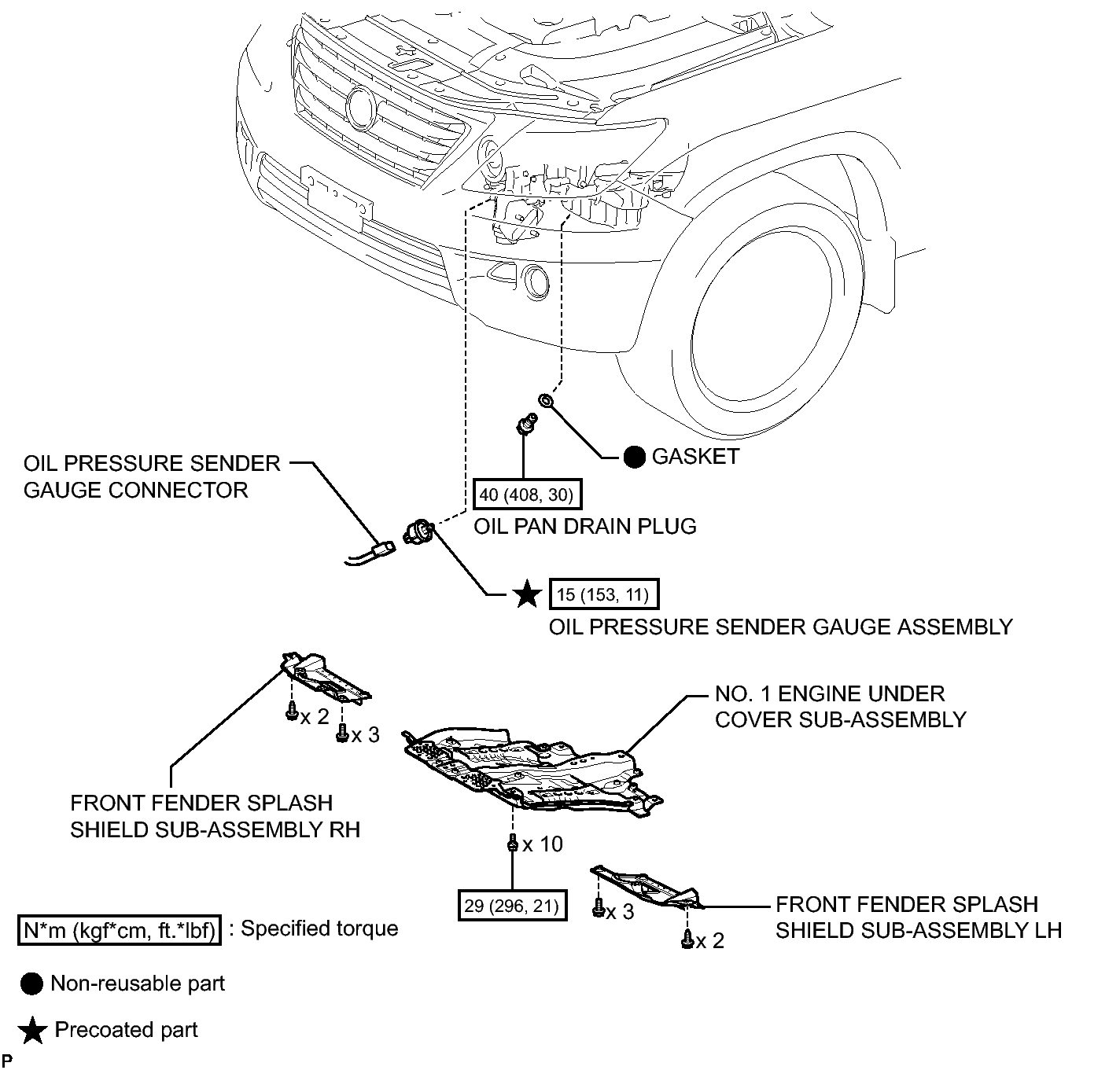

Fig 1: Identifying Oil Pressure Sensor Replacement Components With Torque Specifications

GTY121003

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
