Active Height Control Suspension And Adaptive Variable Suspension: Notes

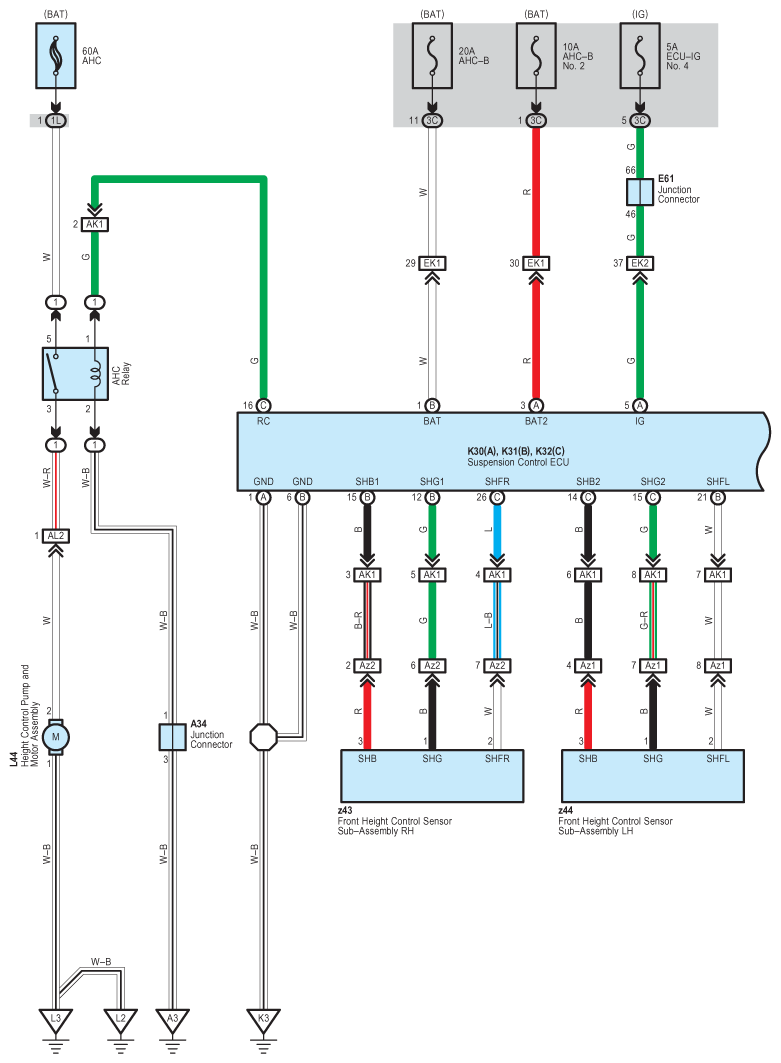

Fig 1: Active Height Control Suspension And Adaptive Variable Suspension - Circuit Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

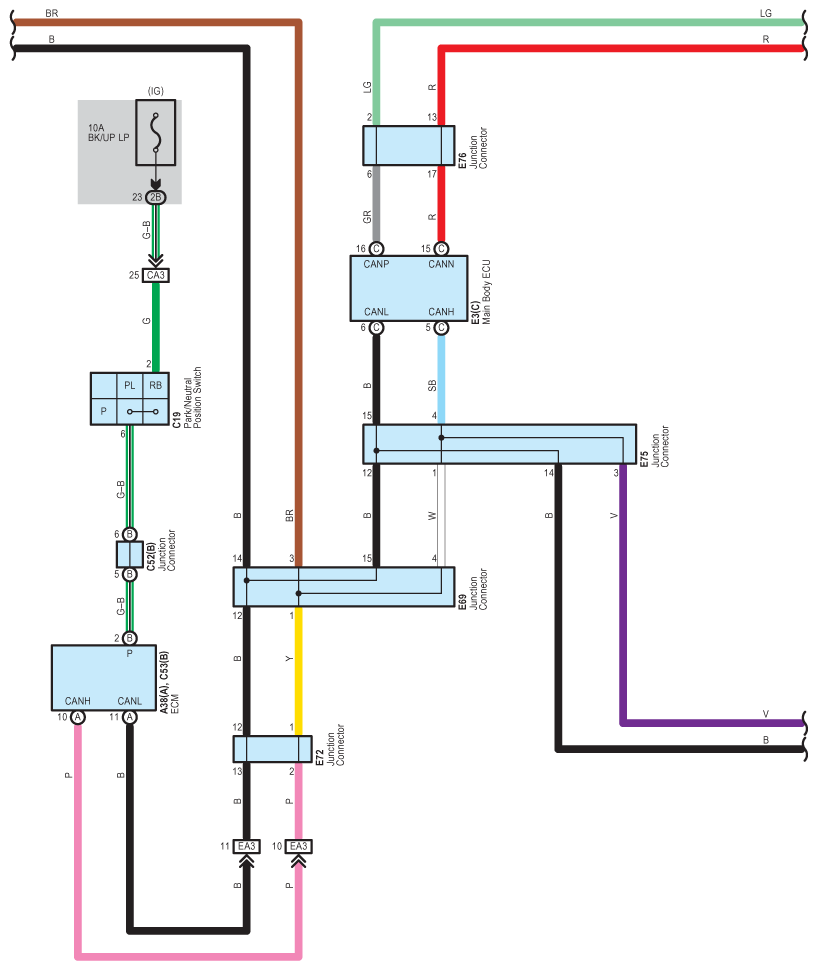

Fig 2: Active Height Control Suspension And Adaptive Variable Suspension - Circuit Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

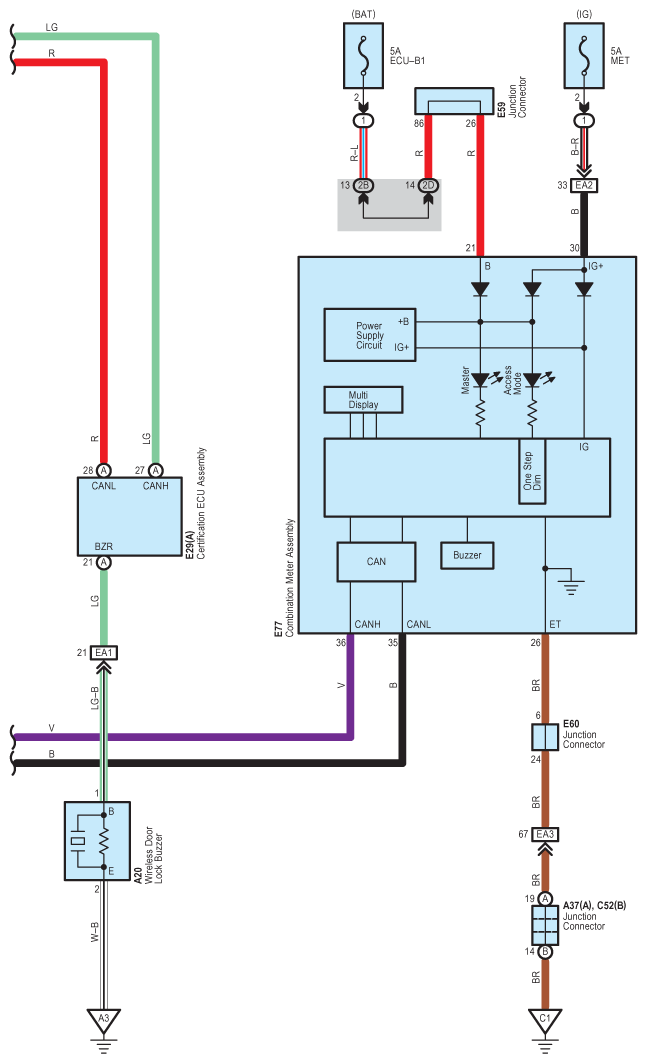

Fig 3: Active Height Control Suspension And Adaptive Variable Suspension - Circuit Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

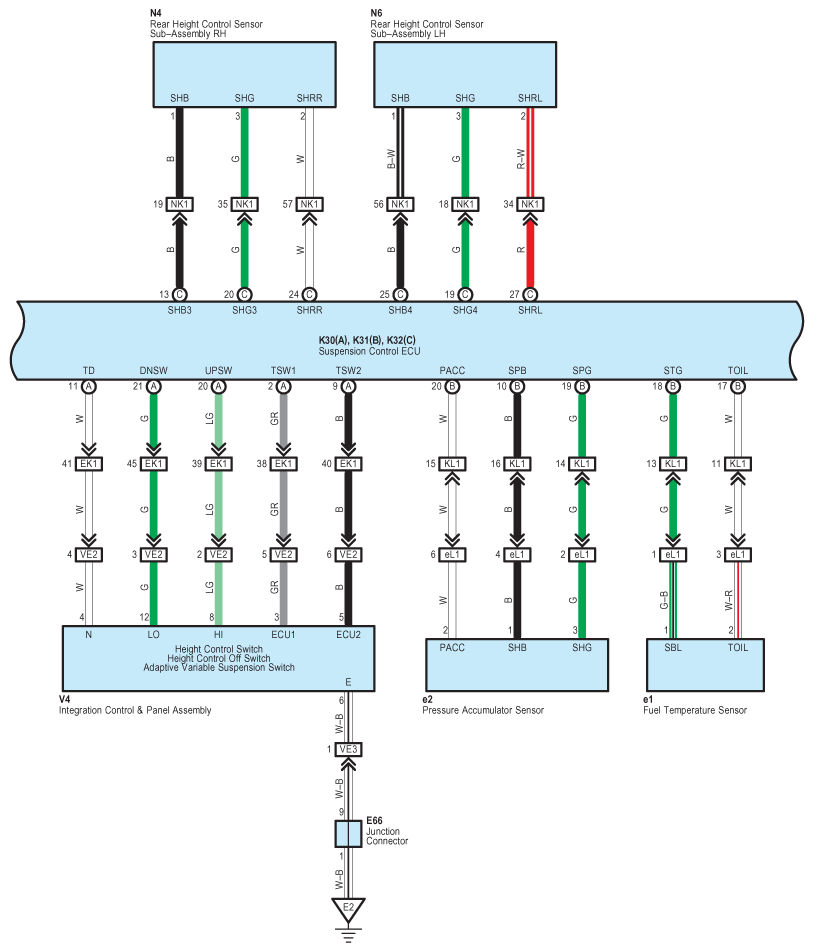

Fig 4: Active Height Control Suspension And Adaptive Variable Suspension - Circuit Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

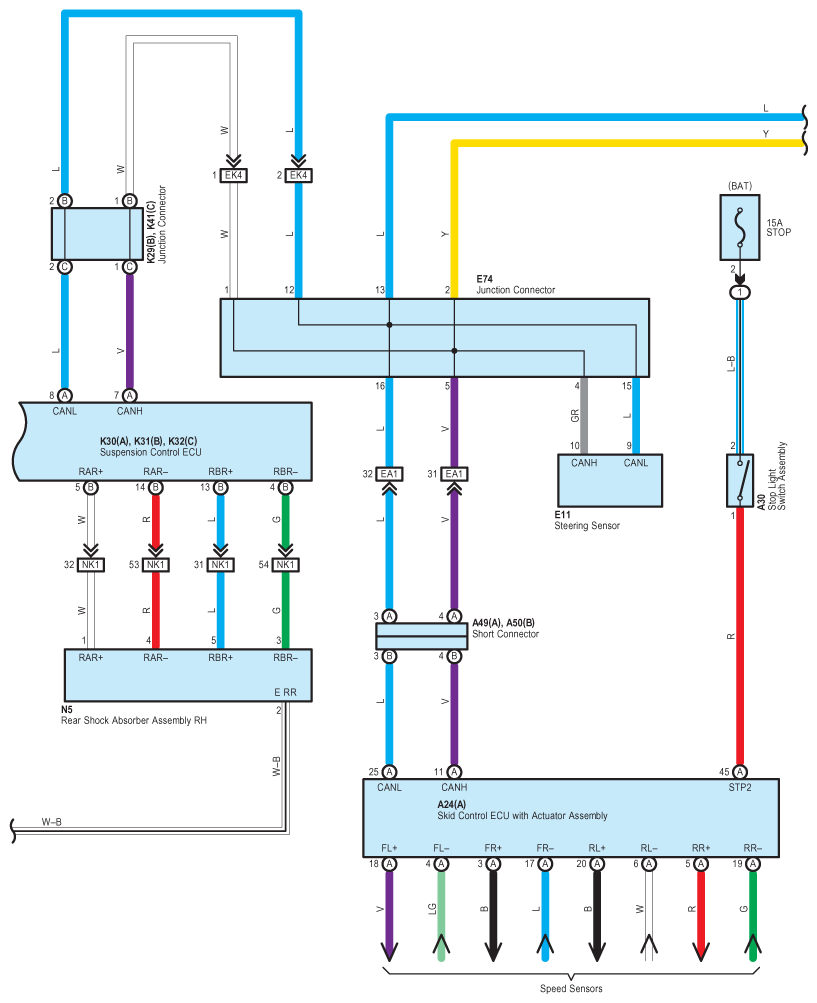

Fig 5: Active Height Control Suspension And Adaptive Variable Suspension - Circuit Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

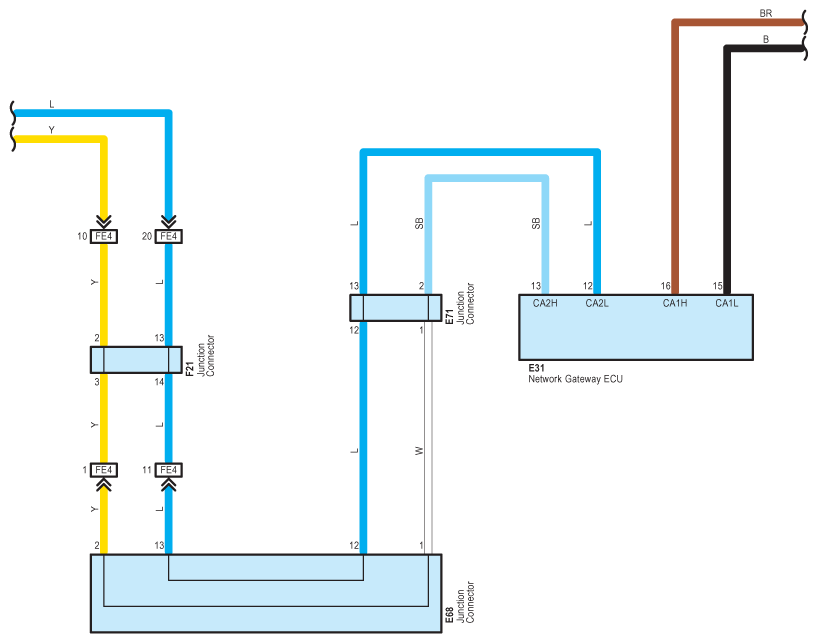

Fig 6: Active Height Control Suspension And Adaptive Variable Suspension - Circuit Diagram (6 Of 8)

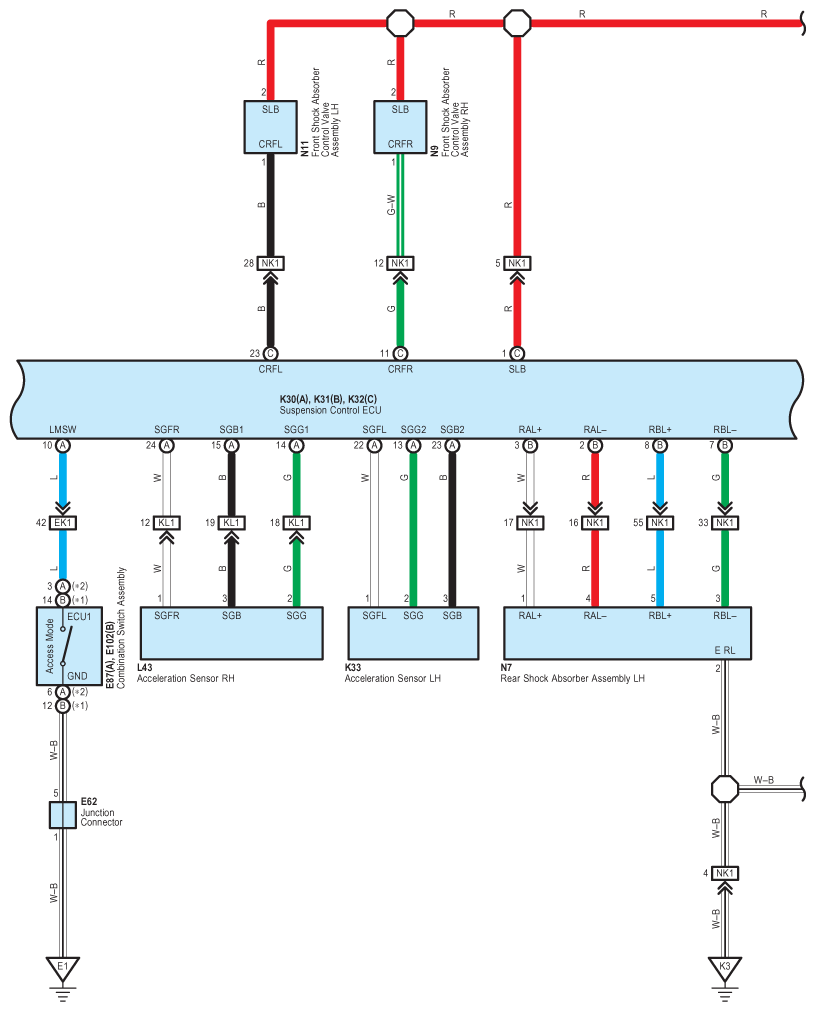

Fig 7: Active Height Control Suspension And Adaptive Variable Suspension - Circuit Diagram (7 Of 8)

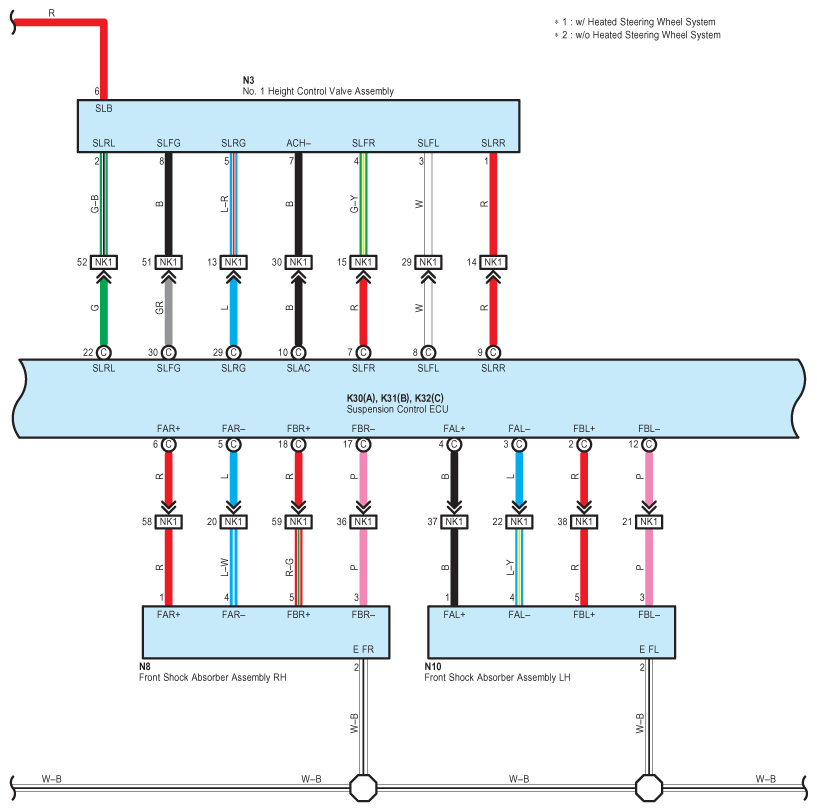

Fig 8: Active Height Control Suspension And Adaptive Variable Suspension - Circuit Diagram (8 Of 8)
