Removal (08/2010 - 08/2011): Removal

REMOVE ENGINE ROOM SIDE COVER LH . Refer to REMOVAL - Step 1
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
- w/ Navigation System:
  After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY . Refer to REMOVAL - Step 35
REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY . Refer to REMOVAL - Step 44
REMOVE DISPLAY AND NAVIGATION MODULE DISPLAY
1. Remove the 2 screws and 2 bolts.

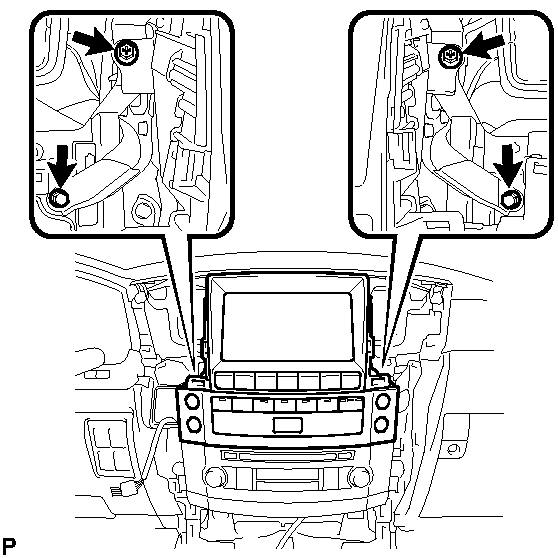

  Fig 1: Locating Multi-Display Assembly Screws And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull the radio receiver to detach the 2 claws and 4 clips on the backside of the display.

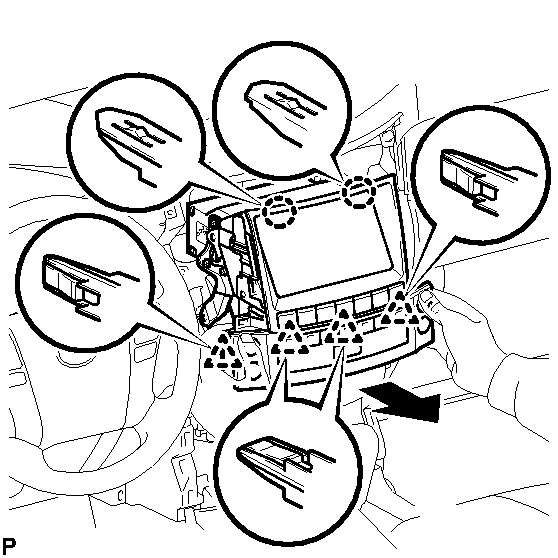

  Fig 2: Pulling Radio Receiver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the connectors and remove the display.
REMOVE NO. 1 RADIO RECEIVER BRACKET
1. Remove the 3 bolts and bracket.

  Fig 3: Locating No. 1 Radio Receiver Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 RADIO RECEIVER BRACKET
1. Remove the 3 bolts and bracket.

  Fig 4: Locating No. 2 Radio Receiver Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
