Installation (08/2010 - 08/2011): Installation

INSTALL NO. 2 RADIO RECEIVER BRACKET
1. Install the bracket with the 3 bolts.
  Torque: 3.0 N*m (30 kgf*cm, 26 in.*lbf)

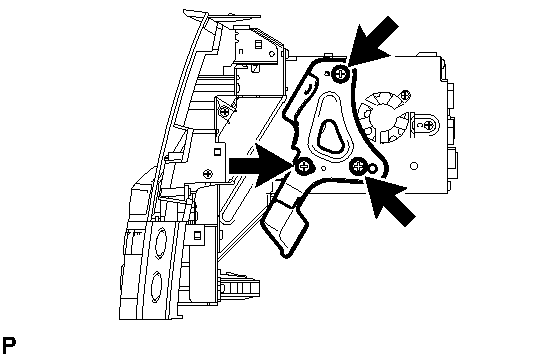

  Fig 1: Locating No. 2 Radio Receiver Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 RADIO RECEIVER BRACKET
1. Install the bracket with the 3 bolts.
  Torque: 3.0 N*m (30 kgf*cm, 26 in.*lbf)

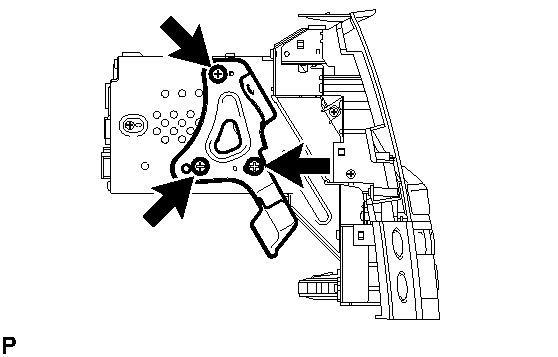

  Fig 2: Locating No. 1 Radio Receiver Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DISPLAY AND NAVIGATION MODULE DISPLAY
1. Connect the connectors.
2. Insert the display and attach the 2 claws and 4 clips on its backside.

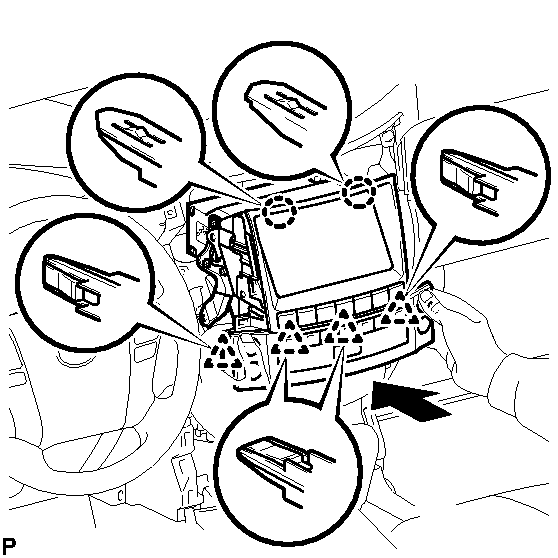

  Fig 3: Identifying Display And Navigation Module Display Claws And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  When inserting the display, do not press the knobs on it.
3. Install the display with the 2 screws and 2 bolts.
  for bolts labeled A

  Torque: 12 N*m (122 kgf*cm, 8 ft.*lbf)

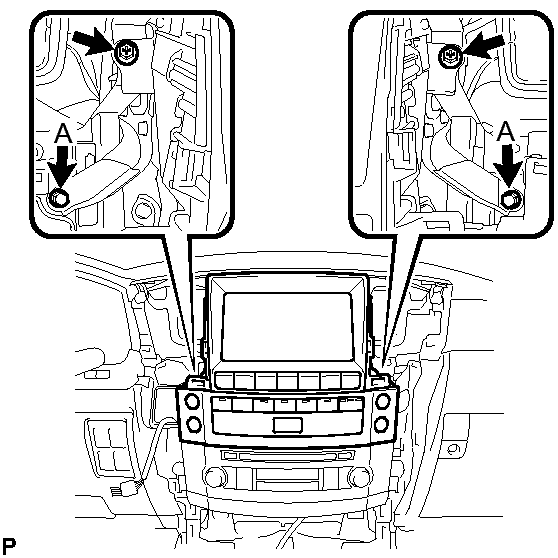

  Fig 4: Locating Display And Navigation Module Display Screws And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY . Refer to INSTALLATION - Step 23
INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY . Refer to INSTALLATION - Step 32
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSTALL ENGINE ROOM SIDE COVER LH . Refer to INSTALLATION - Step 3
