DTC B2286: Runnable Signal Malfunction (08/2010 - 08/2011): Wiring Diagram

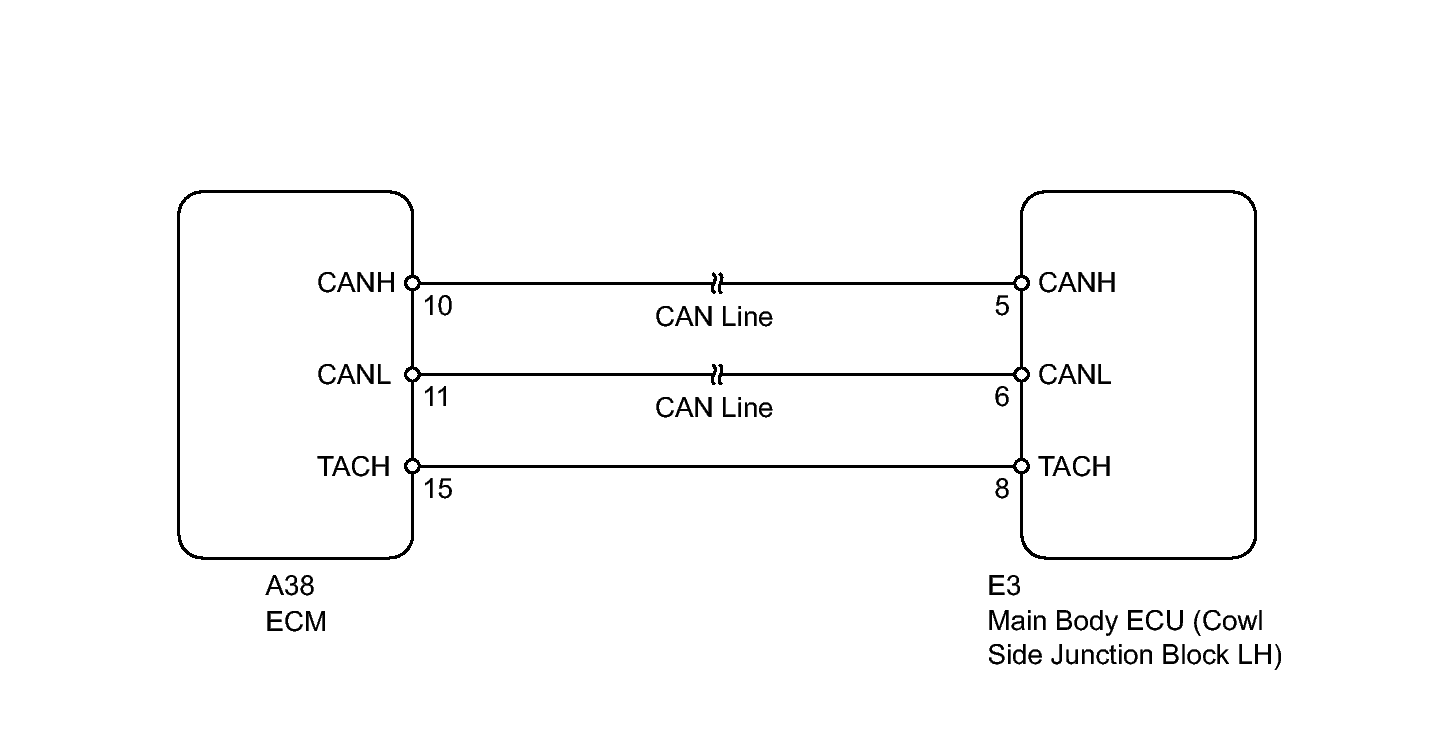

Fig 1: Runnable Signal Malfunction - Wiring Diagram

GTY352314

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
