Smart Access System With Push-Button Start (For Start Function) (Diagnostic Codes & Circuit Tests)
>>
SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function)
>>
DTC B2285: Steering Lock Position Signal Circuit Malfunction; DTC B2288: Steering Lock Signal Circuit Malfunction
>>
Wiring Diagram
DTC B2285: Steering Lock Position Signal Circuit Malfunction; DTC B2288: Steering Lock Signal Circuit Malfunction: Wiring Diagram

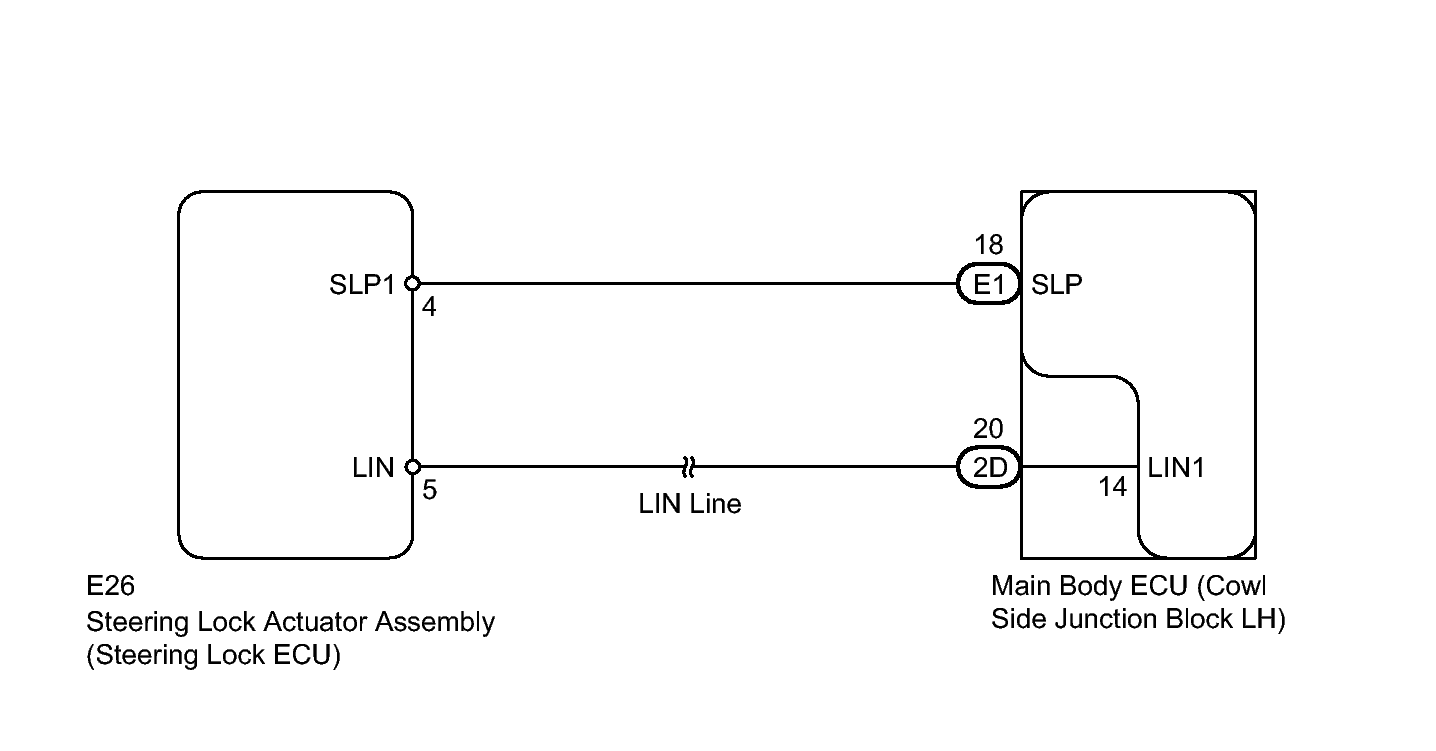

Fig 1: Steering Lock Position Signal Circuit Malfunction - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
