DTC B2273: Ignition 2 Monitor Malfunction: Wiring Diagram

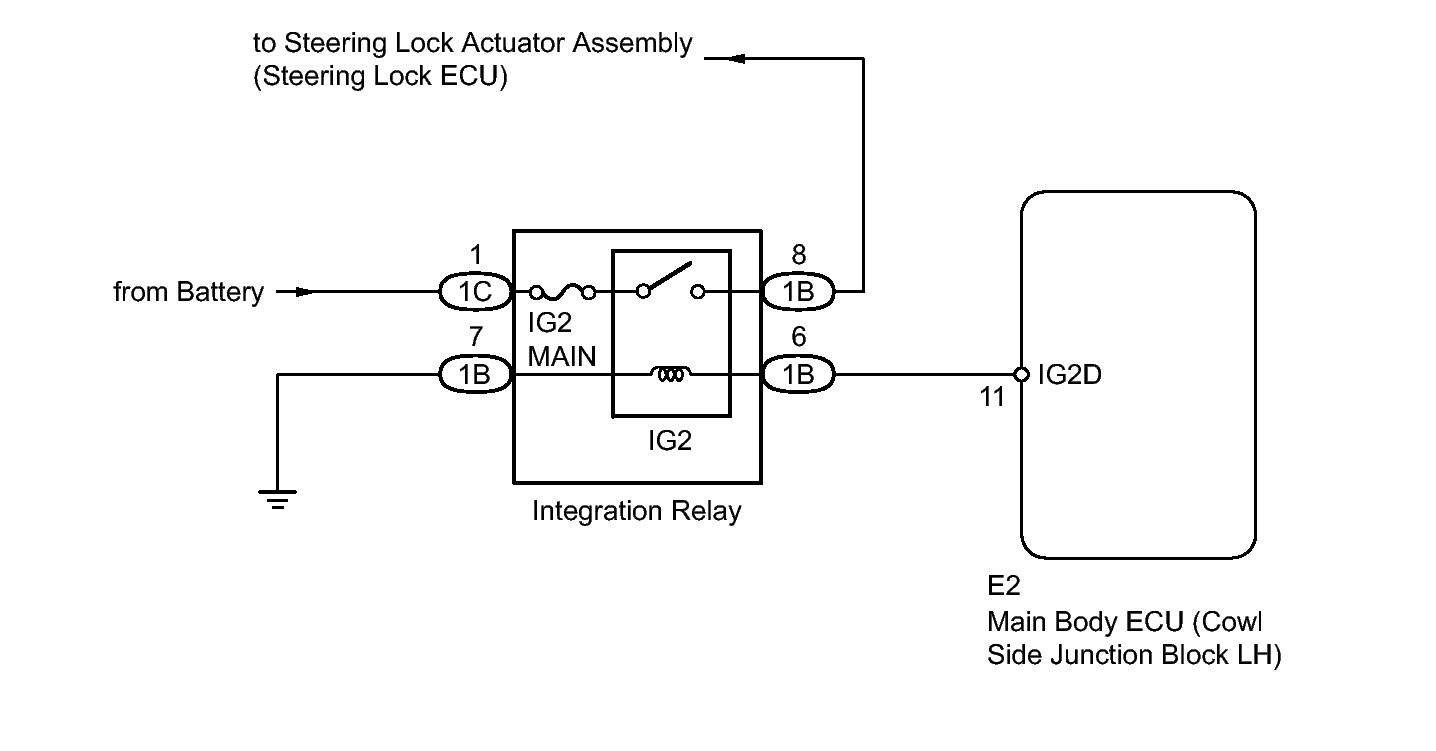

Fig 1: Ignition 2 Monitor Malfunction - Wiring Diagram

GTY138803

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
