DTC B2272: Ignition 1 Monitor Malfunction: Wiring Diagram

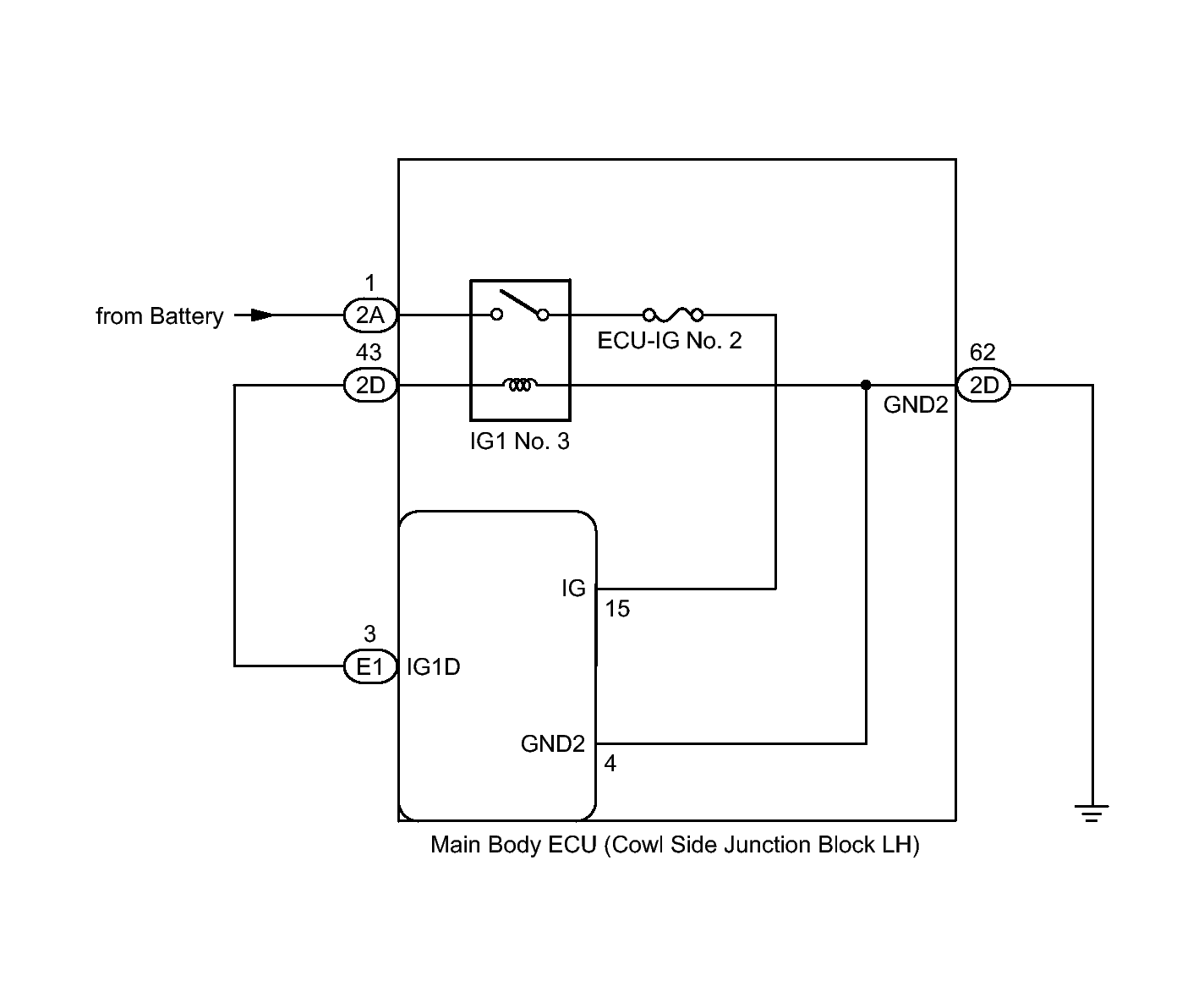

Fig 1: Ignition 1 Monitor Malfunction - Wiring Diagram

GTY134666

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
