System Diagram

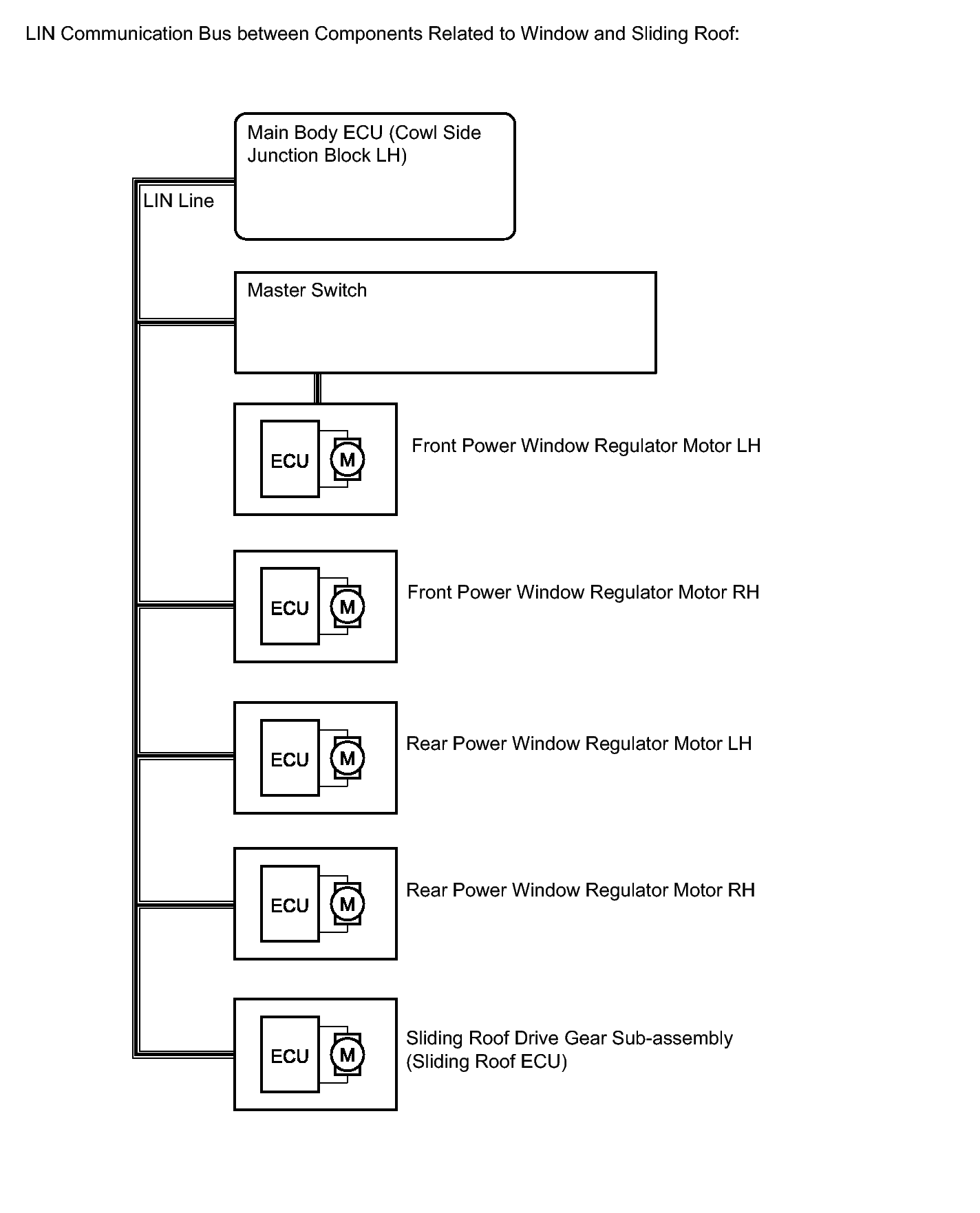

Fig 1: LIN Communication System - System Diagram (1 Of 5)
GTY114723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

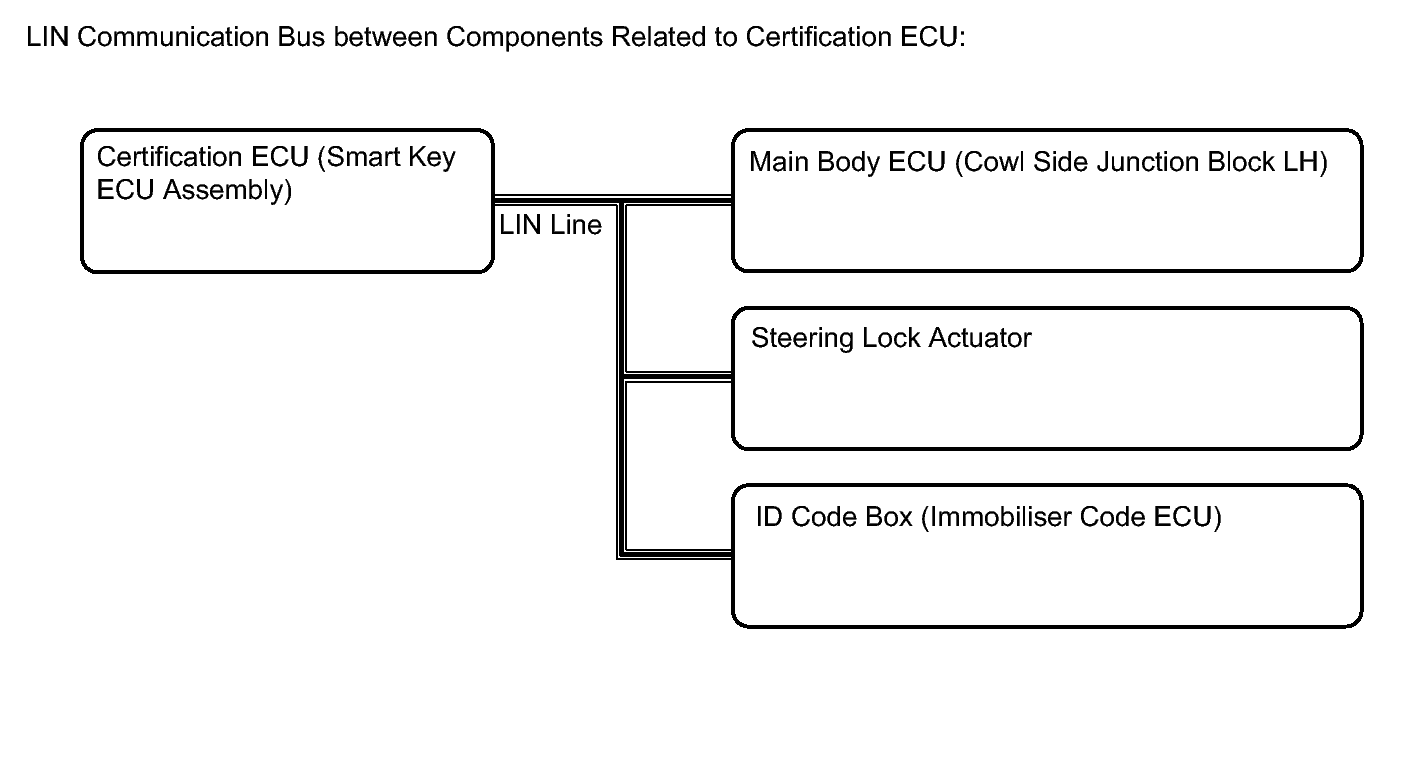

Fig 2: LIN Communication System - System Diagram (2 Of 5)
GTY136260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

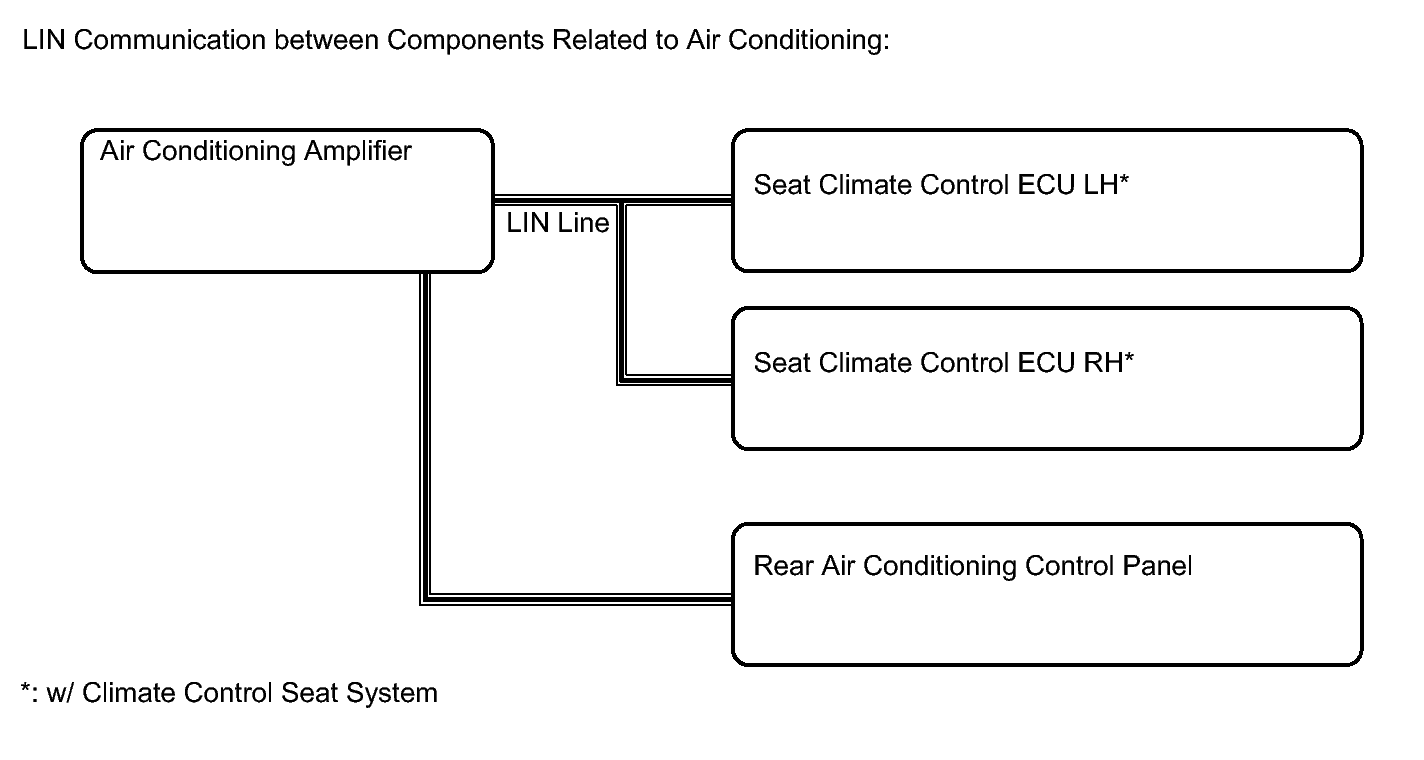

Fig 3: LIN Communication System - System Diagram (3 Of 5)
GTY126248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: LIN Communication System - System Diagram (4 Of 5)
GTY140484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: LIN Communication System - System Diagram (5 Of 5)
GTY117079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
