DTC B2405: Sub Bus LIN Module Communication Malfunction (08/2010 - 08/2011): Wiring Diagram

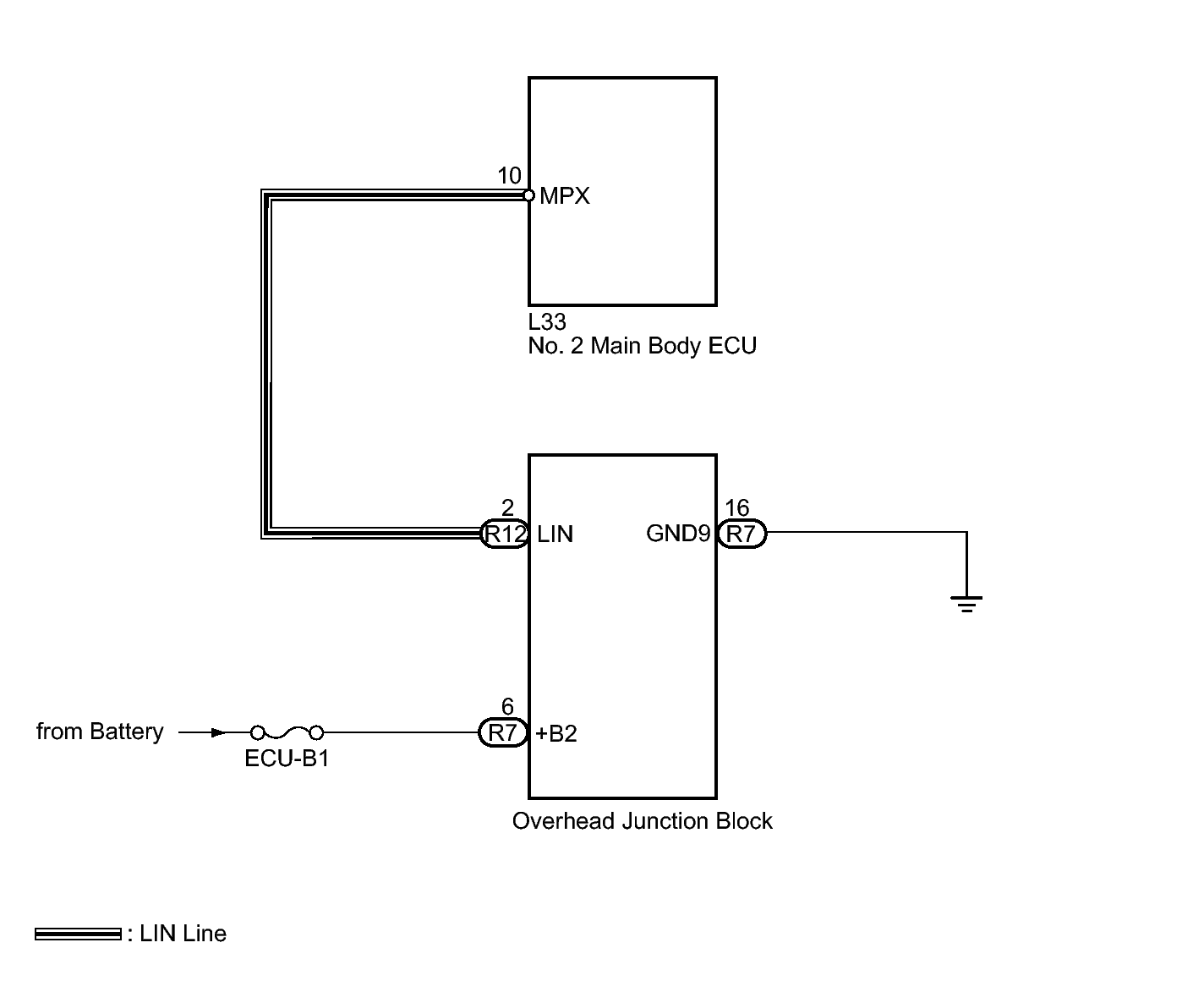

Fig 1: Sub Bus LIN Module Communication Malfunction - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
