Transmission Wire: Components: Illustration

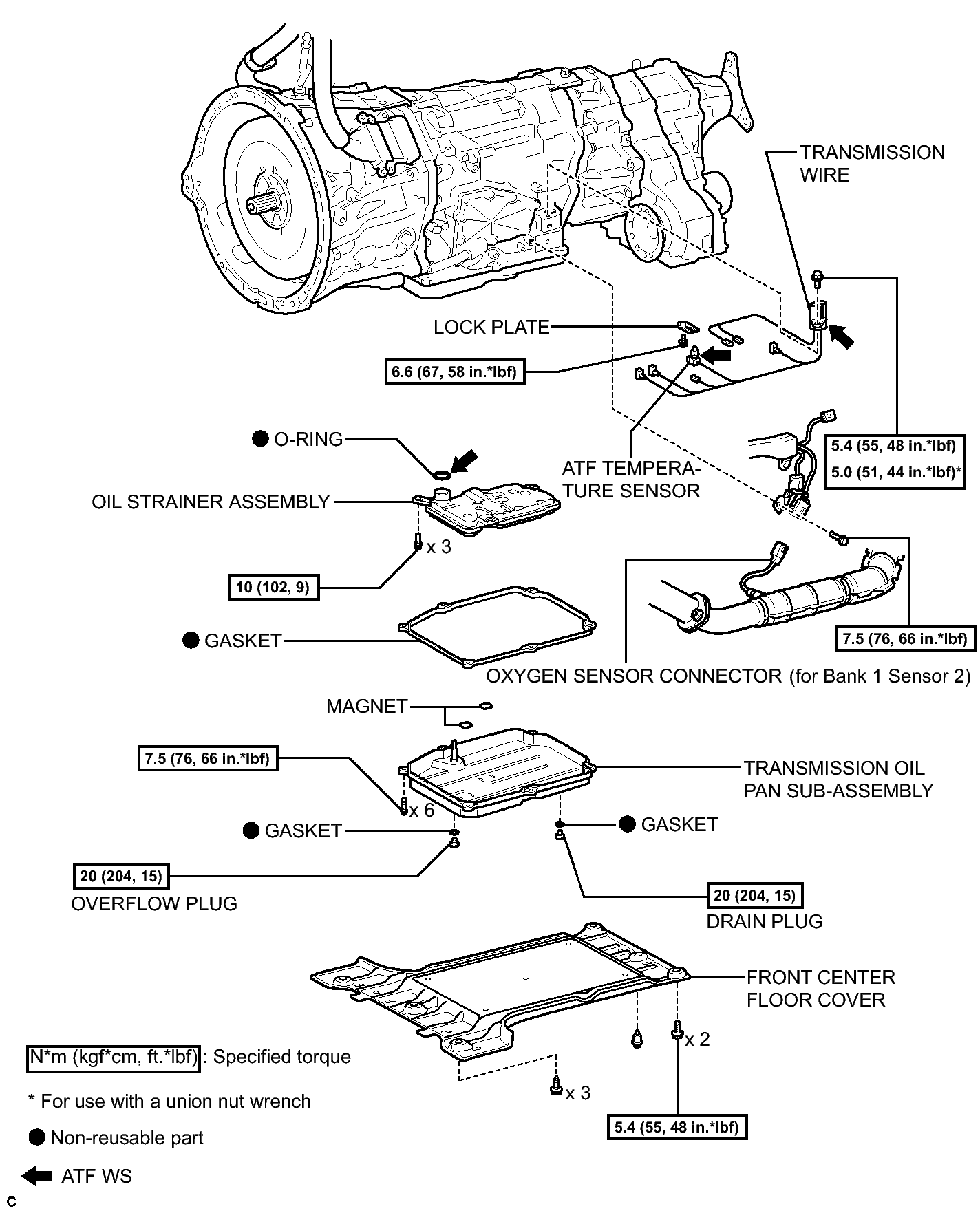

Fig 1: Transmission Wire Replacement Components With Torque Specifications

GTY108995

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
