Oil Pump Motor Controller: Components: Illustration

Fig 1: Identifying Oil Pump Motor Controller Replacement Components (1 Of 2)
GTY138369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

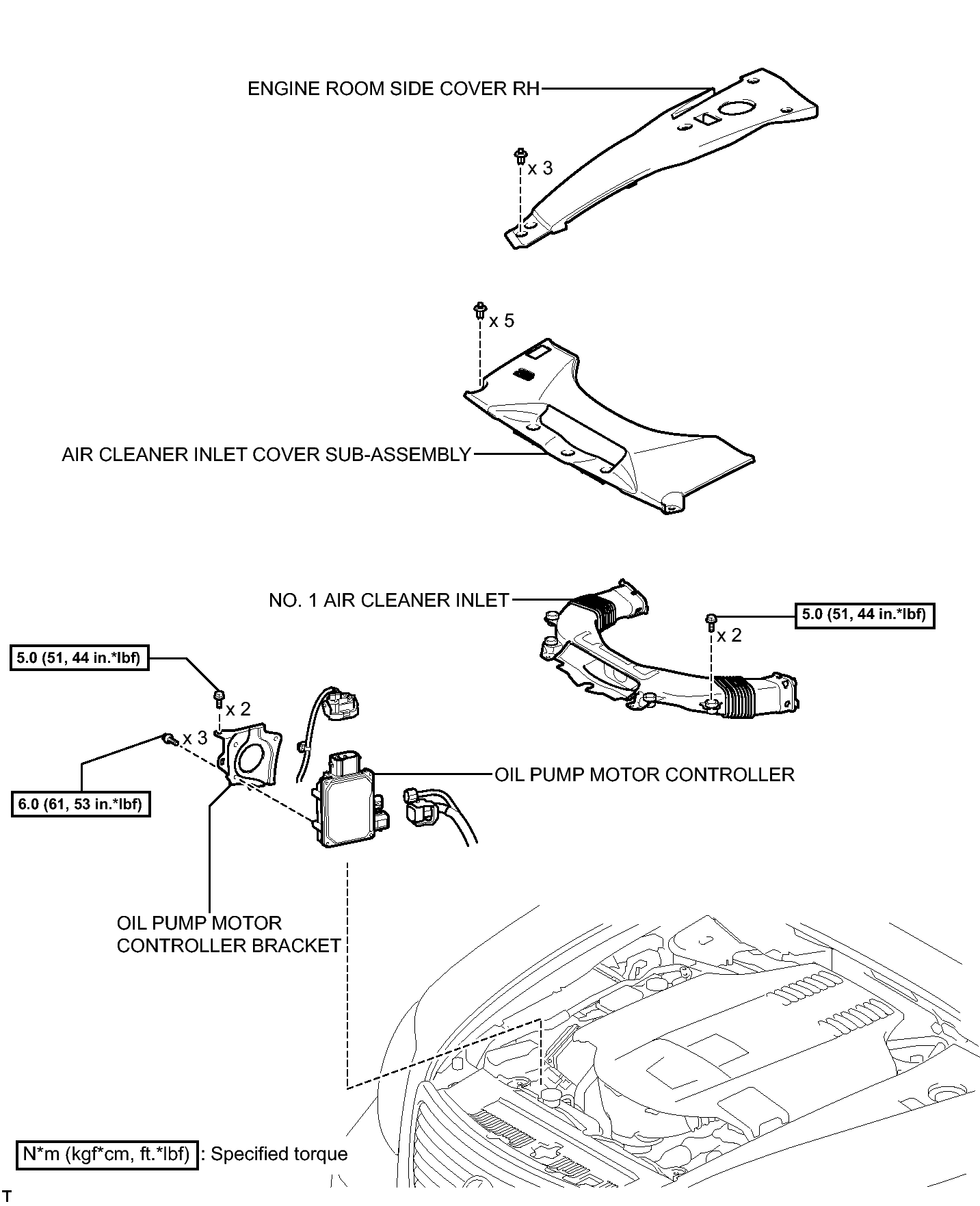

Fig 1: Identifying Oil Pump Motor Controller Replacement Components With Torque Specifications (2 Of 2)
GTY110103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
