Steering Wheel: Components: Illustration

Fig 1: Identifying Steering Wheel Replacement Components (1 Of 2)
GTY138369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

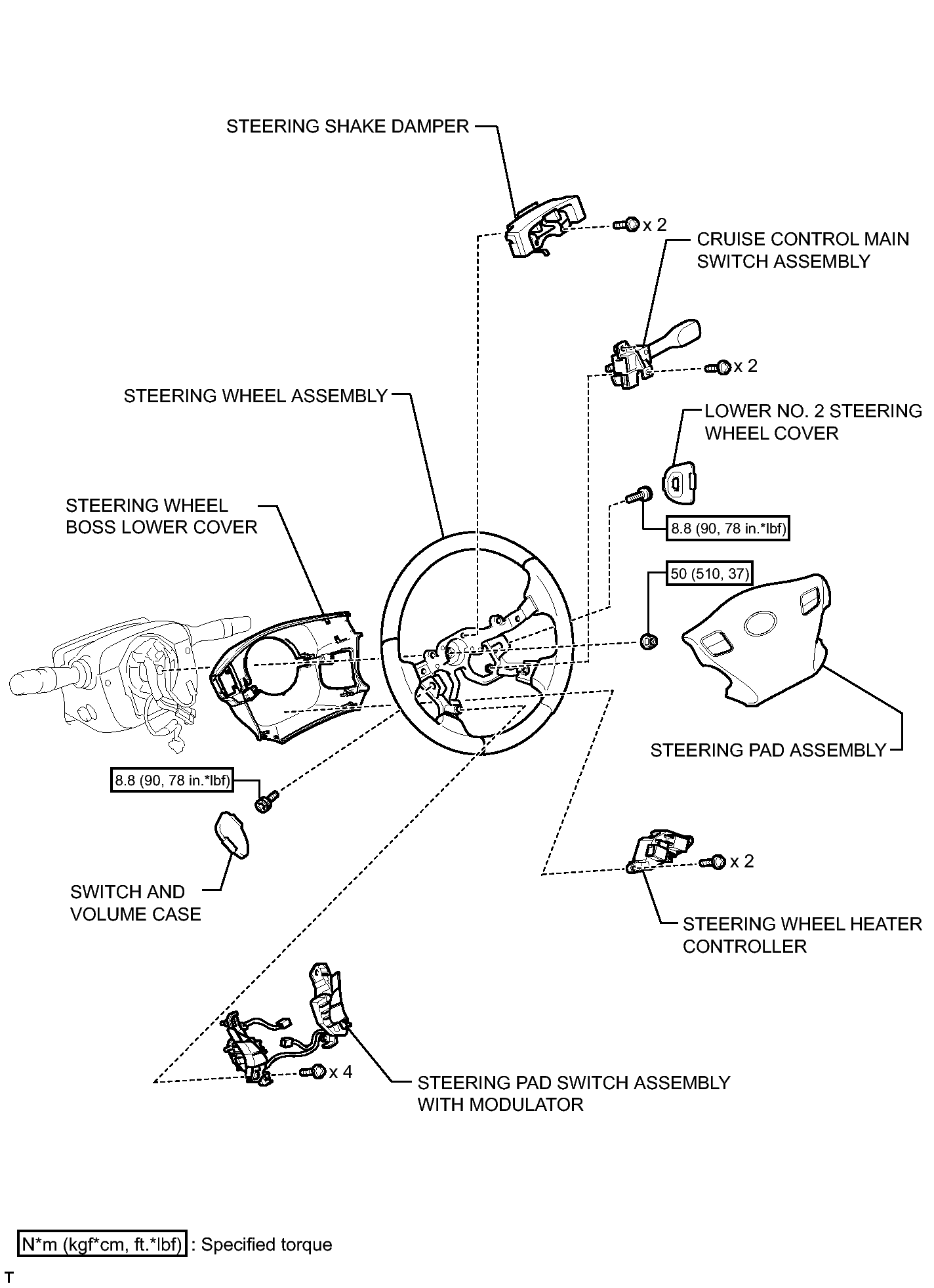

Fig 1: Identifying Steering Wheel Replacement Components With Torque Specifications (2 Of 2)
GTY353806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
