Home >> Lexus >> 2011 >> LS 600hL >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering System (Service Information) >> Dc/Dc Converter >> Components >> Illustration

Dc/Dc Converter: Components: Illustration

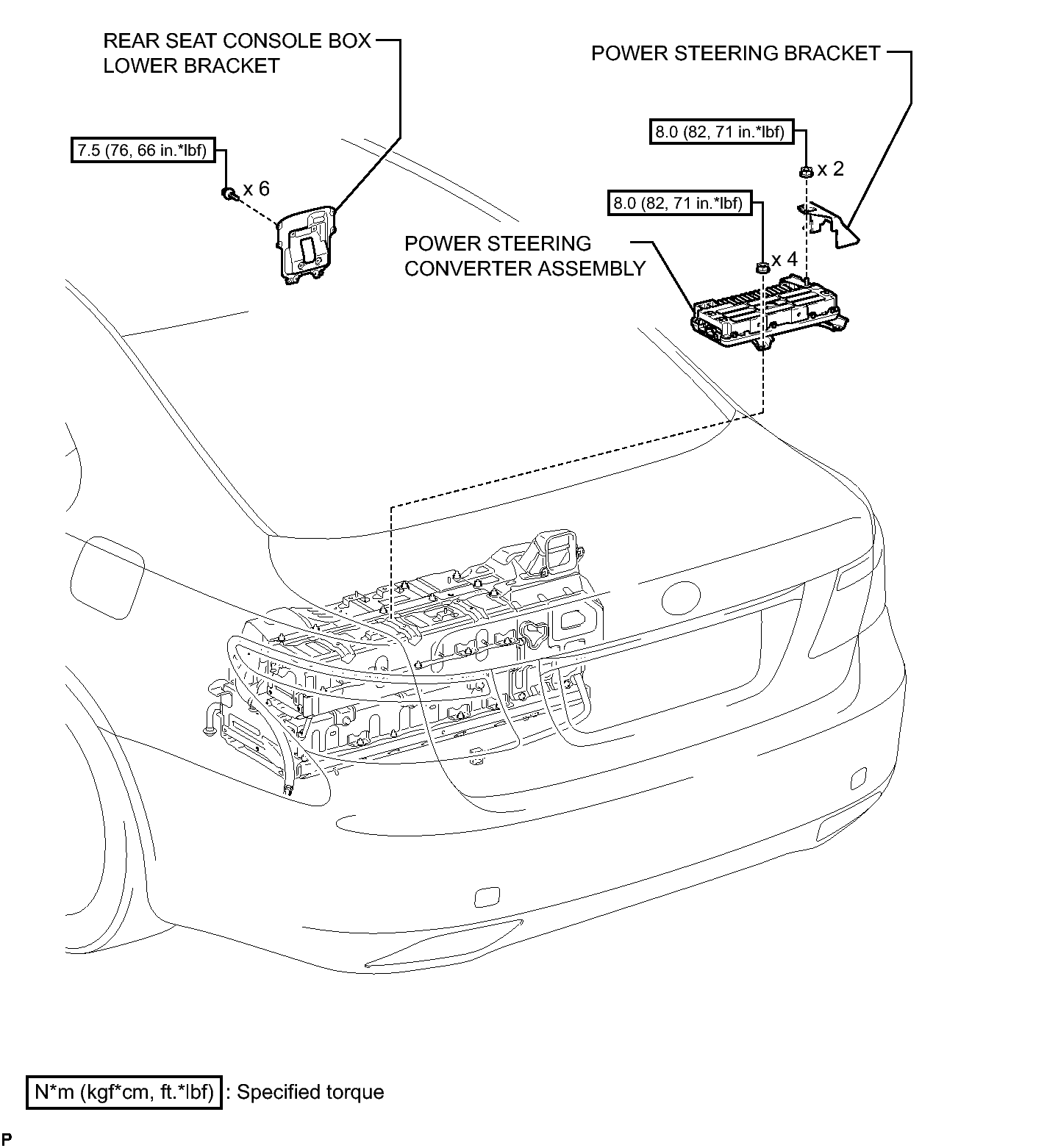

Fig 1: Identifying DC/DC Converter Replacement Components With Torque Specifications

GTY273501

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
