Dc/Dc Converter: Installation: Installation

INSTALL POWER STEERING CONVERTER ASSEMBLY
1. Install the 4 nuts and power steering converter assembly.

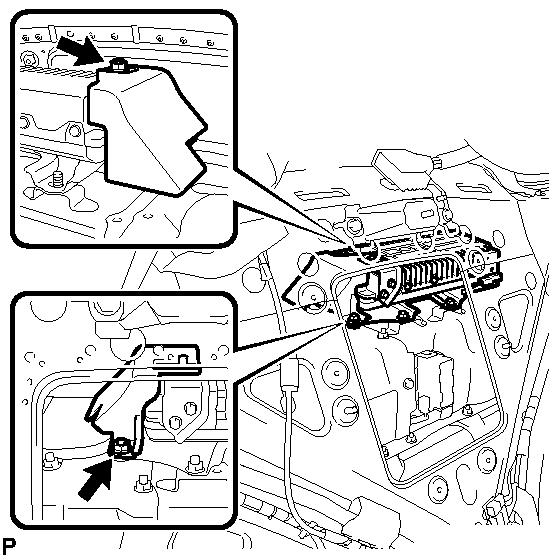

  Fig 1: Identifying Nuts & Power Steering Converter Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
2. Connect the 5 connectors.

  Fig 2: Identifying Power Steering Converter Assembly Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 2 nuts and power steering ECU bracket.

  Fig 3: Identifying Nuts & Power Steering ECU Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
INSTALL REAR SEAT CONSOLE BOX LOWER BRACKET . Refer to INSTALLATION - Step 36
INSTALL REAR COOLING UNIT
1. w/ Rear Air Conditioner:
  Install the rear cooling unit. Refer to INSTALLATION .
2. w/o Rear Air Conditioner:
  Install the rear cooling unit. Refer to INSTALLATION .
CONNECT SERVICE PLUG GRIP
Refer to INSTALLATION
