FUEL INJECTOR (for Direct Injection): Components: Illustration

Fig 1: Identifying Fuel Injector (For Direct Injection) Replacement Components With Torque Specifications (1 Of 2)
GTY353625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

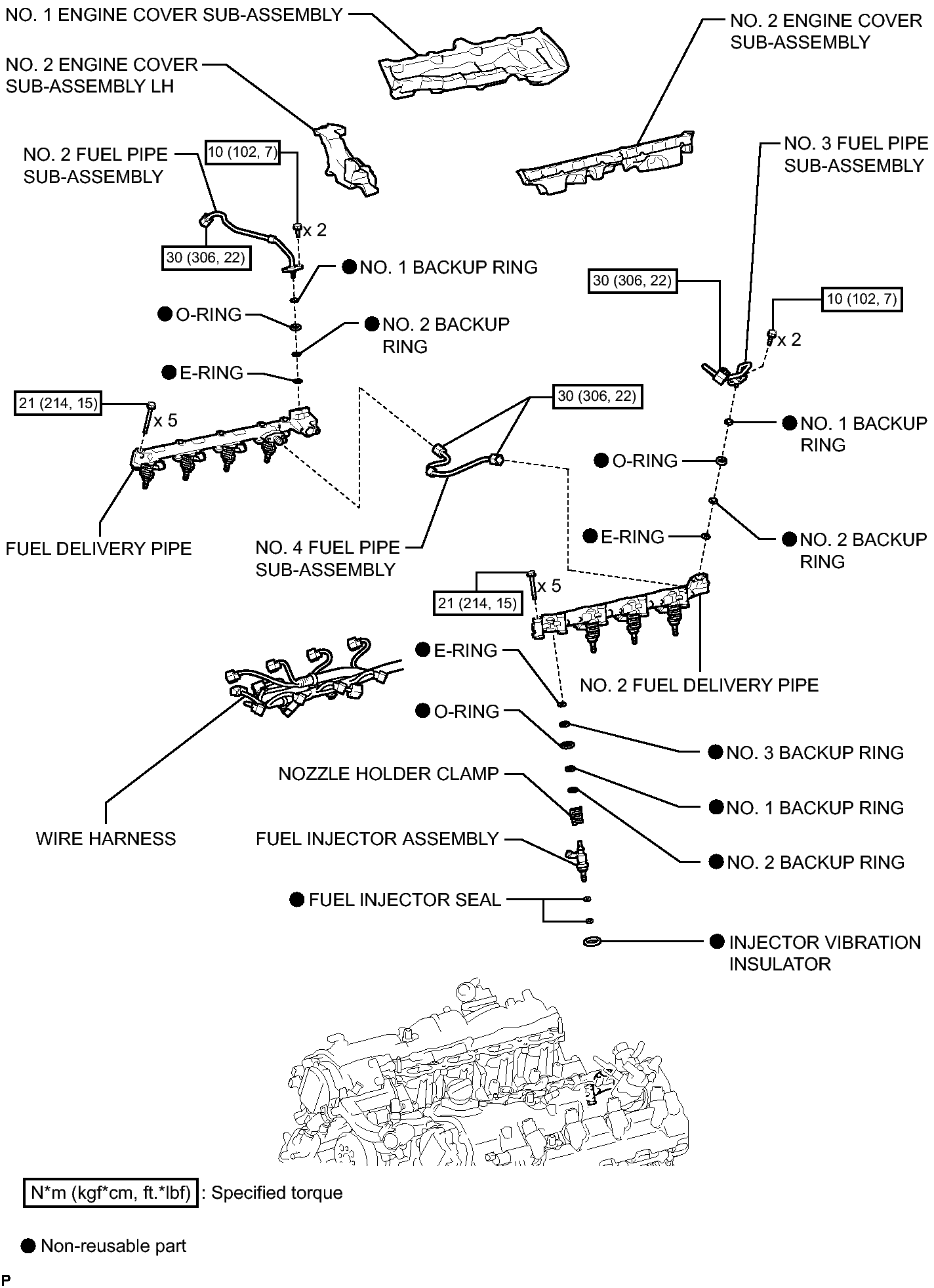

Fig 1: Identifying Fuel Injector (For Direct Injection) Replacement Components With Torque Specifications (2 Of 2)
GTY270467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
