Intake Air Control Valve Actuator: Components: Illustration

Fig 1: Identifying Intake Air Control Valve Actuator Replacement Components With Torque Specifications (1 Of 2)
GTY256740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

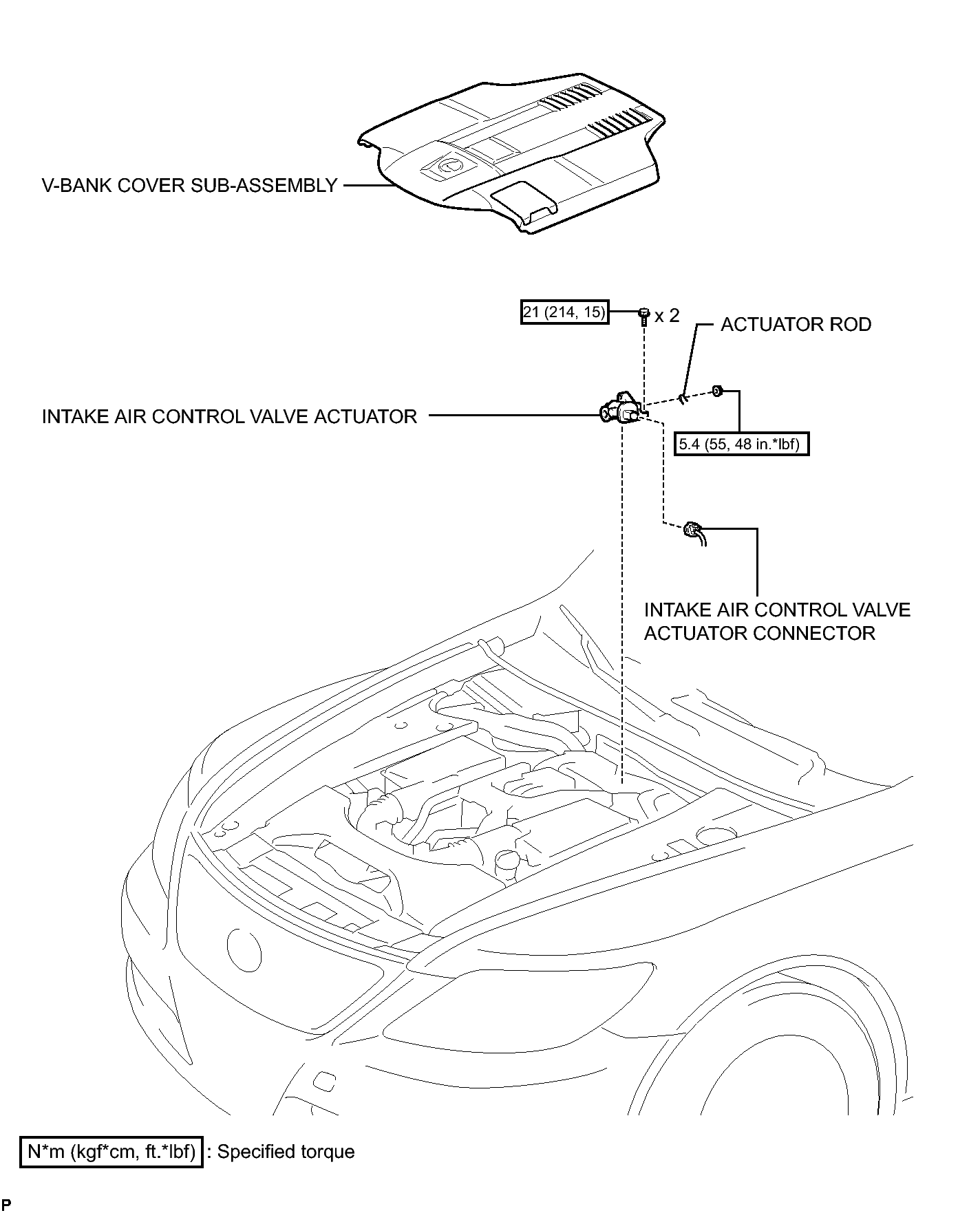

Fig 1: Identifying Intake Air Control Valve Actuator Replacement Components With Torque Specifications (2 Of 2)
GTY147995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
