Charging System (Service Information): Battery: Components: Illustration

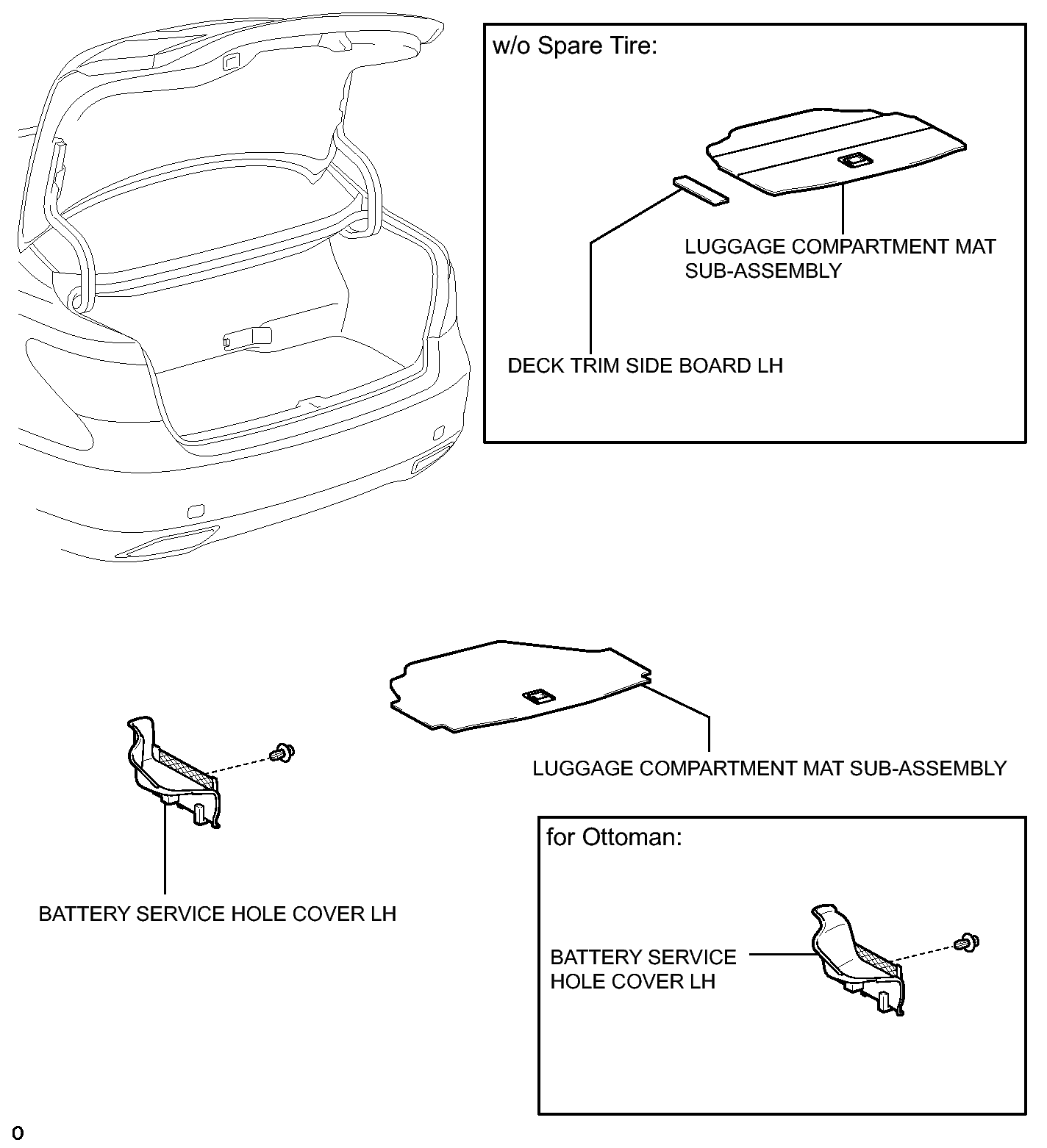

Fig 1: Identifying Battery Replacement Components With Torque Specifications (1 Of 2)
GTY133414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

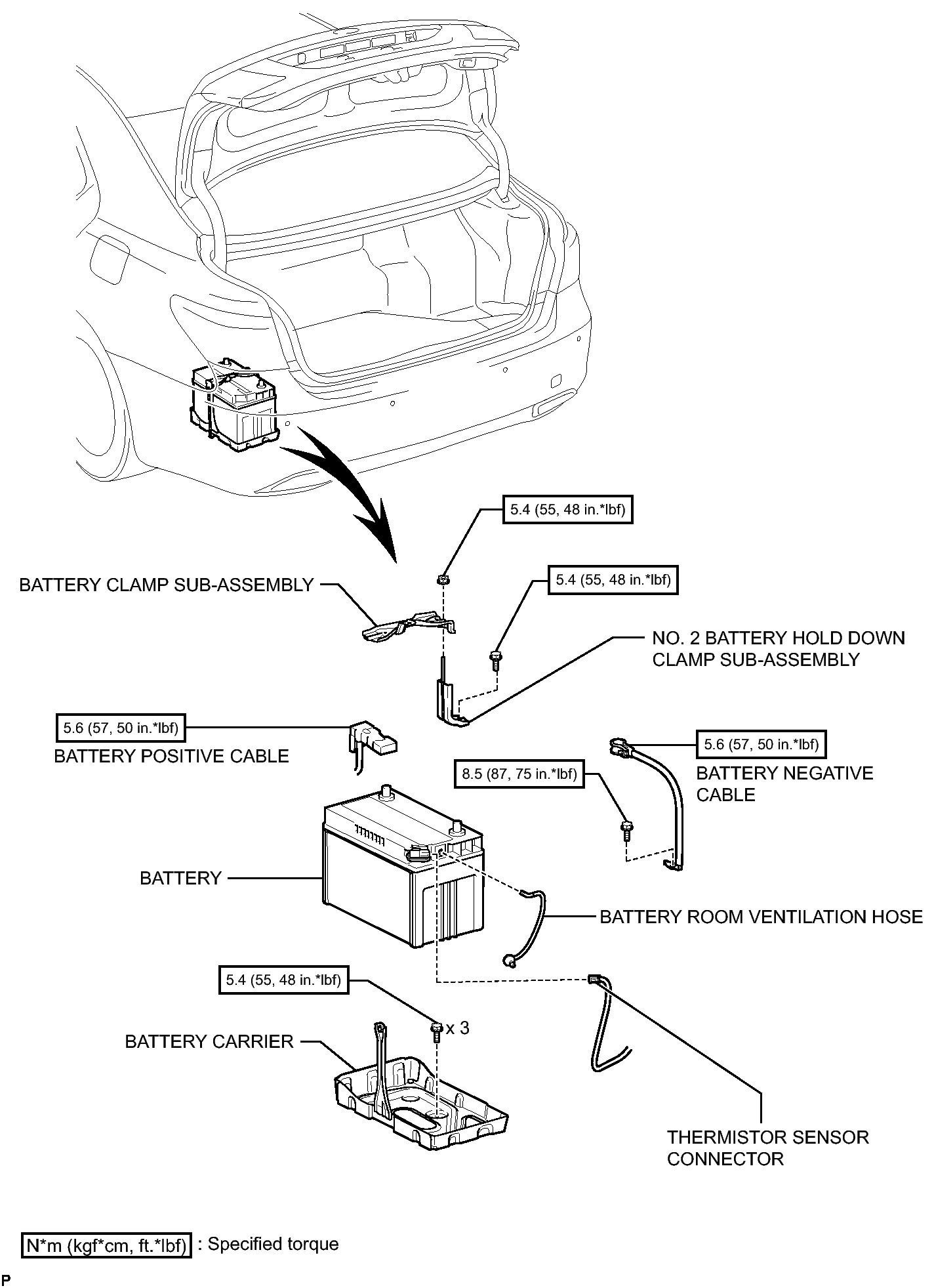

Fig 1: Identifying Battery Replacement Components With Torque Specifications (2 Of 2)
GTY148148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
