Power Source Mode does not Change to ON (READY): Wiring Diagram

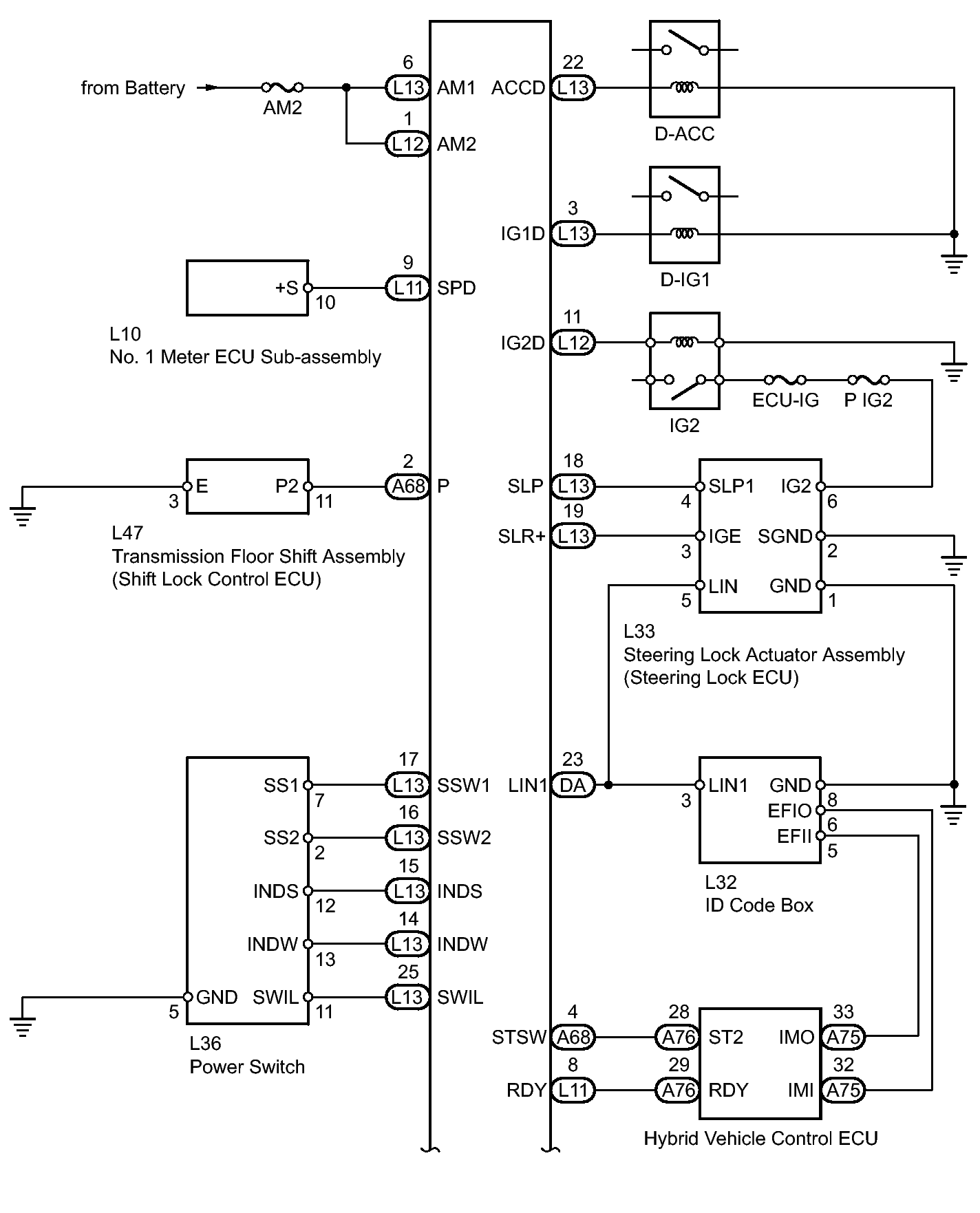

Fig 1: Identifying Power Source Wiring Diagram (1 Of 2)
GTY254981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Power Source Mode - Wiring Diagram (2 Of 2)
GTY109987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
