Front Passenger Side Door Entry Lock and Unlock Functions do not Operate: Wiring Diagram

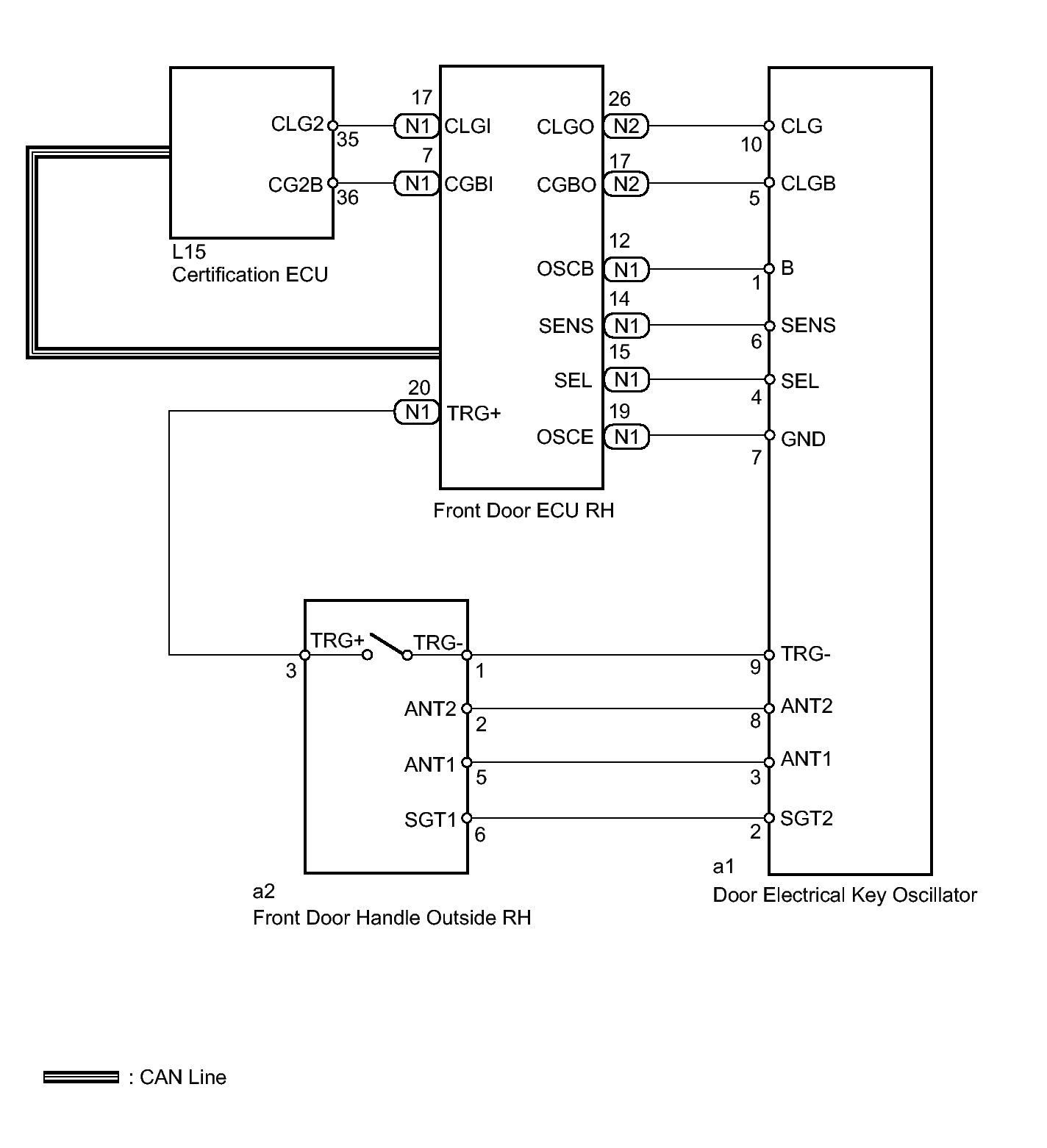

Fig 1: Identifying Front Passenger Side Door Entry Lock and Unlock Functions - Wiring Diagram
GTY116511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
