All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate: Wiring Diagram

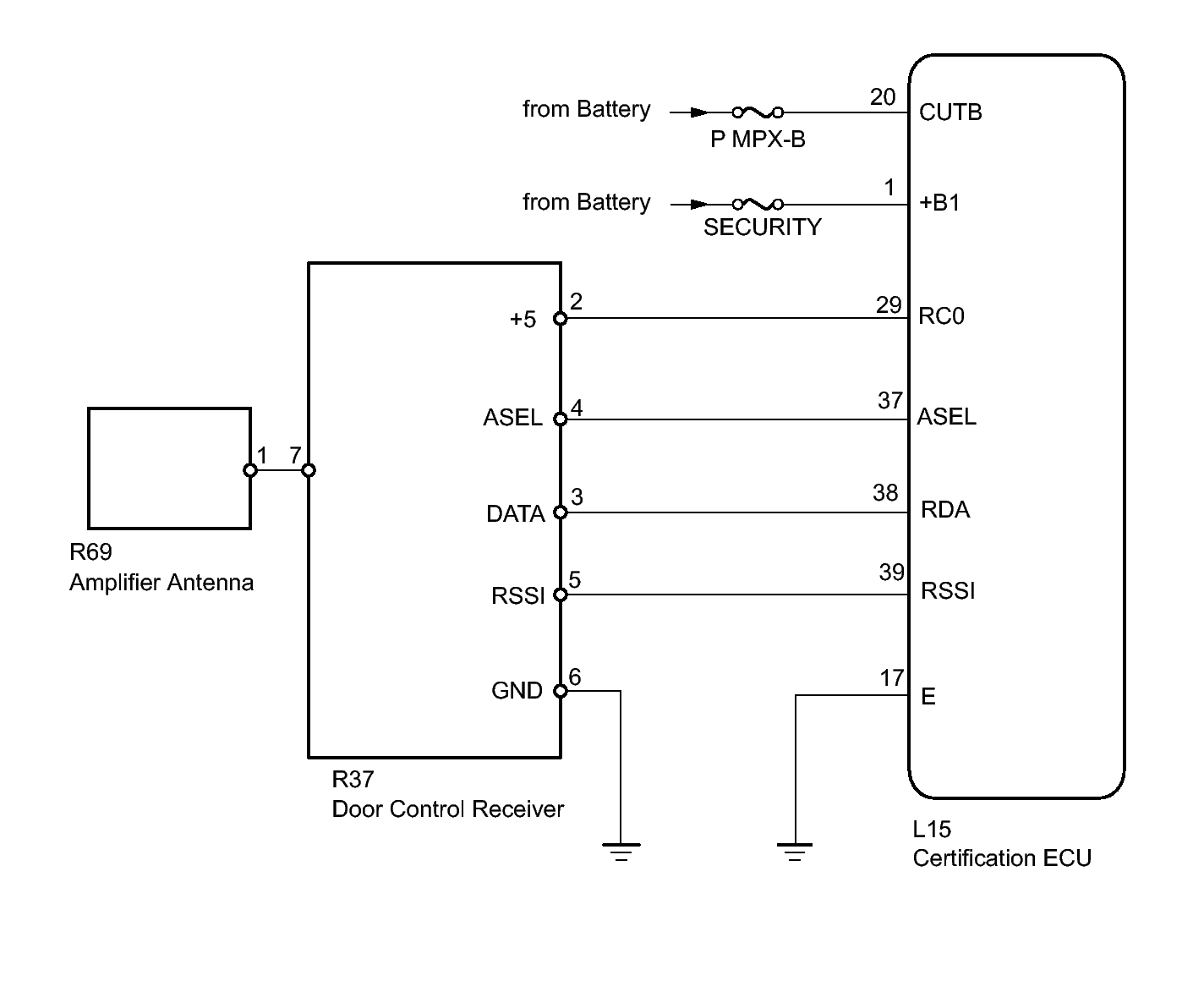

Fig 1: Entry Operation And Wireless Operation Door Lock Function - Wiring Diagram
GTY257648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
