Rear Door RH Entry Lock and Unlock Functions do not Operate: Wiring Diagram

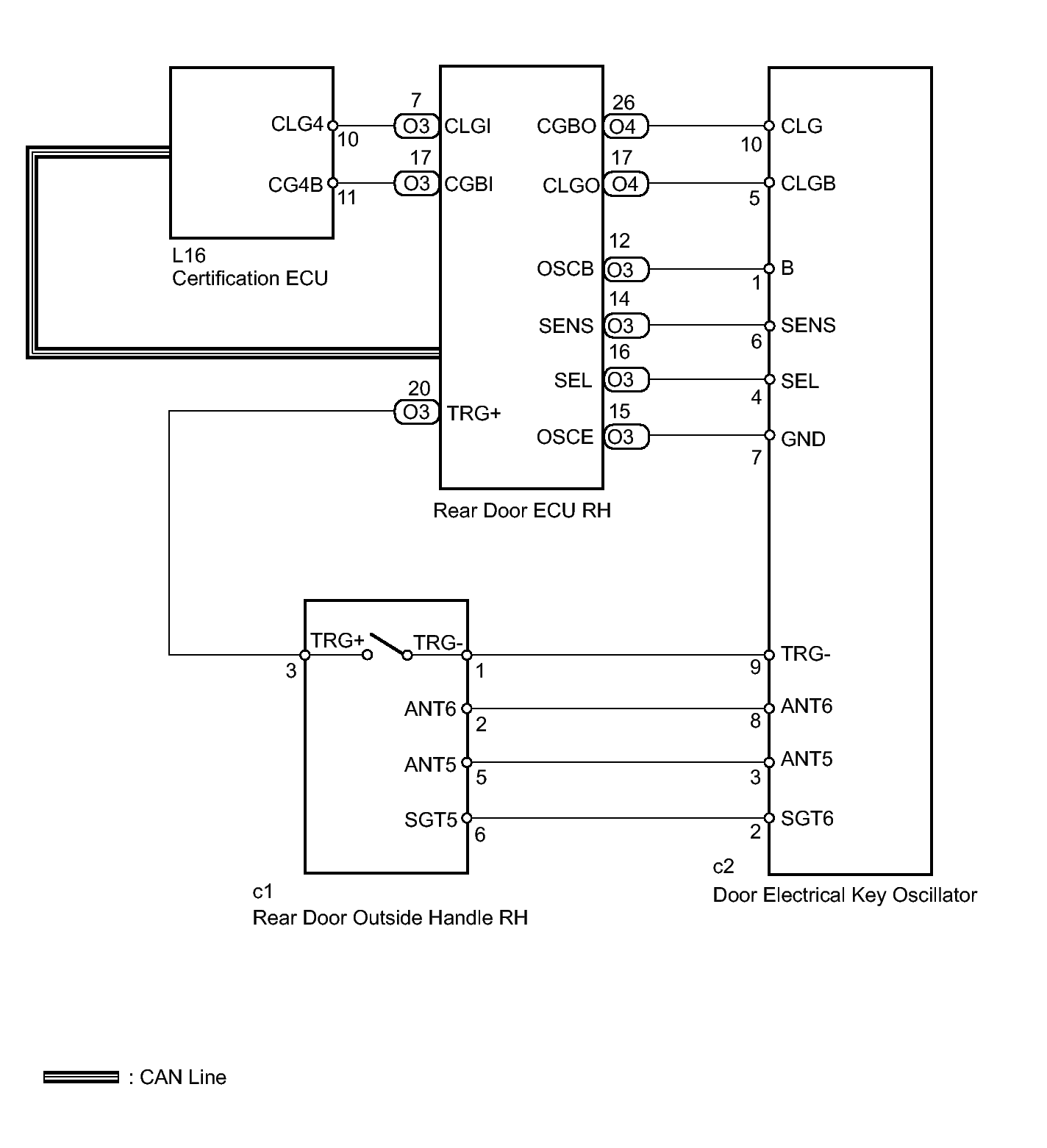

Fig 1: Rear Door RH Entry Lock and Unlock Functions Wiring Diagram

GTY138262

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
