Rear Door LH Entry Lock and Unlock Functions do not Operate: Wiring Diagram

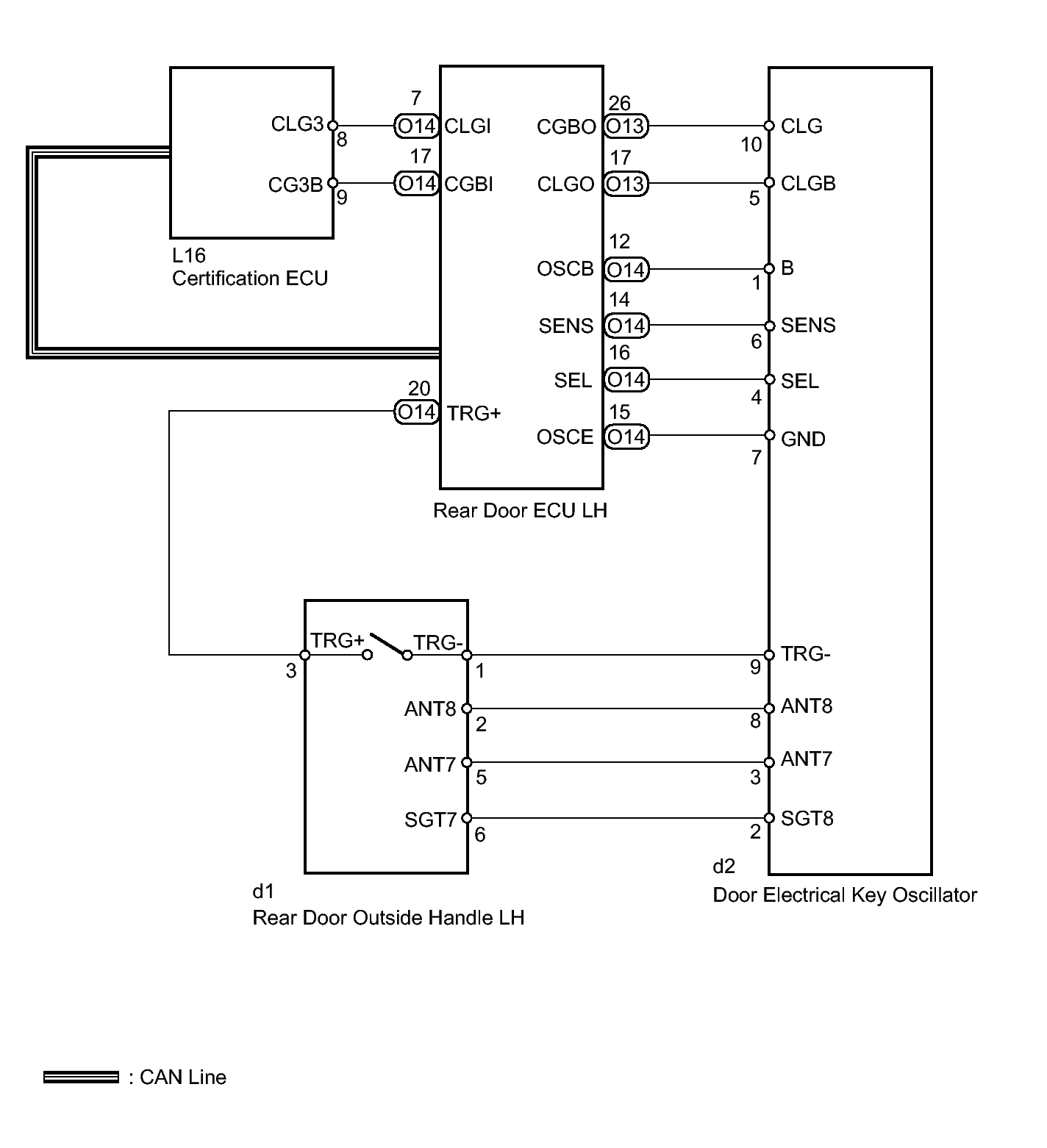

Fig 1: Rear Door Outside Handle LH And Door Electrical Key Oscillator - Wiring Diagram
GTY138256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
