Light Control Rheostat: Installation: Installation

  1. INSTALL LIGHT CONTROL RHEOSTAT
    1. Attach the 2 claws to install the rheostat.

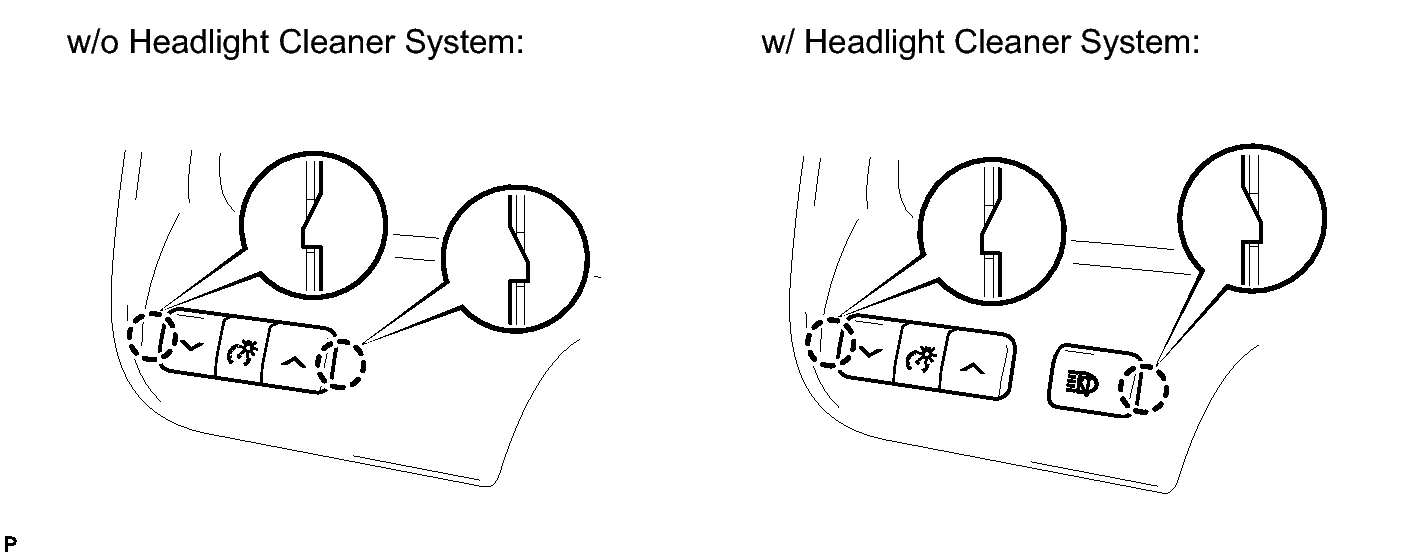

      Fig 1: Identifying Light Control Rheostat Claws
      GTY289577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  See step  2
  3. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY  . Refer to INSTALLATION - Step 1
  4. INSTALL STEERING COLUMN COVER  . Refer to INSTALLATION - Step 2
