FUEL INJECTOR (for Direct Injection): Components: Illustration

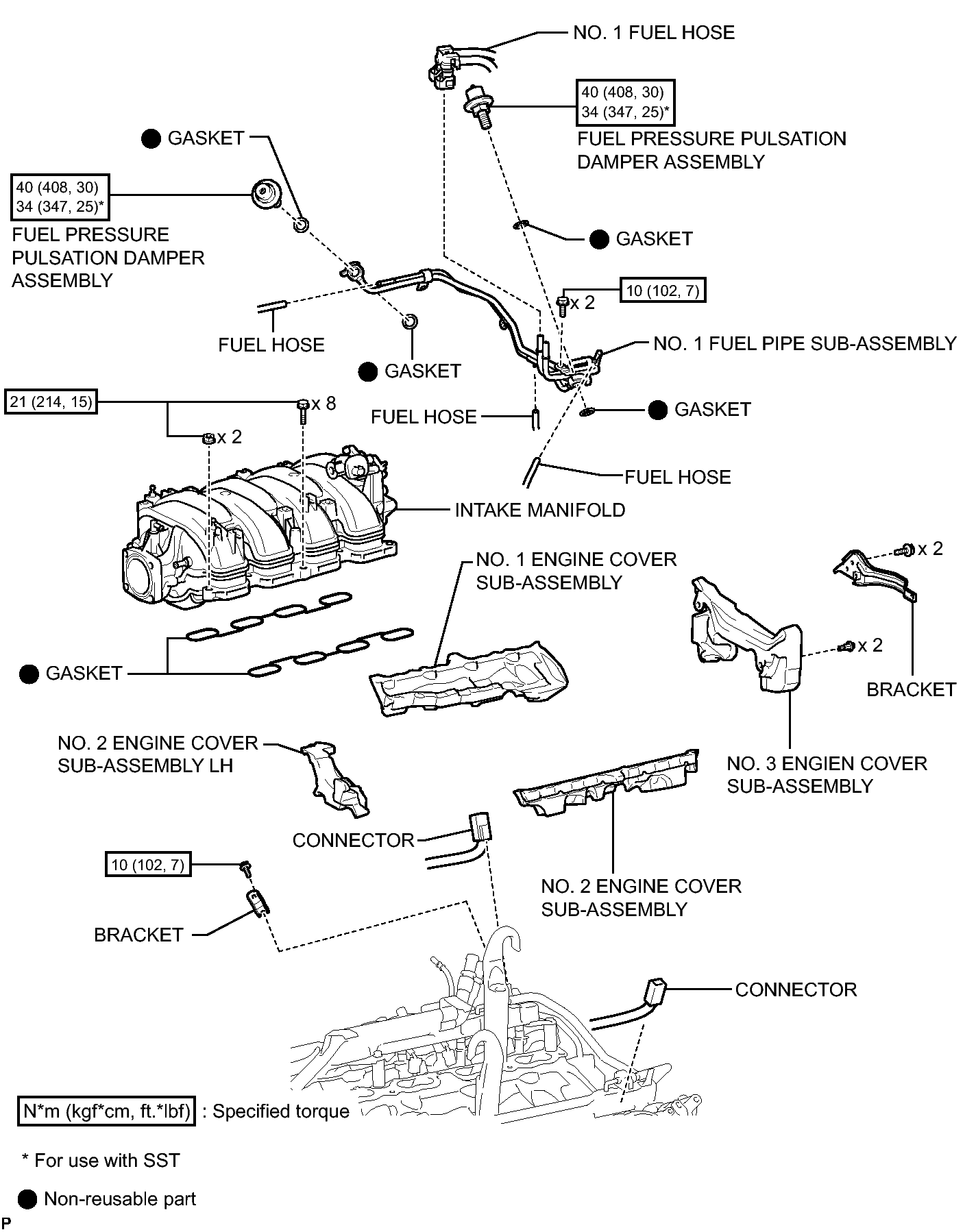

Fig 1: Identifying Fuel Injector (For Direct Injection) Replacement Components With Torque Specifications (1 Of 2)
GTY260844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

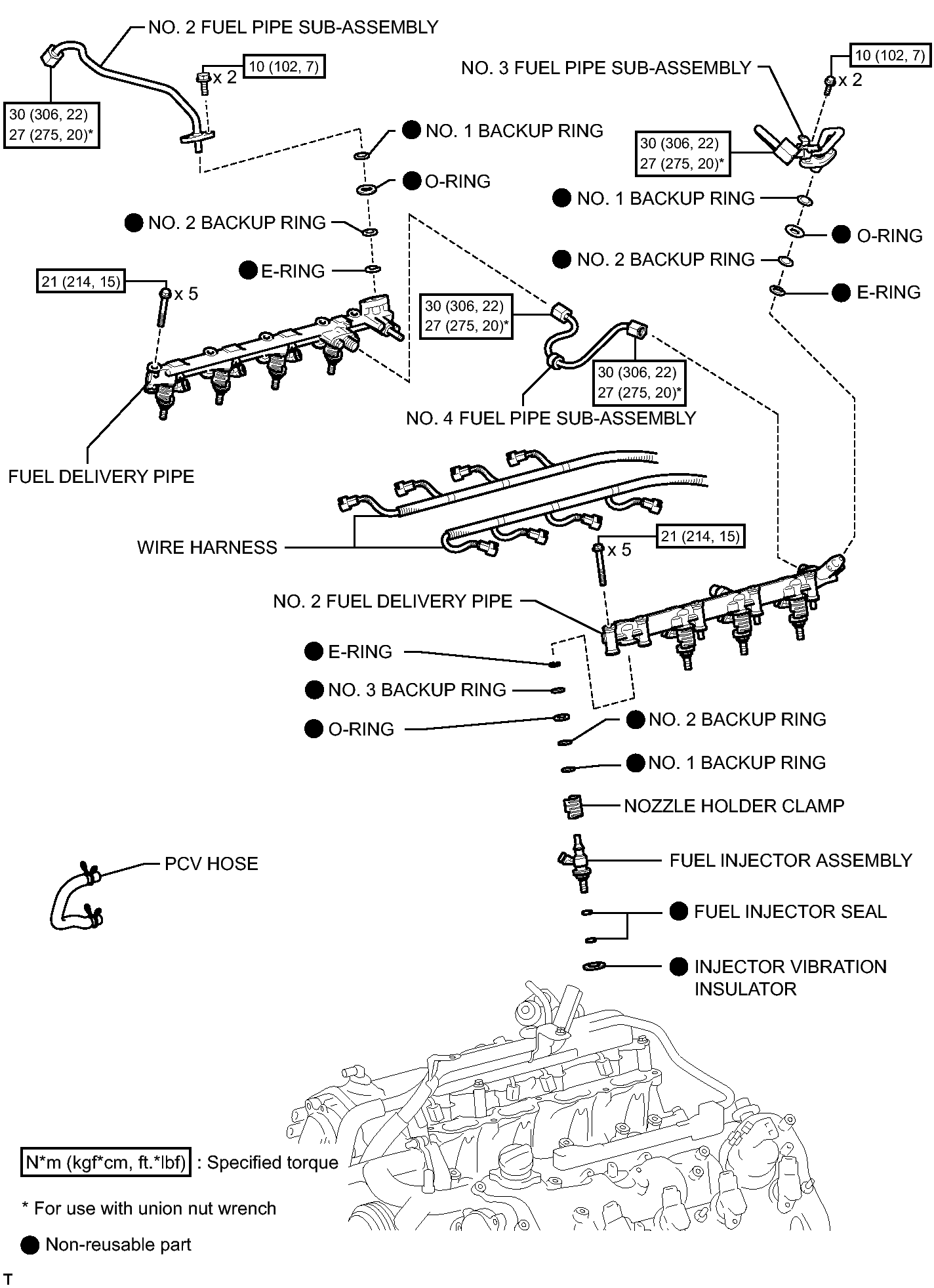

Fig 1: Identifying Fuel Injector (For Direct Injection) Replacement Components With Torque Specifications (2 Of 2)
GTY281847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
