Rear Power Window Switch: Removal: Removal

HINT:

• Use the same procedure for the RH and LH sides.
• The procedure listed below is for the LH side.

1. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

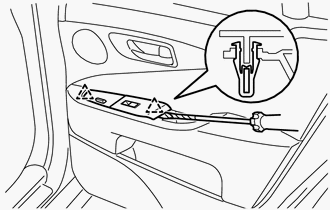

   1. Using a screwdriver, detach the 2 clips.
      Fig 1: Detaching Armrest Base Panel Assembly Clamps

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

   2. Disconnect the connector and remove the armrest base panel assembly.
      Fig 2: Locating Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Detach the 2 claws and remove the power window regulator switch assembly.
      Fig 3: Identifying Power Window Regulator Switch Assembly Claws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
