System Diagram

  1. MOST NETWORK COMMUNICATION LINE

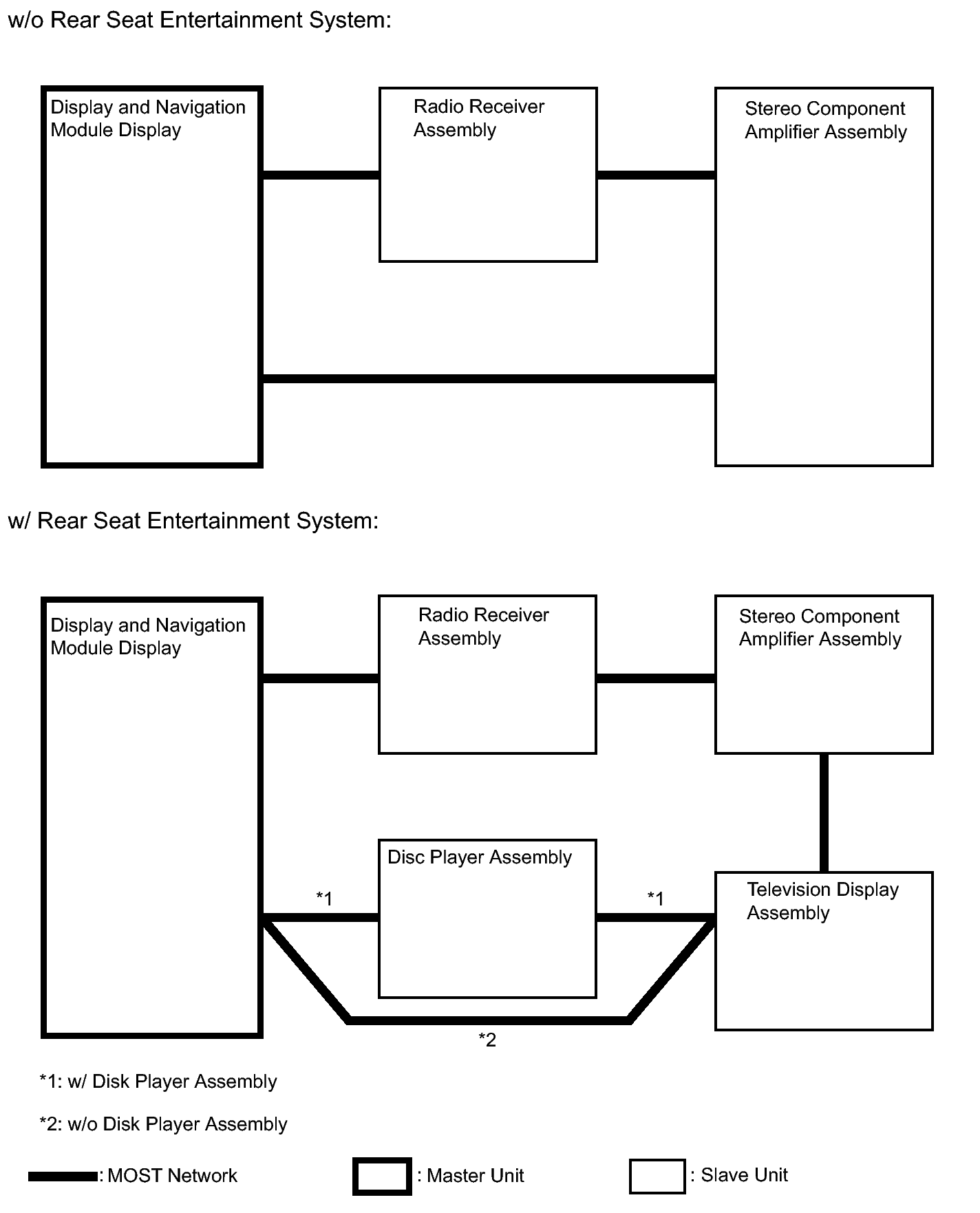

    Fig 1: MOST Network Communication Line - System Diagram
    GTY274649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. AVC-LAN COMMUNICATION LINE

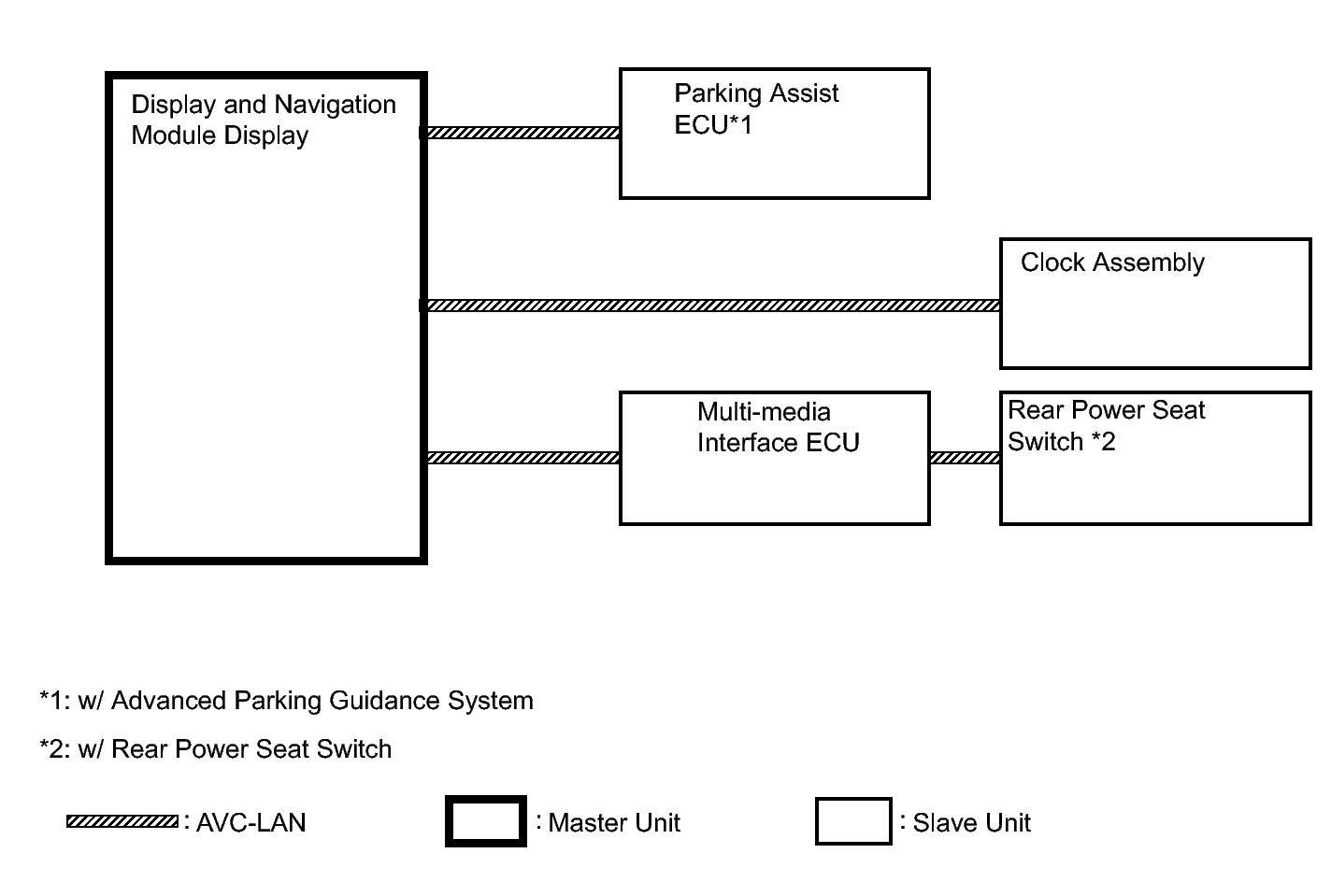

    Fig 2: AVC-LAN Communication Line - System Diagram
    GTY256361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. OTHER
    1. w/ Rear Seat Entertainment System

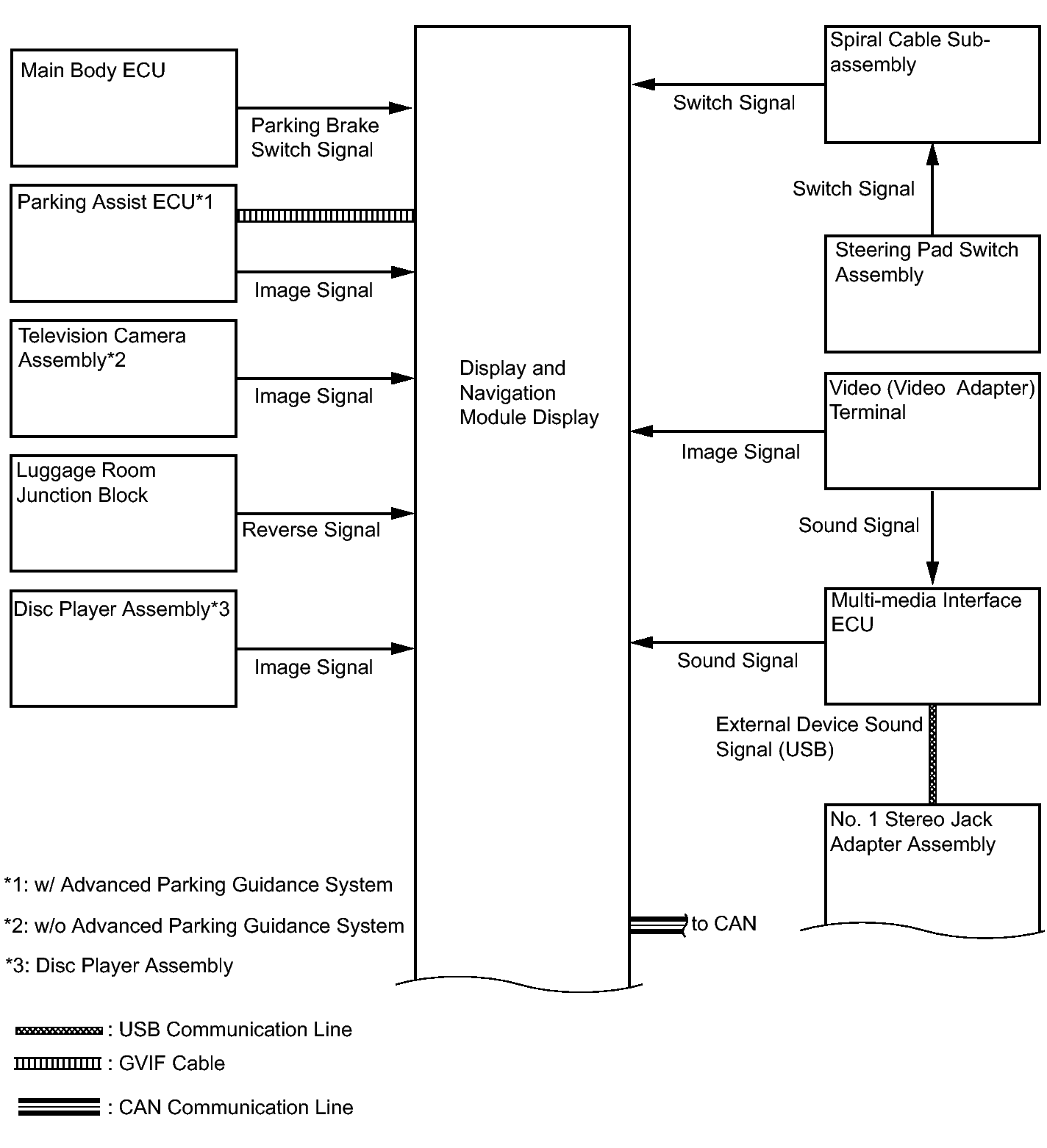

      Fig 3: Communication Line (w/ Rear Seat Entertainment System) - System Diagram (1 Of 2)
      GTY265393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

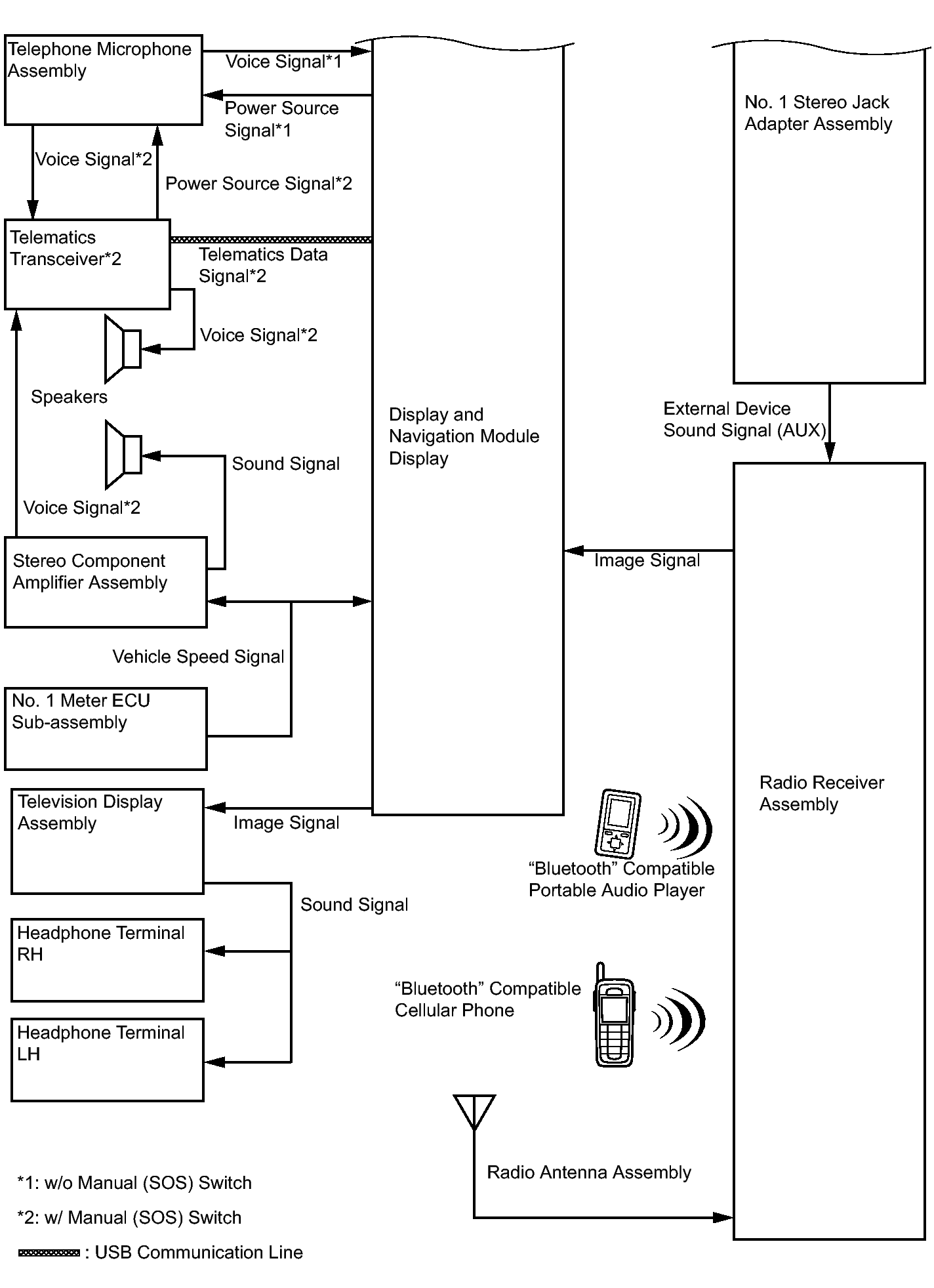

      Fig 4: Communication Line (w/ Rear Seat Entertainment System) - System Diagram (2 Of 2)
      GTY272224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Rear Seat Entertainment System

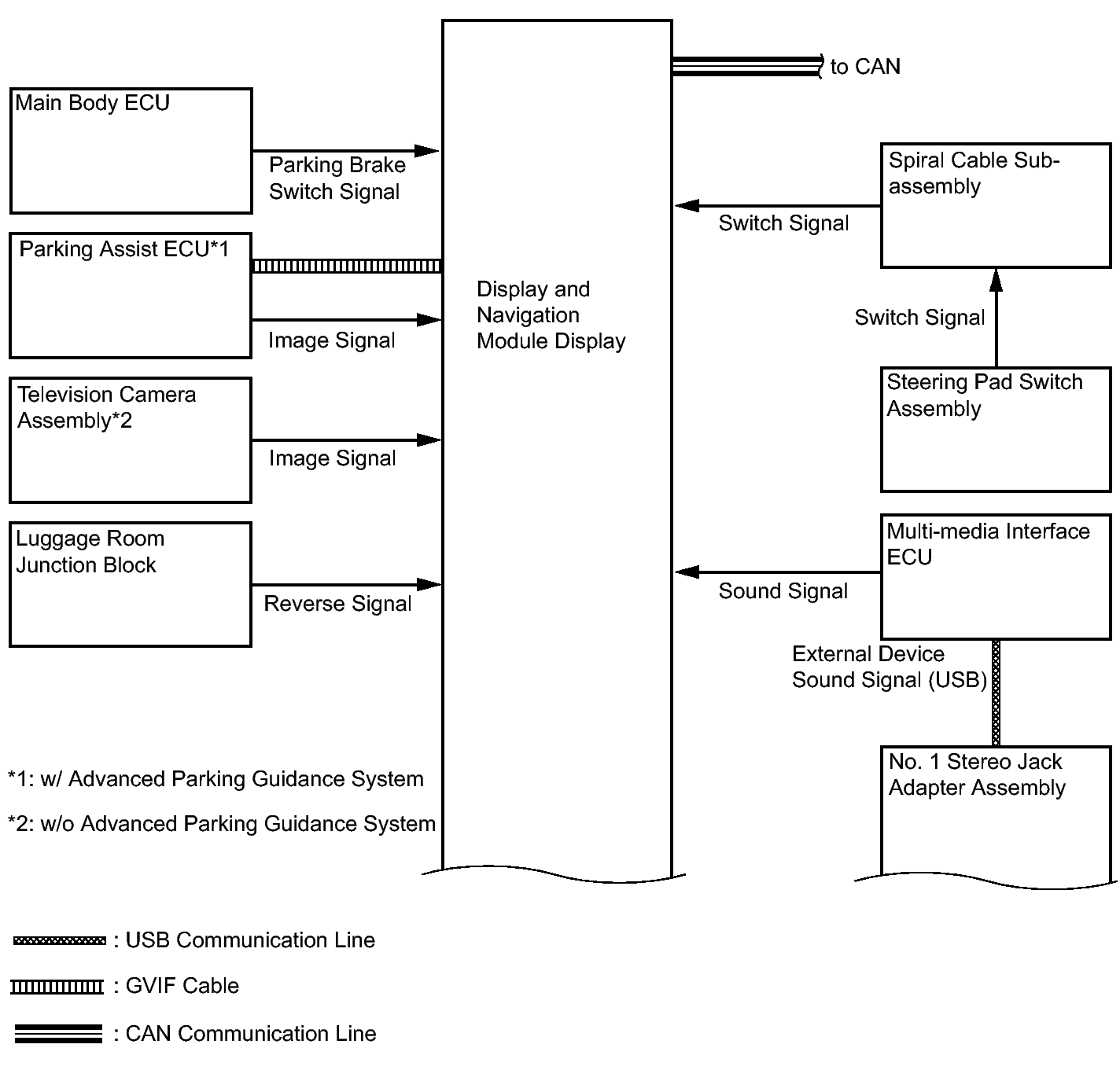

      Fig 5: Communication Line (w/o Rear Seat Entertainment System) - System Diagram (1 Of 2)
      GTY285527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

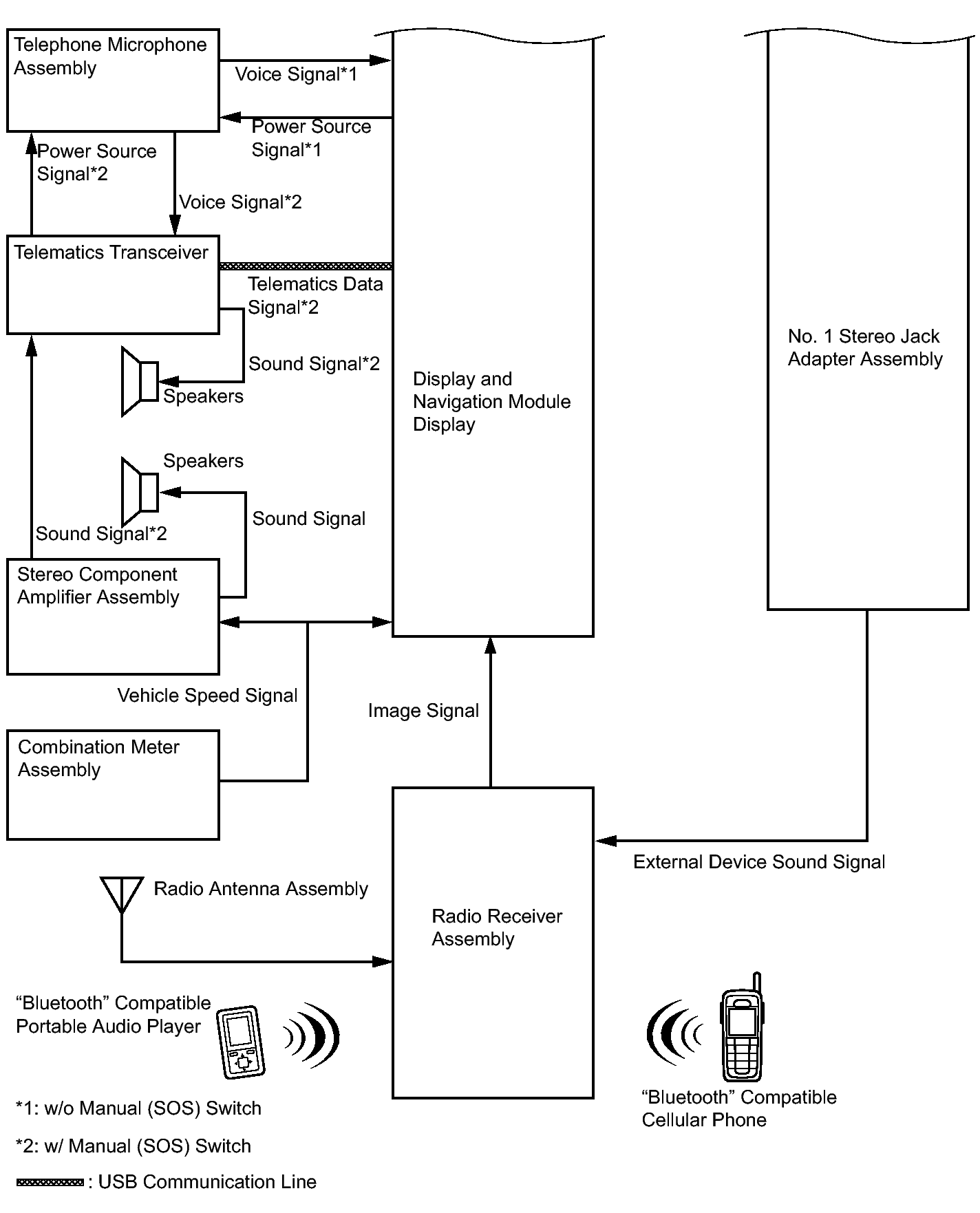

      Fig 6: Communication Line (w/o Rear Seat Entertainment System) - System Diagram (2 Of 2)
      GTY284997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
