Can Communication System (Diagnostic Codes (U0100-U1002))
>>
Can Communication System
>>
DTC U0132: Lost Communication with Ride Level Control Module
>>
Wiring Diagram
DTC U0132: Lost Communication with Ride Level Control Module: Wiring Diagram

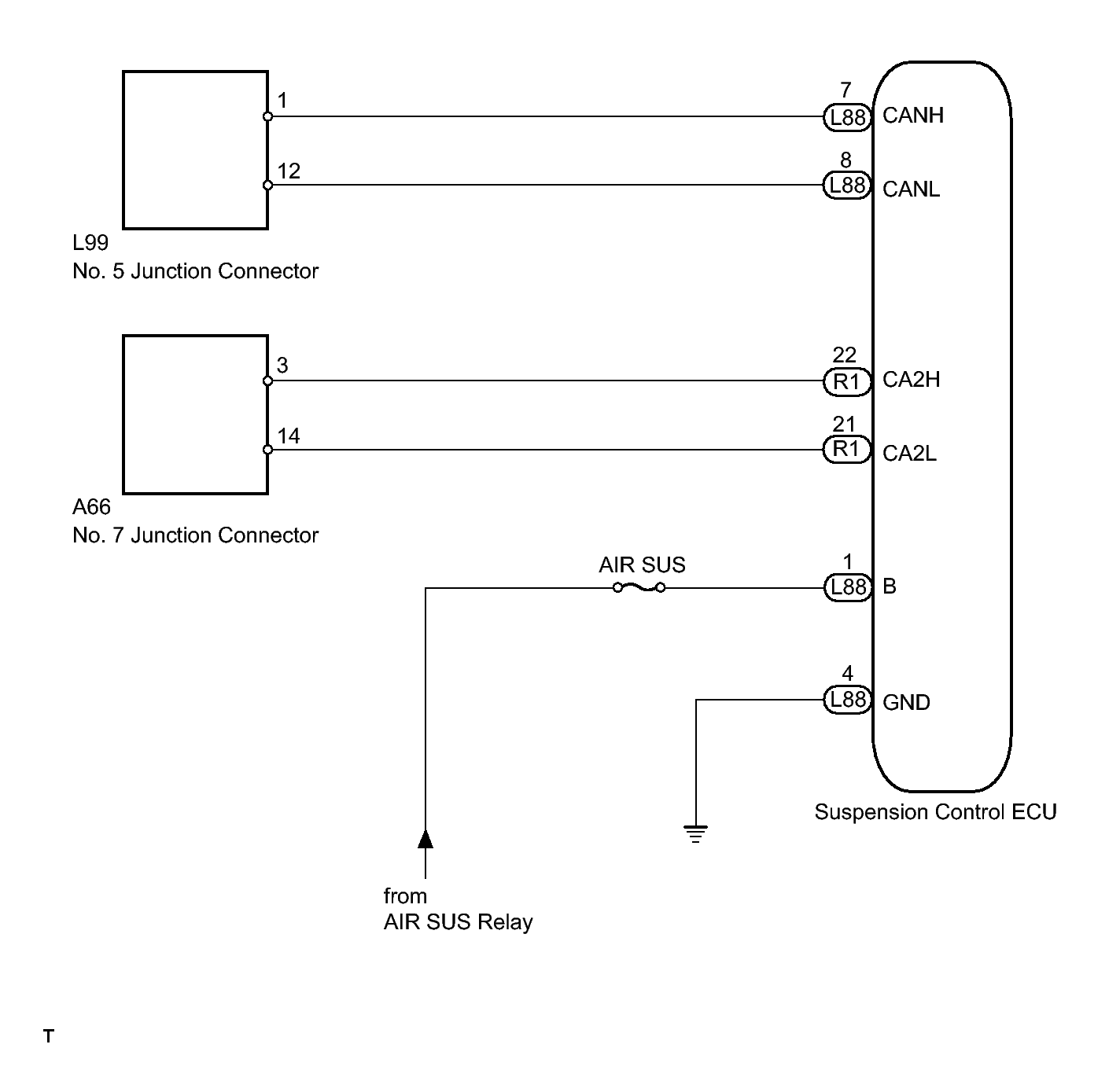

Fig 1: Ride Level Control Module Power Source - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
