System Diagram

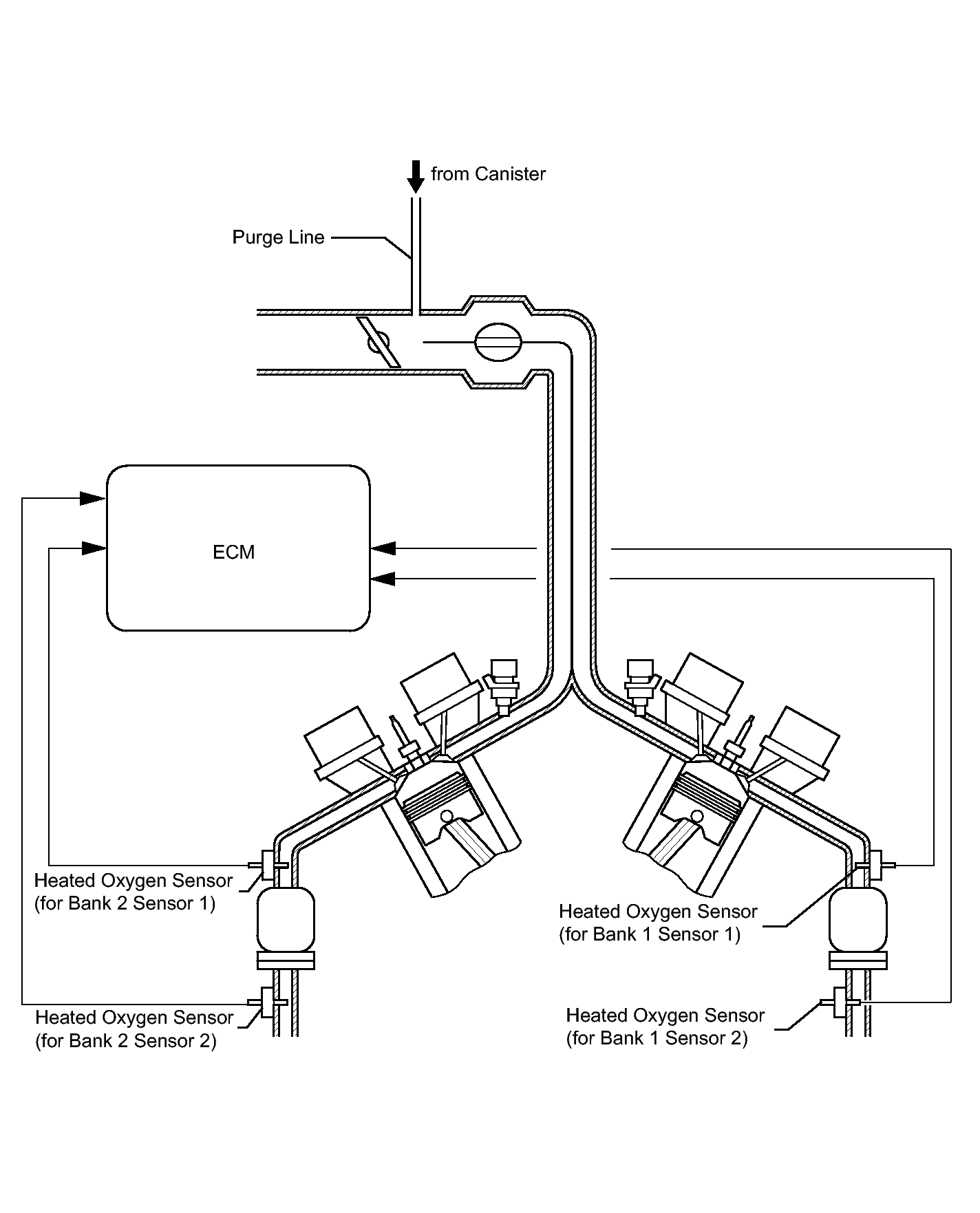

Fig 1: Emission Control - System Diagram (1 Of 2)
GTY255451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

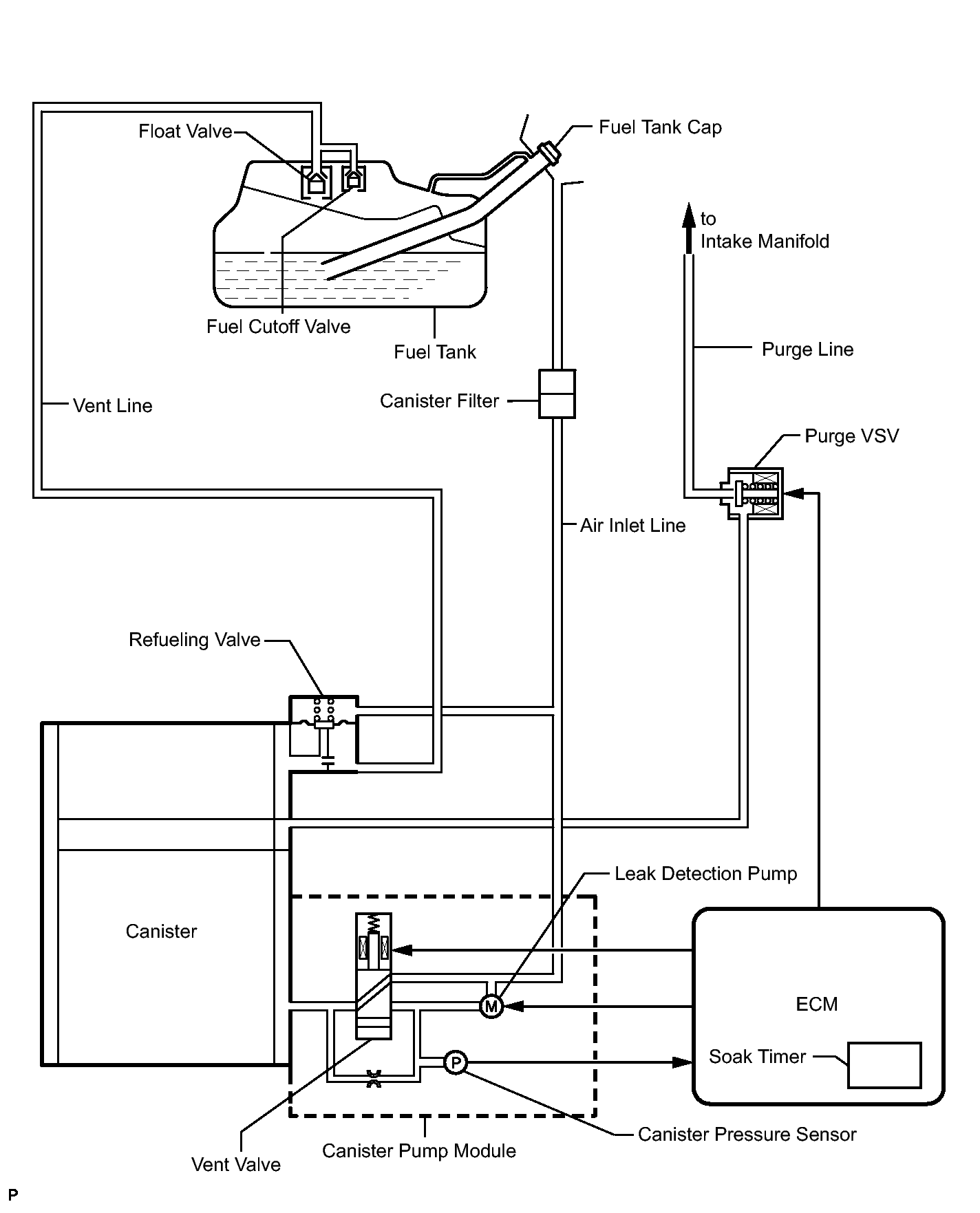

Fig 2: Emission Control - System Diagram (2 Of 2)
GTY279658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

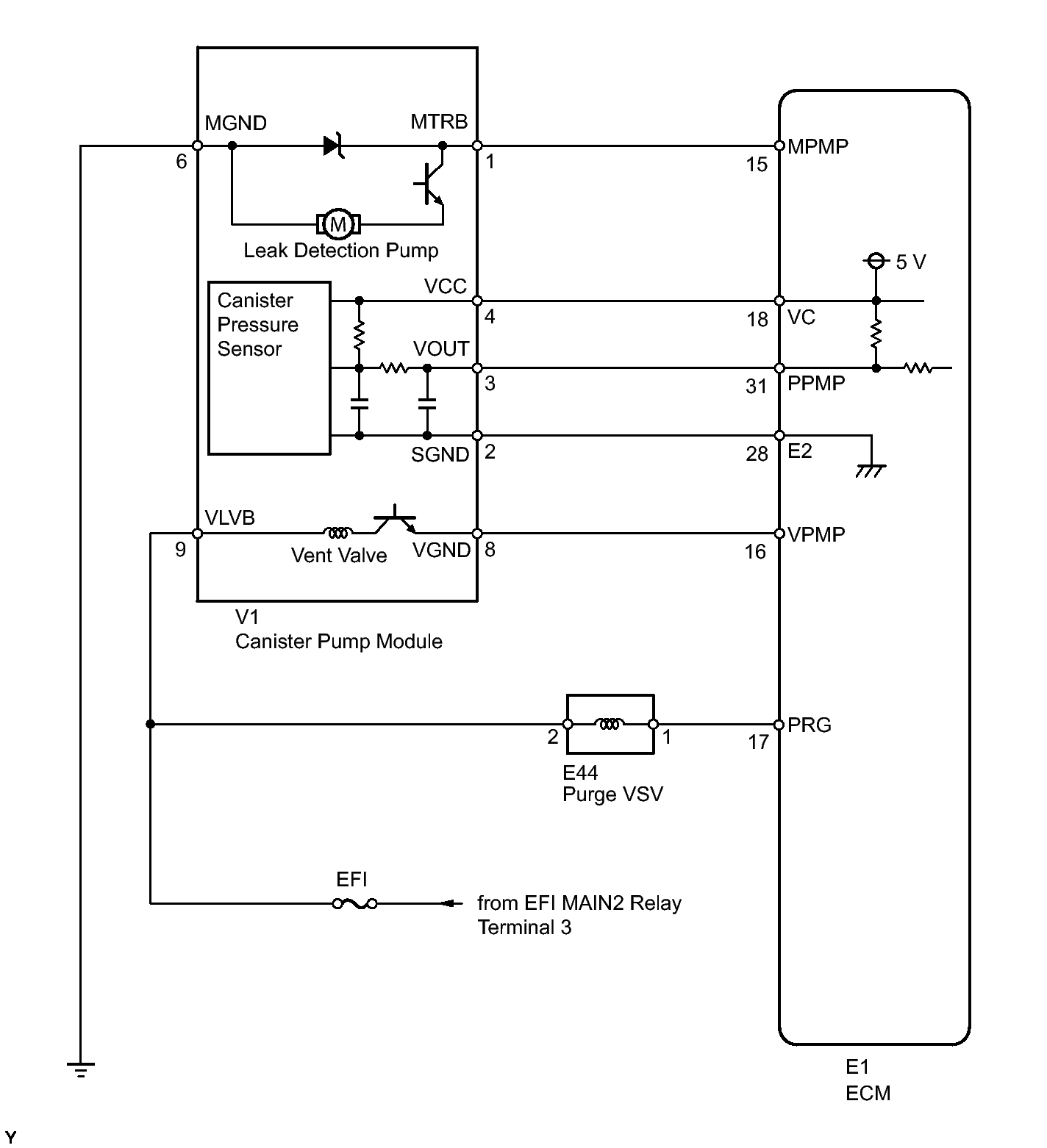

Fig 3: Canister Pump Module Wiring Diagram
GTY351823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
