Brake Actuator: Removal: Removal

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

DRAIN BRAKE FLUID
NOTE:
Wash brake fluid off immediately if it adheres to any painted surface.
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
REMOVE BRAKE ACTUATOR WITH BRACKET
1. Using SST, disconnect the 6 brake tubes from the actuator with bracket.

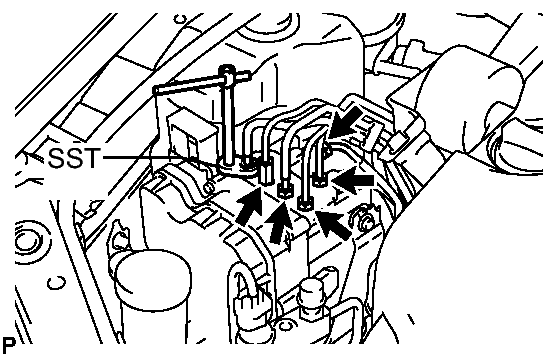

  Fig 1: Disconnecting Brake Tubes From Actuator With SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09023-00101
2. Use tags or make a memo to identify the reconnection points.

  Fig 2: Identifying Tags For Reconnection Points
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Pull the lock lever upward.

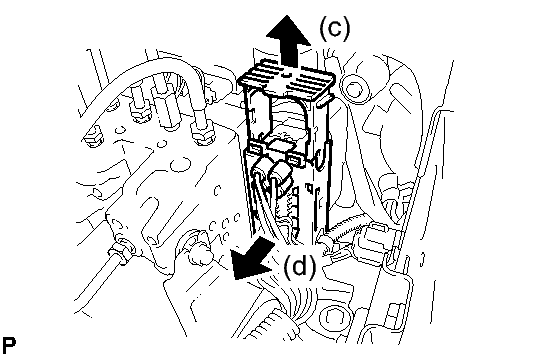

  Fig 3: Disconnecting Actuator Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the actuator connector.
5. Remove the 3 bolts and the actuator with bracket.

  Fig 4: Identifying Actuator With Bracket And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not damage the brake tubes and wire harness.
