Fuel Pressure Pulsation Damper: Components: Illustration

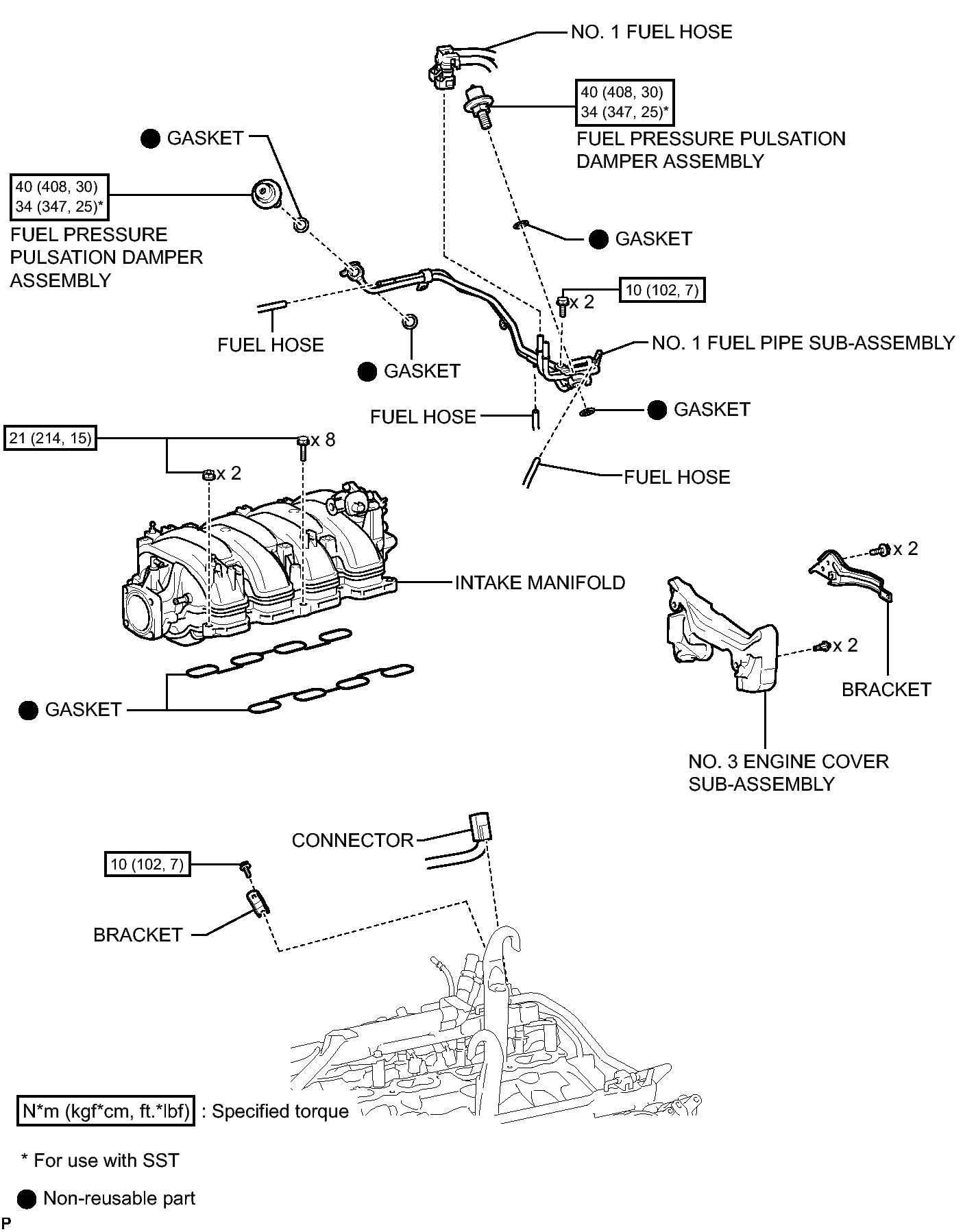

Fig 1: Identifying Fuel Pressure Pulsation Damper Replacement Components With Torque Specifications
GTY276971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
