Windshield Glass: Removal: Removal
- REMOVE COWL TOP VENTILATOR LOUVER RH . Refer to REMOVAL - Step 1

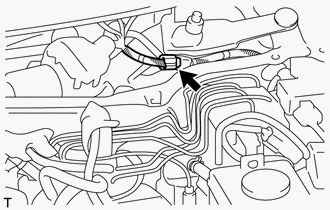

- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
- w/ Navigation System (for HDD):
After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.
Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal
Condition Waiting Time Vehicle enrolled in safety connect system 6 minutes Vehicle not enrolled in safety connect system 1 minute - When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
- w/ Navigation System (for HDD):
- REMOVE FRONT WIPER ARM LH . Refer to REMOVAL - Step 3
- REMOVE FRONT WIPER ARM RH . Refer to REMOVAL - Step 4
- REMOVE FRONT FENDER TO COWL SIDE SEAL LH . Refer to REMOVAL - Step 10
- REMOVE FRONT FENDER TO COWL SIDE SEAL RH . Refer to REMOVAL - Step 8
- REMOVE HOOD TO COWL TOP SEAL . Refer to REMOVAL - Step 9
- REMOVE COWL TOP VENTILATOR LOUVER PROTECTOR LH . Refer to REMOVAL - Step 12
- REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY . Refer to REMOVAL - Step 13
- REMOVE CENTER ROOF DRIP SIDE FINISH MOULDING LH . Refer to REMOVAL - Step 1
- REMOVE CENTER ROOF DRIP SIDE FINISH MOULDING RH
HINT:
Use the same procedure described for the LH side.
- REMOVE NO. 2 WINDSHIELD OUTSIDE MOULDING CLIP . Refer to REMOVAL - Step 2
- REMOVE NO. 1 WINDSHIELD OUTSIDE MOULDING CLIP
HINT:
Use the same procedure described for the No. 2 windshield outside moulding clip.
- REMOVE NO. 2 ROOF DRIP SIDE FINISH MOULDING CLIP . Refer to REMOVAL - Step 3
- REMOVE NO. 3 WINDSHIELD OUTSIDE MOULDING CLIP . Refer to REMOVAL - Step 4
- REMOVE NO. 1 ROOF DRIP SIDE FINISH MOULDING CLIP . Refer to REMOVAL - Step 5
- REMOVE FRONT PILLAR GARNISH LH . Refer to REMOVAL - Step 10
- REMOVE FRONT PILLAR GARNISH RH . Refer to REMOVAL - Step 10
- REMOVE VISOR BRACKET COVER . Refer to REMOVAL - Step 31
- REMOVE VISOR ASSEMBLY LH . Refer to REMOVAL - Step 32
- REMOVE VISOR ASSEMBLY RH . Refer to REMOVAL - Step 33
- REMOVE VISOR HOLDER . Refer to REMOVAL - Step 34
- REMOVE ASSIST GRIP SUB-ASSEMBLY . Refer to REMOVAL - Step 30
- REMOVE MAP LIGHT ASSEMBLY . Refer to REMOVAL - Step 24
- REMOVE RAIN SENSOR COVER (w/o Lane Keeping Assist System) . Refer to REMOVAL - Step 2
- REMOVE RAIN SENSOR COVER (w/ Lane Keeping Assist System) . Refer to REMOVAL - Step 3
- REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/o Automatic High Beam System) . Refer to REMOVAL - Step 4
- REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/ Automatic High Beam System) . Refer to REMOVAL - Step 4
- REMOVE RAIN SENSOR . Refer to INSTALLATION - Step 2
- REMOVE ROOF HEADLINING
- Partially remove the roof headlining.
HINT:
It is not necessary to completely remove the roof headlining. Slightly lower the front section of the roof headlining so that the windshield glass can be removed in a later step.
For Standard Body, refer to the following procedures. Refer to REMOVAL - Step 38 .
For Long Body, refer to the following procedures. Refer to REMOVAL - Step 43 .
- Partially remove the roof headlining.
- REMOVE UPPER WINDSHIELD OUTSIDE MOULDING
- Using a knife, cut off the moulding as shown in the illustration.NOTE:
Be careful not to damage the vehicle body.
- Pull the shaded area shown in the illustration by the hand to remove the windshield outside moulding.
HINT:
Make a partial cut in the moulding. Then pull and remove it by hand.
- Using a knife, cut off the moulding as shown in the illustration.
- REMOVE WINDSHIELD GLASS
- Apply protective tape to the outer surface of the vehicle body to prevent scratches.
- From the interior, insert a piano wire between the vehicle body and glass as shown in the illustration.
- Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.NOTE:
- When separating the glass from the vehicle, be careful not to damage the vehicle's paint or interior / exterior ornaments.
- To prevent the instrument panel from being scratched when removing the glass, place a plastic sheet between the piano wire and instrument panel.
- Place matchmarks over the glass and vehicle body on the locations indicated in the illustration.
HINT:
Matchmarks do not need to be placed if not reusing the glass.
- w/ Windshield Deicer System:
Disconnect the windshield deicer connector.
- Cut through the adhesive by pulling the piano wire around the glass.NOTE:
Leave as much adhesive on the vehicle body as possible when removing the glass.
- Disconnect the stoppers.
- Using suction cups, remove the glass.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- REMOVE NO. 2 WINDSHIELD GLASS STOPPER
- Using a scraper, remove the 2 stoppers.
- REMOVE WINDSHIELD GLASS RETAINER
- Using a scraper, remove the 2 retainers.
- REMOVE WINDSHIELD GLASS ADHESIVE DAM
- Using a scraper, remove the dam.
- REMOVE WINDSHIELD GLASS SEAL
- Using a scraper, remove the seal.
- CLEAN WINDSHIELD GLASS
- Using a scraper, remove the damaged stoppers, dam and adhesive sticking to the glass.
- Clean the outer circumference of the glass with non-residue solvent.NOTE:
- Do not touch the glass surface after cleaning it.
- Be careful not to damage the glass.
- Even if using new glass, clean the glass with non-residue solvent.
- REMOVE NO. 1 WINDSHIELD GLASS STOPPER
- Remove the No. 1 windshield glass stoppers.
- CLEAN VEHICLE BODY
- Clean and shape the contact surface of the vehicle body.
- On the contact surface of the vehicle body, use a knife to cut away excess adhesive as shown in the illustration.NOTE:
Be careful not to damage the vehicle body.
HINT:
Leave as much adhesive on the vehicle body as possible.
- Clean the contact surface of the vehicle body with cleaner.
HINT:
Even if all the adhesive has been removed, clean the vehicle body.
- On the contact surface of the vehicle body, use a knife to cut away excess adhesive as shown in the illustration.
- Clean and shape the contact surface of the vehicle body.
