System Diagram

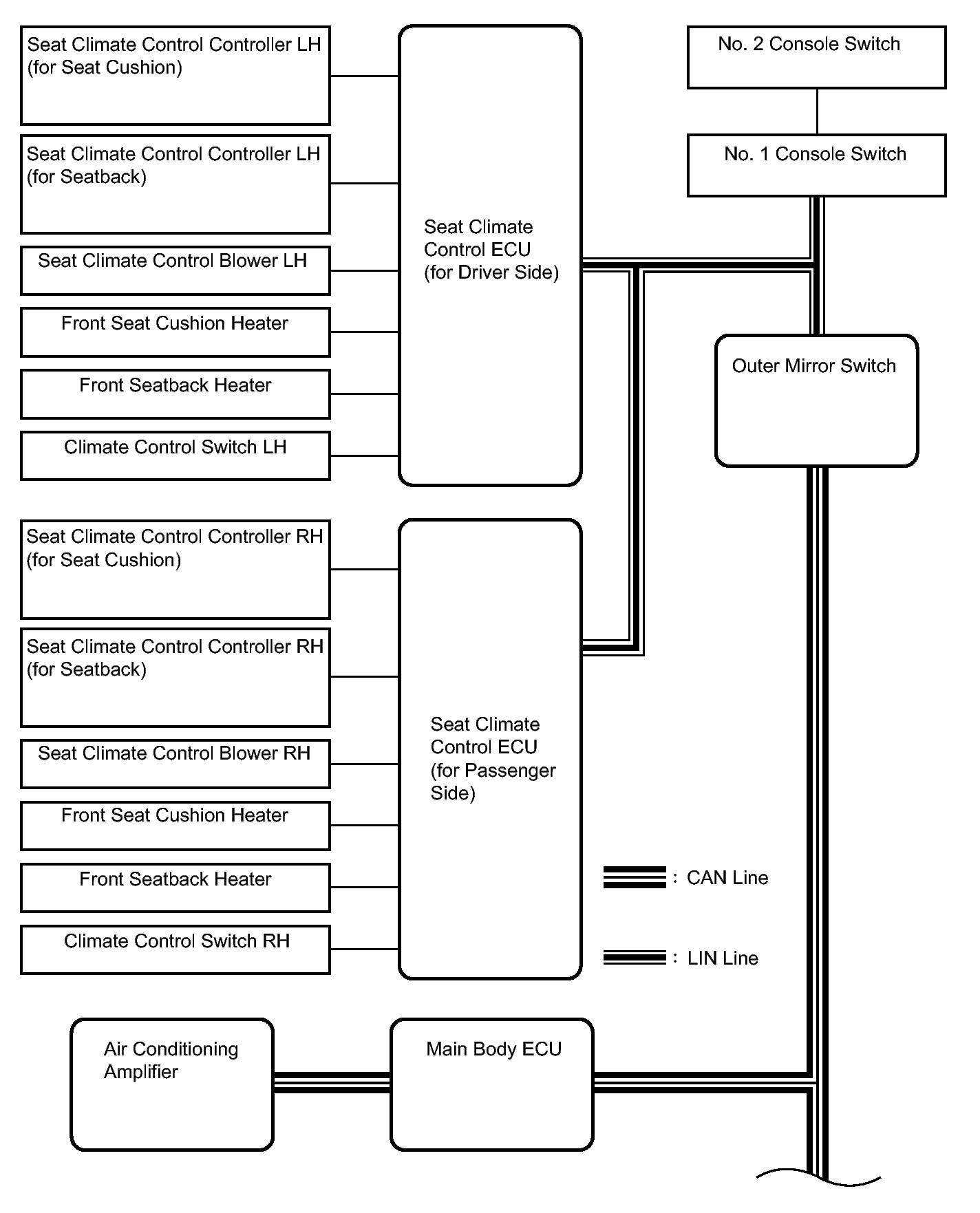

Fig 1: Identifying Climate Control Seat System Diagram (1 Of 2)
GTY279438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

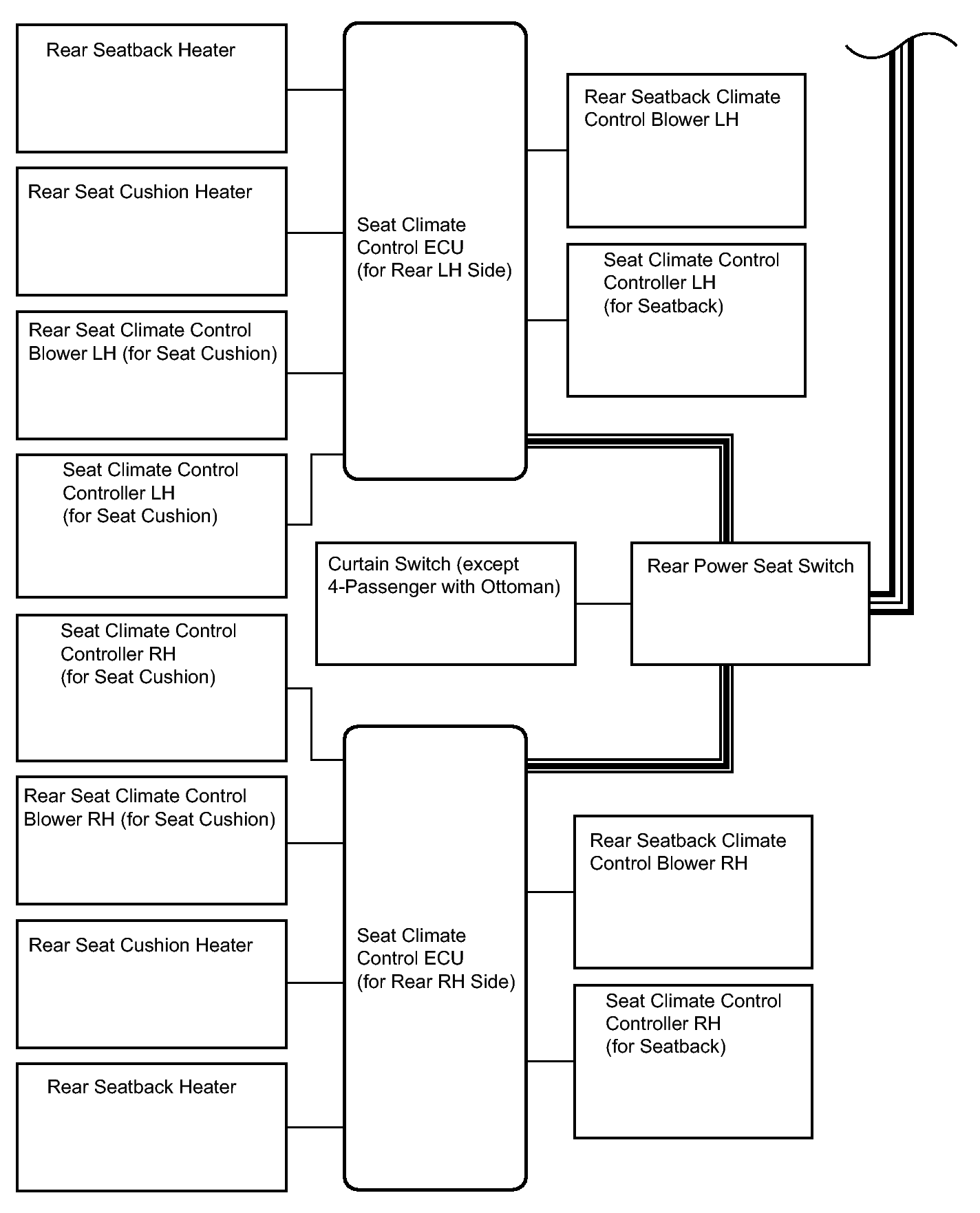

Fig 2: Identifying Climate Control Seat System Diagram (2 Of 2)
GTY256854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
Climate control ECU A/C amplifier A/C signal LIN, CAN
