Microphone Circuit between Microphone and Multi-display: Wiring Diagram

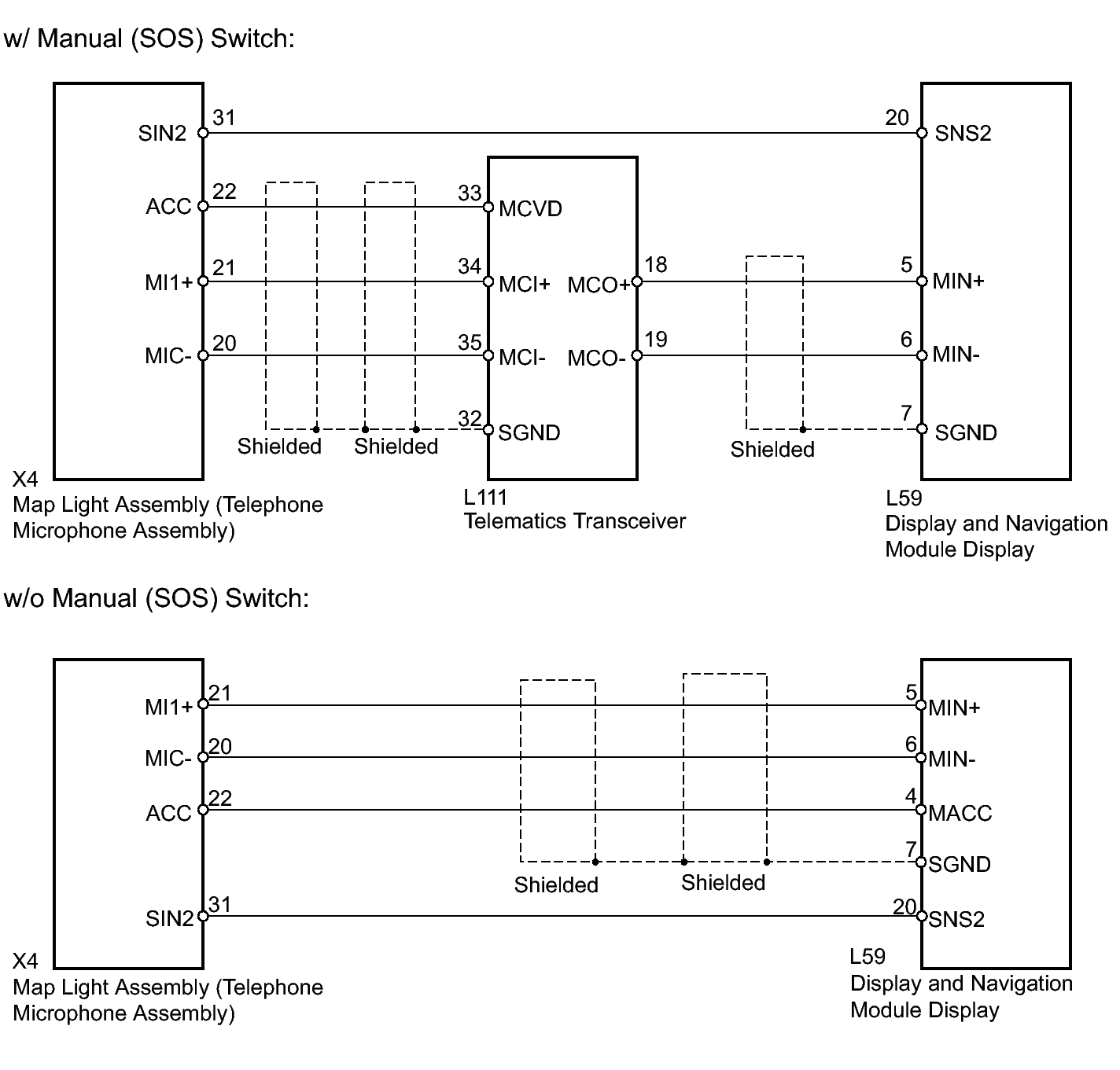

Fig 1: X4 Map Light Assembly (Telephone Microphone Assembly) - Wiring Diagram

GTY256562

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
