DVD Image Signal Circuit between Radio Receiver and Multi-display: Wiring Diagram

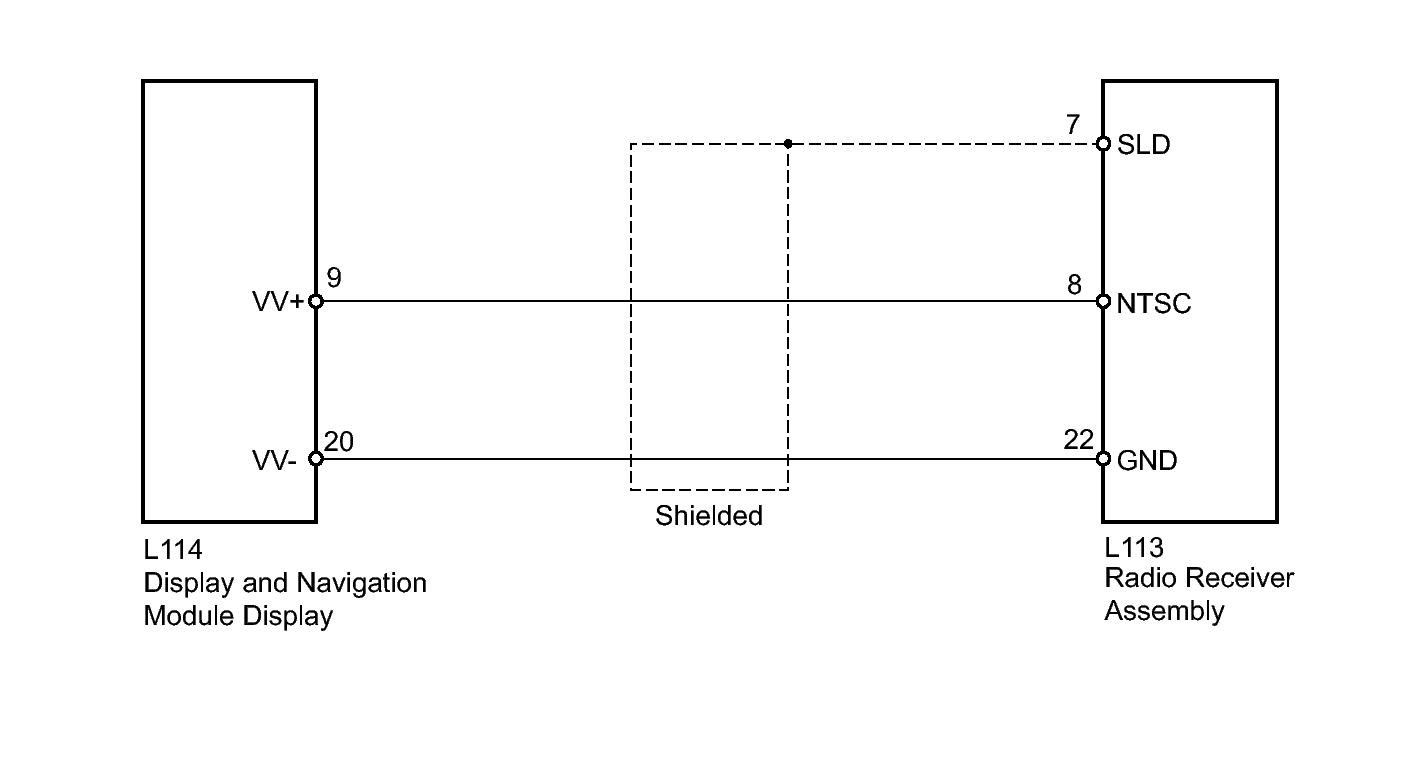

Fig 1: L114 & L113 Display And Navigation Module Display - Wiring Diagram
GTY278764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
