Home >> Lexus >> 2011 >> IS F >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt (Service Information) >> Front Seat Inner Belt Assembly >> Components >> Illustration

Front Seat Inner Belt Assembly: Components: Illustration

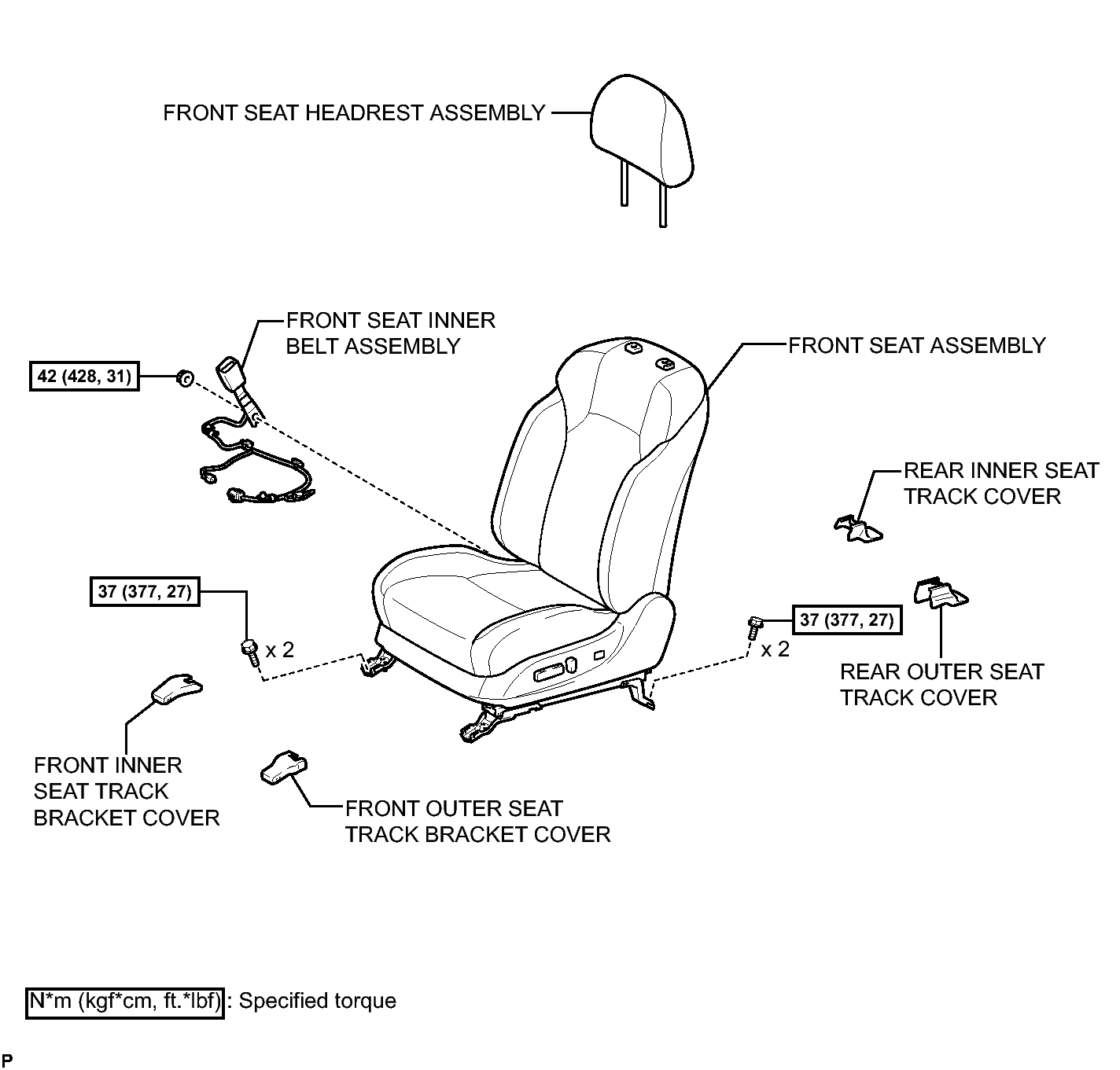

Fig 1: Identifying Front Seat Inner Belt Assembly Replacement Components with Torque Specifications
GTY115365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
