Installation (To 12/2010): Installation

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL BRAKE MASTER CYLINDER SUB-ASSEMBLY
1. Install a new O-ring to the brake master cylinder sub-assembly.
2. Install the brake master cylinder sub-assembly and front brake tube way with the 2 nuts.

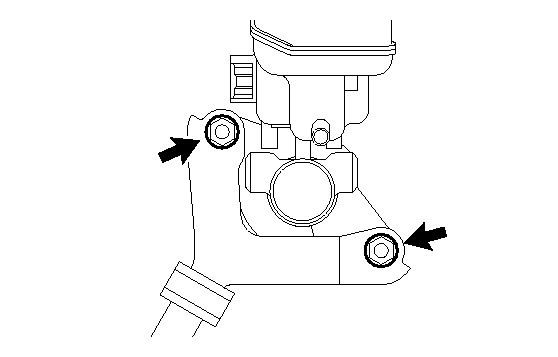

  Fig 1: Locating Brake Master Cylinder Sub-Assembly Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)
3. Install the No. 1 front brake tube to the brake master cylinder sub-assembly.
4. Using a union nut wrench (10 mm), connect the 6 brake lines.

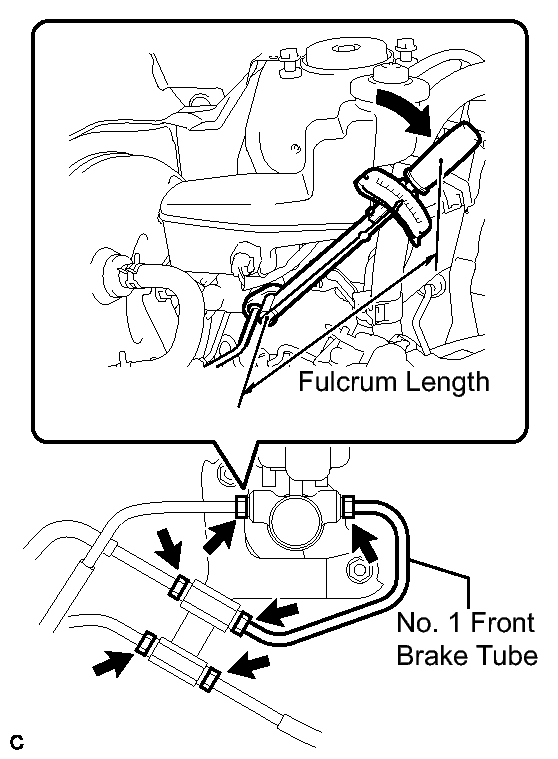

  Fig 2: Locating Brake Line Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  without union nut wrench

  Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)

  with union nut wrench

  Torque: 14 N*m (143 kgf*cm, 11 ft.*lbf)
  NOTE:
  - Use a torque wrench with a fulcrum length of 250 mm (9.84 in.).
  - This torque value is effective when the union nut wrench is parallel to the torque wrench.
5. Connect the connector and engage the clamp.

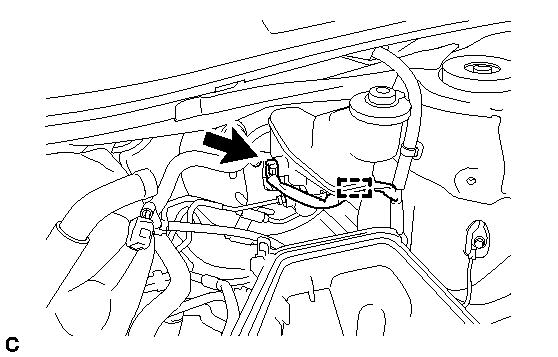

  Fig 3: Locating Brake Master Cylinder Sub-Assembly Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FILL RESERVOIR WITH BRAKE FLUID See step 1
BLEED BRAKE MASTER CYLINDER See step 2
BLEED BRAKE LINE See step 3
BLEED BRAKE ACTUATOR See step 4
INSPECT FOR BRAKE FLUID LEAK
INSPECT FLUID LEVEL IN RESERVOIR See step 6
INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE . Refer to INSTALLATION - Step 4
