Blower Unit: Reassembly: Reassembly

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

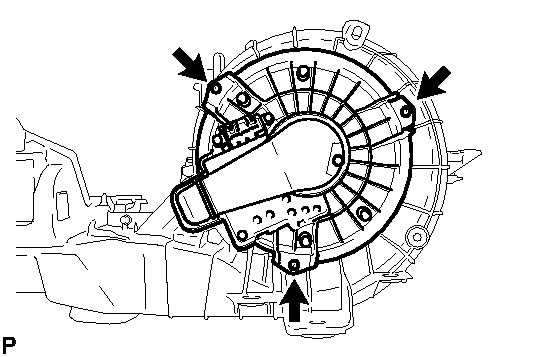

INSTALL COOLING UNIT MOTOR SUB-ASSEMBLY
1. Install the cooling unit motor sub-assembly with the 3 screws.

  Fig 1: Locating Cooling Unit Motor Sub-Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

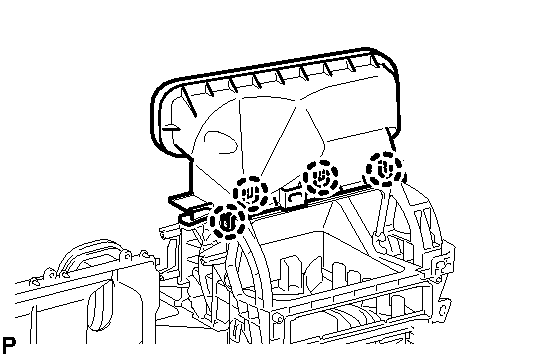

INSTALL NO. 3 AIR DUCT SUB-ASSEMBLY
1. Engage the 4 claws and then install the No. 3 air duct sub-assembly.

  Fig 2: Locating No. 3 Air Duct Sub-Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

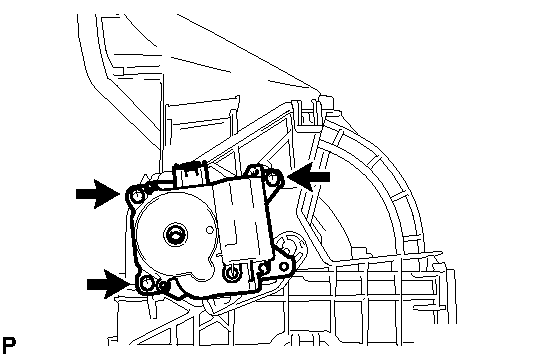

INSTALL AIR INLET SERVO MOTOR
1. Install the air inlet servo motor with the 3 screws.

  Fig 3: Locating Screws And Air Inlet Servo Motor Component
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

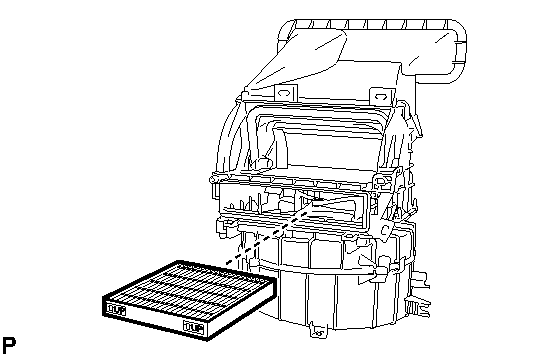

INSTALL CLEAN AIR FILTER
1. Install the clean air filter.

  Fig 4: Identifying Air Filter Component
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

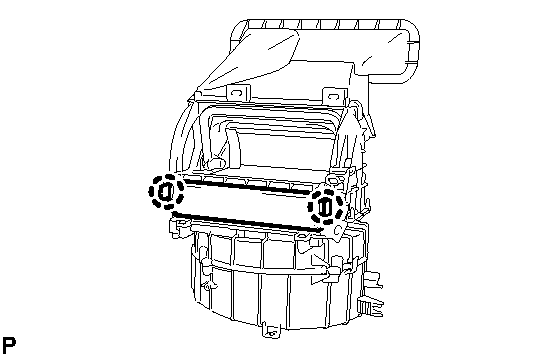

INSTALL AIR FILTER COVER PLATE
1. Engage the 2 claws and install the air filter cover plate.

  Fig 5: Locating Air Filter Cover Plate Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 COOLER THERMISTOR See step 5
INSTALL BLOWER ASSEMBLY
1. Install the 6 screws and blower assembly with the cooler evaporator sub-assembly to the air conditioning radiator assembly.

  Fig 6: Identifying Blower Assembly With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

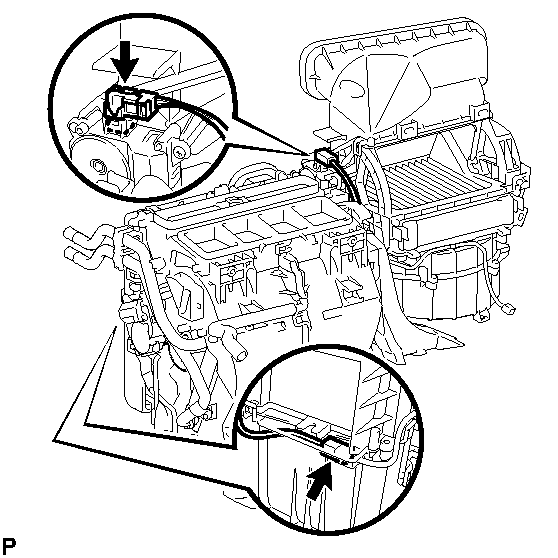

2. Engage the clamp and install the wire harness.

  Fig 7: Locating Blower Assembly Connector And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the connector.
INSTALL COOLER EVAPORATOR SUB-ASSEMBLY See step 7
INSTALL COOLER EXPANSION VALVE See step 9
INSTALL AIR CONDITIONING HARNESS ASSEMBLY See step 10
INSTALL NO. 2 AIR DUCT SUB-ASSEMBLY See step 11
