INSTALL V-RIBBED BELT
1. Install the V-ribbed belt.

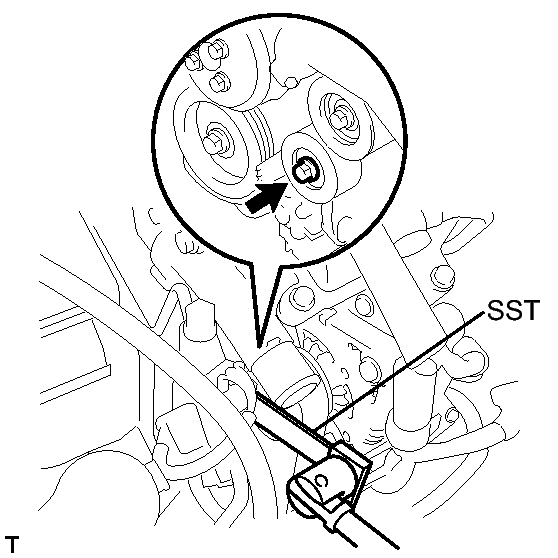

  Fig 1: Remove/Install V-Ribbed Belt Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, turn the belt tensioner counterclockwise and remove the bi-hexagon wrench.
  - SST: 09961-00950
3. If it is difficult to install the V-ribbed belt, perform the following procedure.

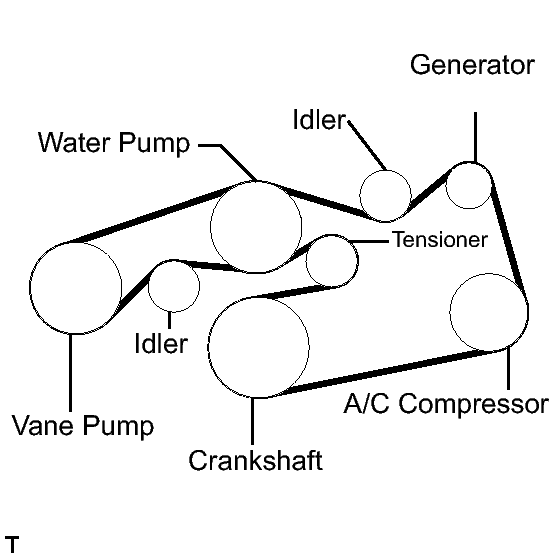

  Fig 2: Drive Belt Routing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Put the V-ribbed belt on everything except the tensioner pulley as shown in the illustration.
  2. While releasing the belt tension by turning the belt tensioner counterclockwise, put the V-ribbed belt on the tensioner pulleys.
    NOTE:
    Put the backside of the V-ribbed belt on the tensioner pulley and idler pulley.

    Check that the V-ribbed belt is properly set to each pulley.
INSTALL V-BANK COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 14
INSTALL FRONT FENDER APRON SEAL RH
INSTALL FRONT WHEEL RH
Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
