System Diagram

  1. w/ Occupant Classification System

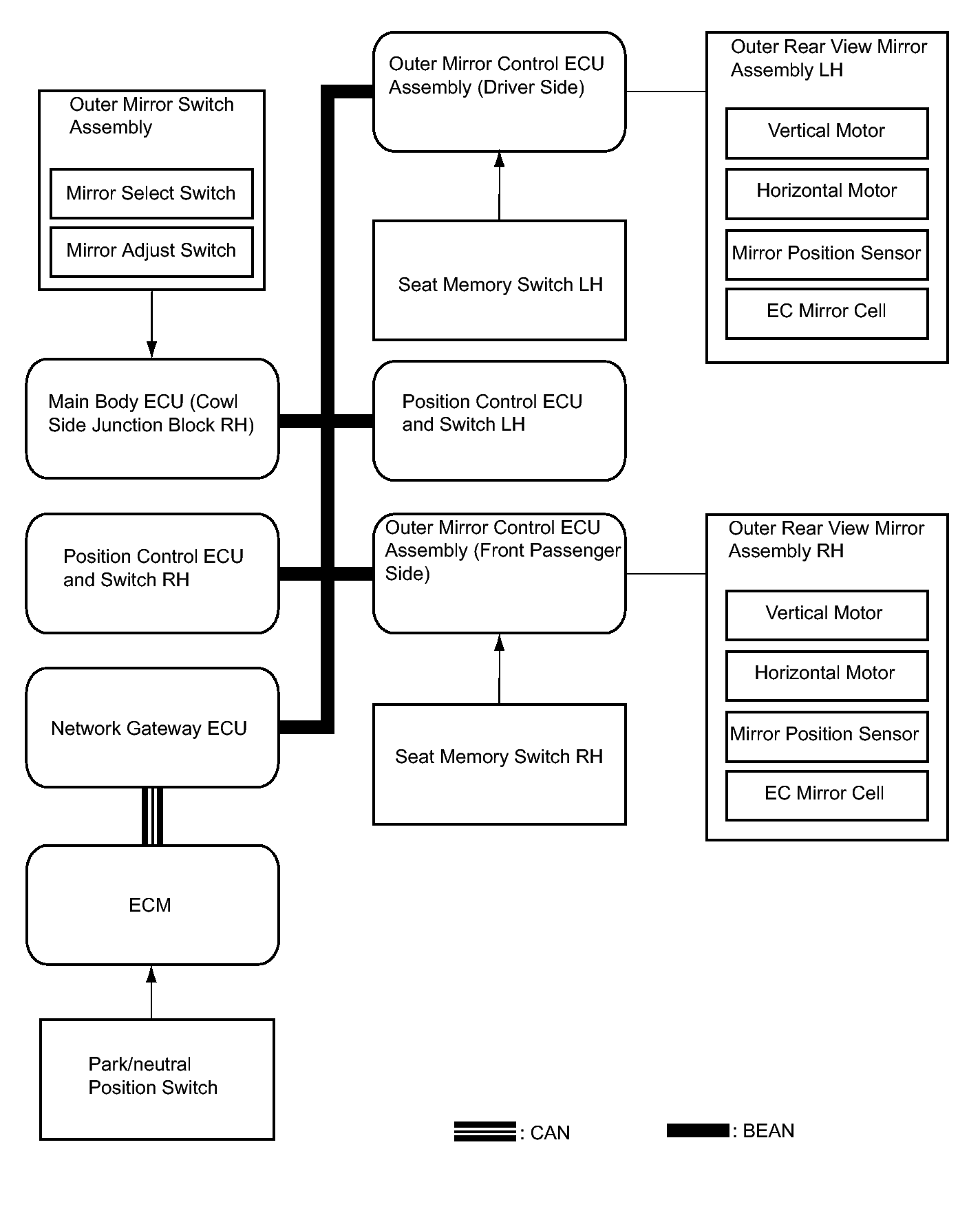

    Fig 1: Power Mirror Control System Diagram (1 Of 2)
    GTY357124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 2: Power Mirror Control System Diagram (2 Of 2)
    GTY137728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/o Occupant Classification System

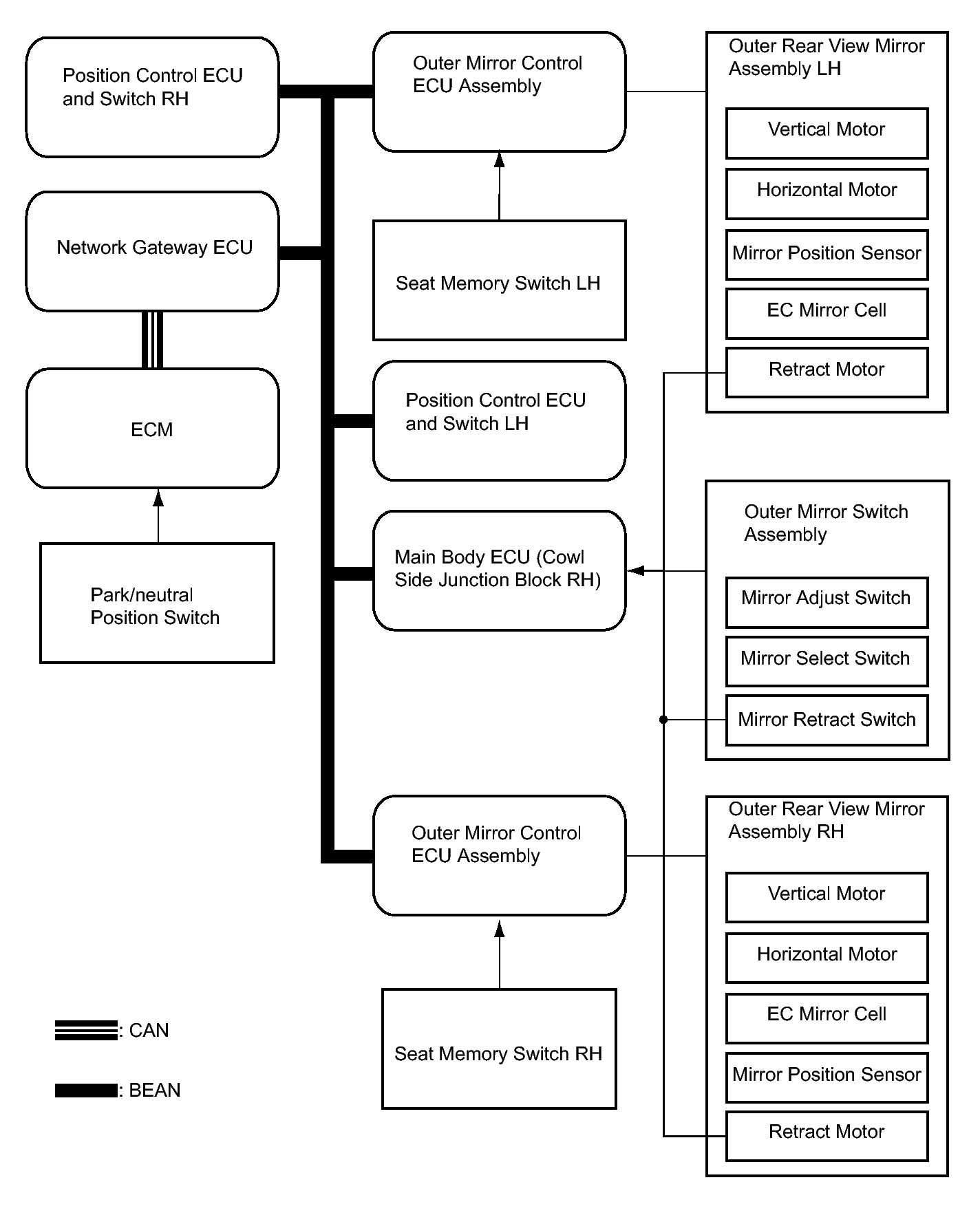

    Fig 3: Power Mirror Control System Diagram (w/o Occupant Classification System) (1 Of 2)
    GTY350780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 4: Power Mirror Control System Diagram (w/o Occupant Classification System) (2 Of 2)
    GTY137728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Communication Table
    Sender Receiver Signal Line
    Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (driver side) Engine switch signal (IG) BEAN
    Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (front passenger side) Engine switch signal (IG) BEAN
    Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (driver side) Engine switch signal (ACC) BEAN
    Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (front passenger side) Engine switch signal (ACC) BEAN
    Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (driver side) Mirror select switch in the RH position signal BEAN
    Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (front passenger side) Mirror select switch in the RH position signal BEAN
    Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (driver side) Mirror select switch in the LH position signal BEAN
    Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (front passenger side) Mirror select switch in the LH position signal BEAN
    Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (driver side) Mirror adjust switch in the right position BEAN
    Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (front passenger side) Mirror adjust switch in the right position BEAN
    Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (driver side) Mirror adjust switch in the left position BEAN
    Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (front passenger side) Mirror adjust switch in the left position BEAN
    Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (driver side) Mirror adjust switch in the up position BEAN
    Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (front passenger side) Mirror adjust switch in the up position BEAN
    Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (driver side) Mirror adjust switch in the down position BEAN
    Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (front passenger side) Mirror adjust switch in the down position BEAN
    Position control ECU and switch Outer mirror control ECU assembly (driver side) M1 memory store command BEAN
    Position control ECU and switch Outer mirror control ECU assembly (front passenger side) M1 memory store command BEAN
    Position control ECU and switch Outer mirror control ECU assembly (driver side) M2 memory store command BEAN
    Position control ECU and switch Outer mirror control ECU assembly (front passenger side) M2 memory store command BEAN
    Position control ECU and switch Outer mirror control ECU assembly (driver side) M3 memory store command BEAN
    Position control ECU and switch Outer mirror control ECU assembly (front passenger side) M3 memory store command BEAN
    Position control ECU and switch Outer mirror control ECU assembly (driver side) M1 memory return command BEAN
    Position control ECU and switch Outer mirror control ECU assembly (front passenger side) M1 memory return command BEAN
    Position control ECU and switch Outer mirror control ECU assembly (driver side) M2 memory return command BEAN
    Position control ECU and switch Outer mirror control ECU assembly (front passenger side) M2 memory return command BEAN
    Position control ECU and switch Outer mirror control ECU assembly (driver side) M3 memory return command BEAN
    Position control ECU and switch Outer mirror control ECU assembly (front passenger side) M3 memory return command BEAN
    Outer mirror control ECU assembly (driver side) Position control ECU and switch LH SET switch on signal BEAN
    Outer mirror control ECU assembly (driver side) Position control ECU and switch LH M1 switch on signal BEAN
    Outer mirror control ECU assembly (driver side) Position control ECU and switch LH M2 switch on signal BEAN
    Outer mirror control ECU assembly (driver side) Position control ECU and switch LH M3 switch on signal BEAN
    Outer mirror control ECU assembly (front passenger side) Position control ECU and switch RH SET switch on signal BEAN
    Outer mirror control ECU assembly (front passenger side) Position control ECU and switch RH M1 switch on signal BEAN
    Outer mirror control ECU assembly (front passenger side) Position control ECU and switch RH M2 switch on signal BEAN
    Outer mirror control ECU assembly (front passenger side) Position control ECU and switch RH M3 switch on signal BEAN
    Wind shield wiper switch assembly Air conditioning amplifier assembly Wiper switch condition signal BEAN
    Rain sensor Air conditioning amplifier assembly Rain sensor signal BEAN
    ECM Outer mirror control ECU assembly (driver side) Shift position R signal CAN / BEAN
    ECM Outer mirror control ECU assembly (front passenger side) Shift position R signal CAN / BEAN
