Sound Signal Circuit between Navigation ECU and Multi-media Interface ECU: Wiring Diagram

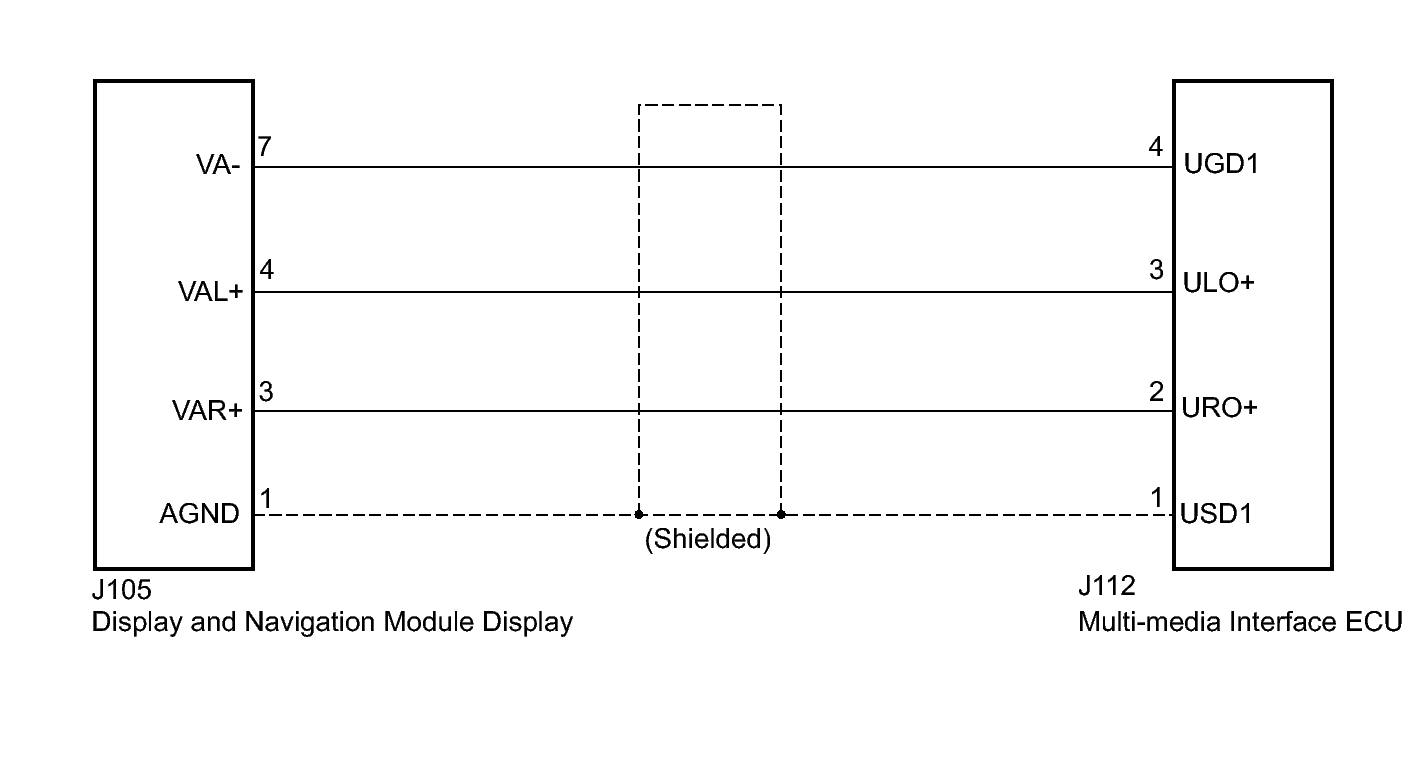

Fig 1: View Of Navigation ECU And Multi-Media Interface ECU Signal Circuit Wiring Diagram
GTY259225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
