DTC B1271: Combination Meter ECU Communication Stop: Wiring Diagram

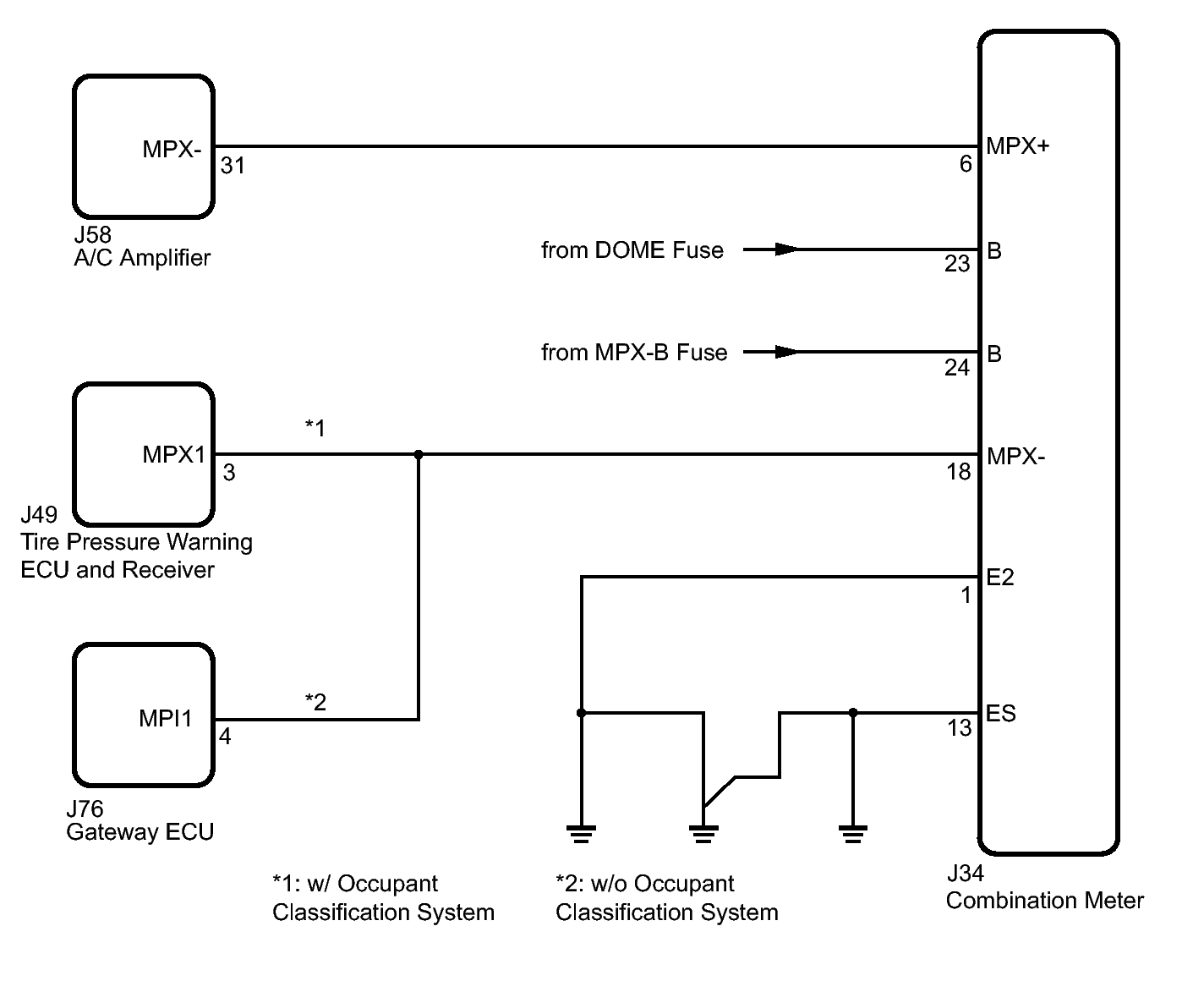

Fig 1: Identifying Combination Meter ECU Communication Wiring Diagram

GTY359543

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
