DTC B1206: P/W Master Switch Communication Stop: Wiring Diagram

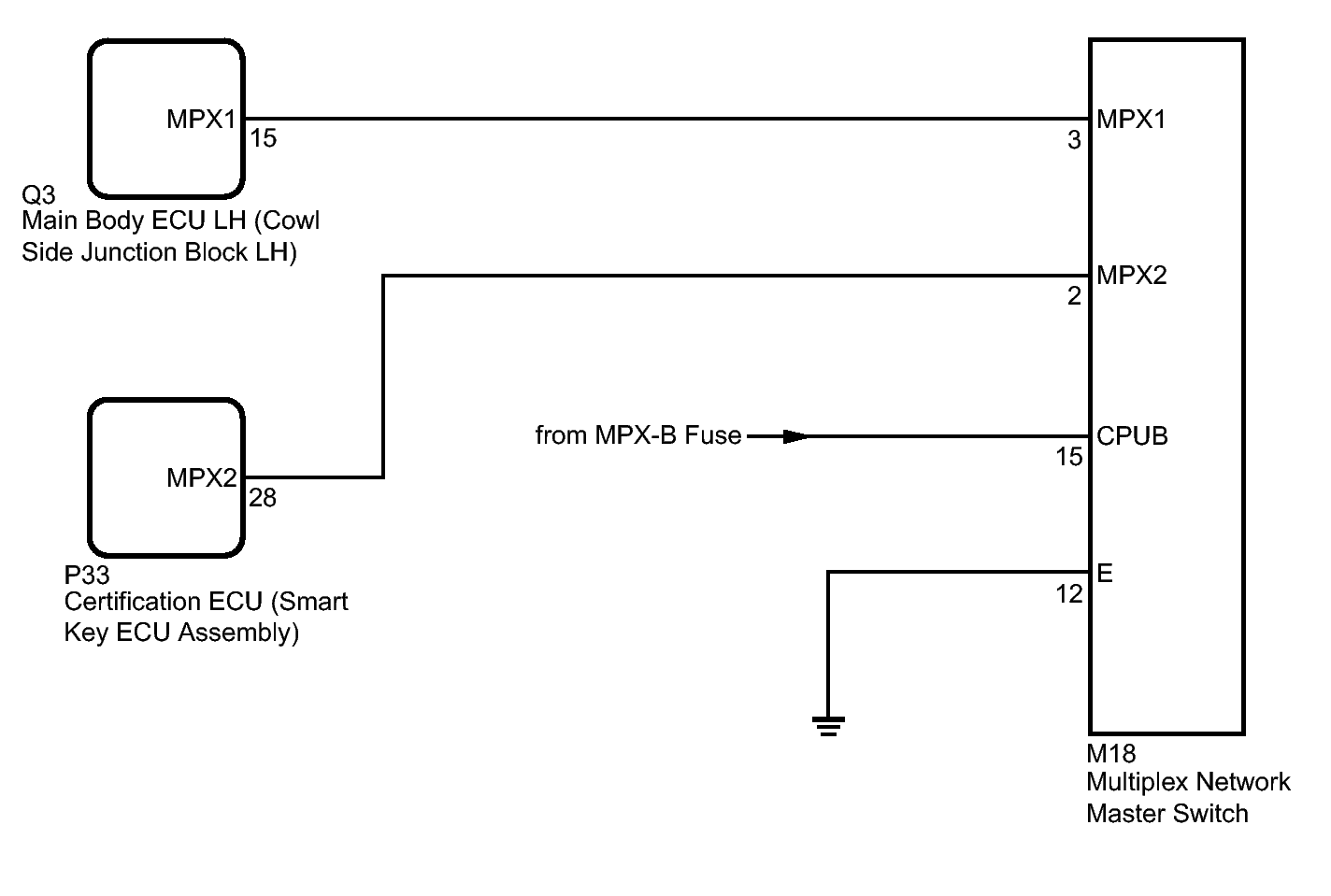

Fig 1: Identifying P/W Master Switch Communication Stop Wiring Diagram

GTY133972

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
