Cigarette Lighter: Components: Illustration

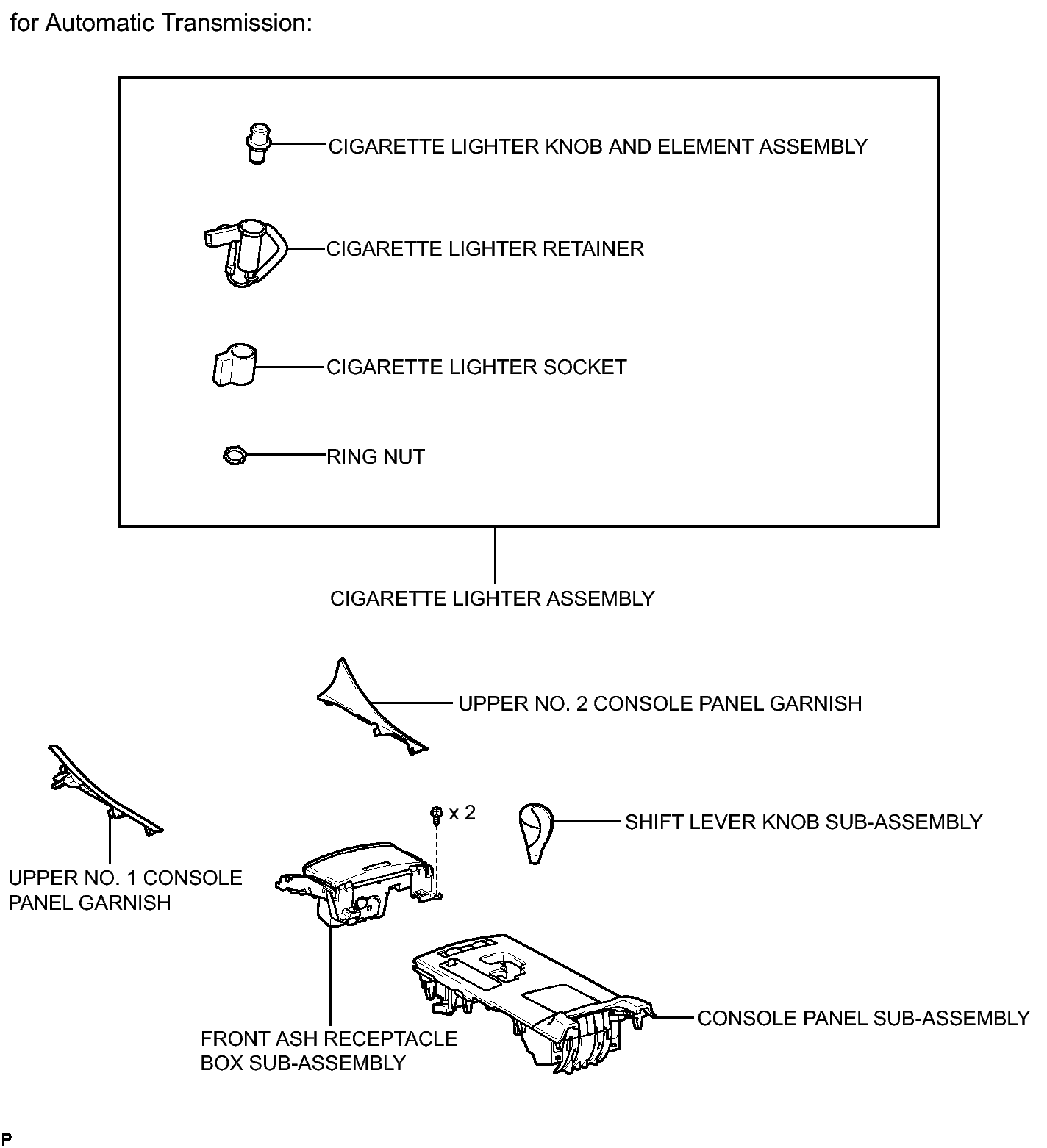

Fig 1: Identifying Cigarette Lighter Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

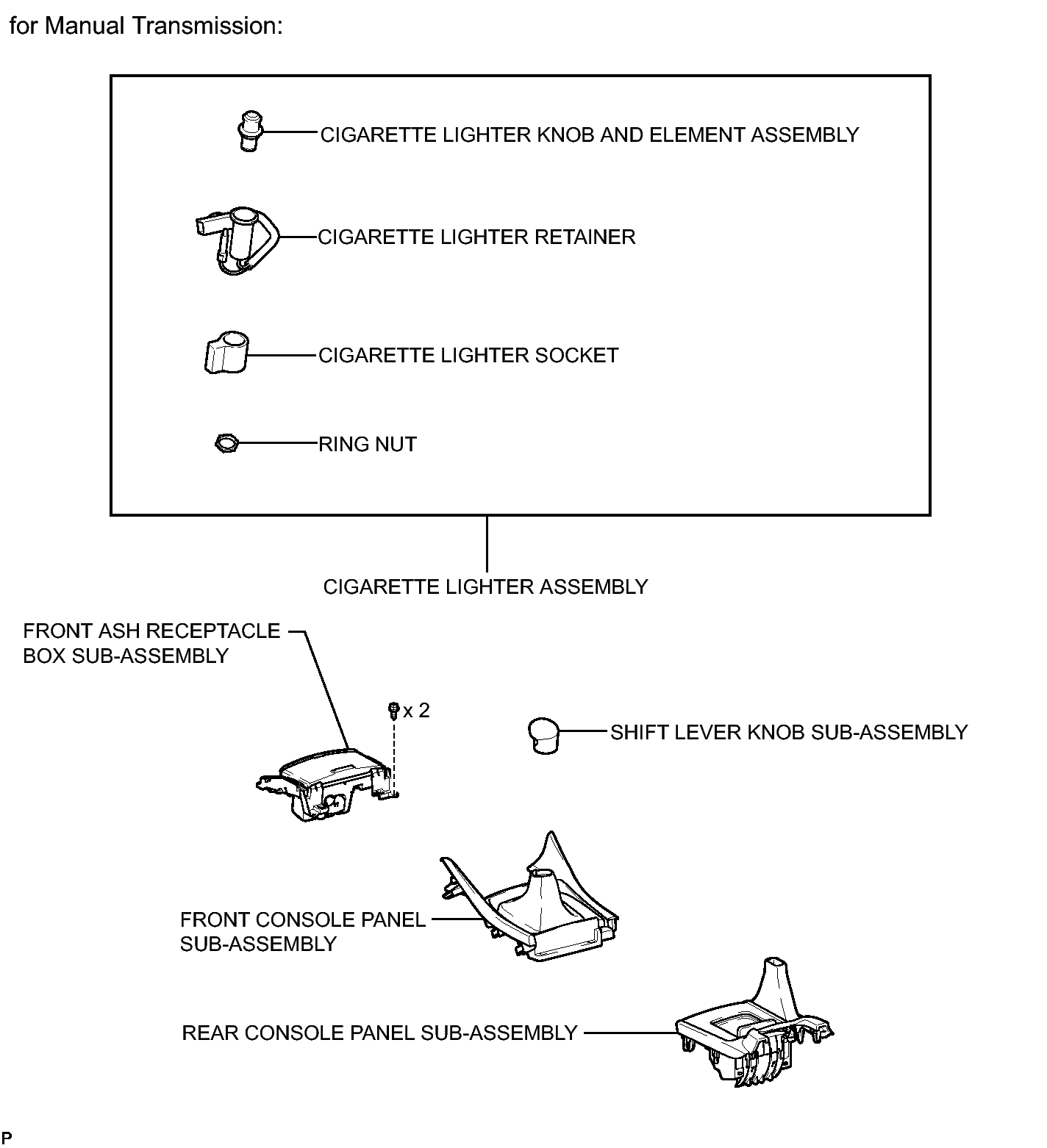

Fig 1: Identifying Cigarette Lighter Replacement Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
