Center Power Outlet Socket: Components: Illustration

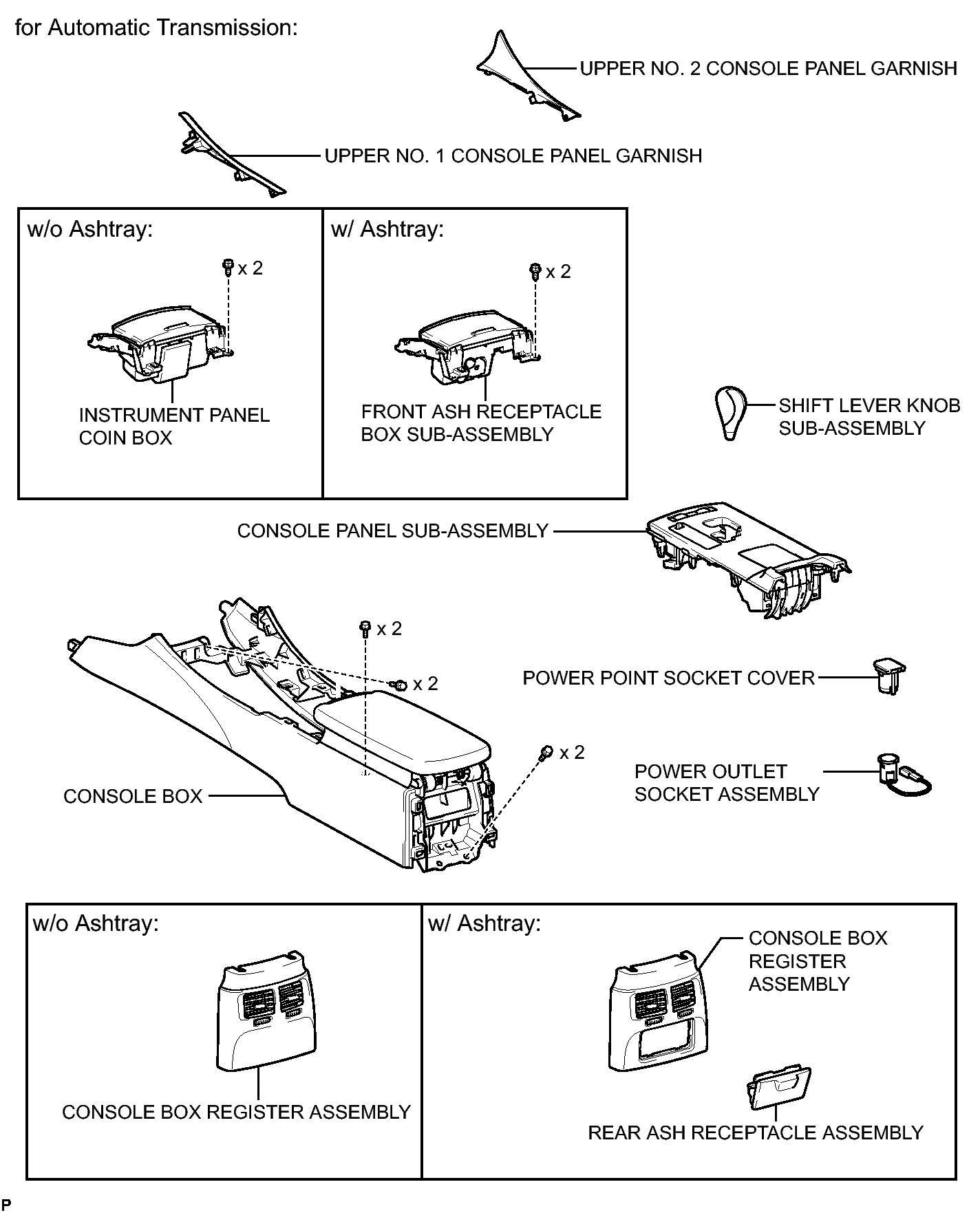

Fig 1: Identifying Center Power Outlet Socket Replacement Components (1 Of 2)
GTY352641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

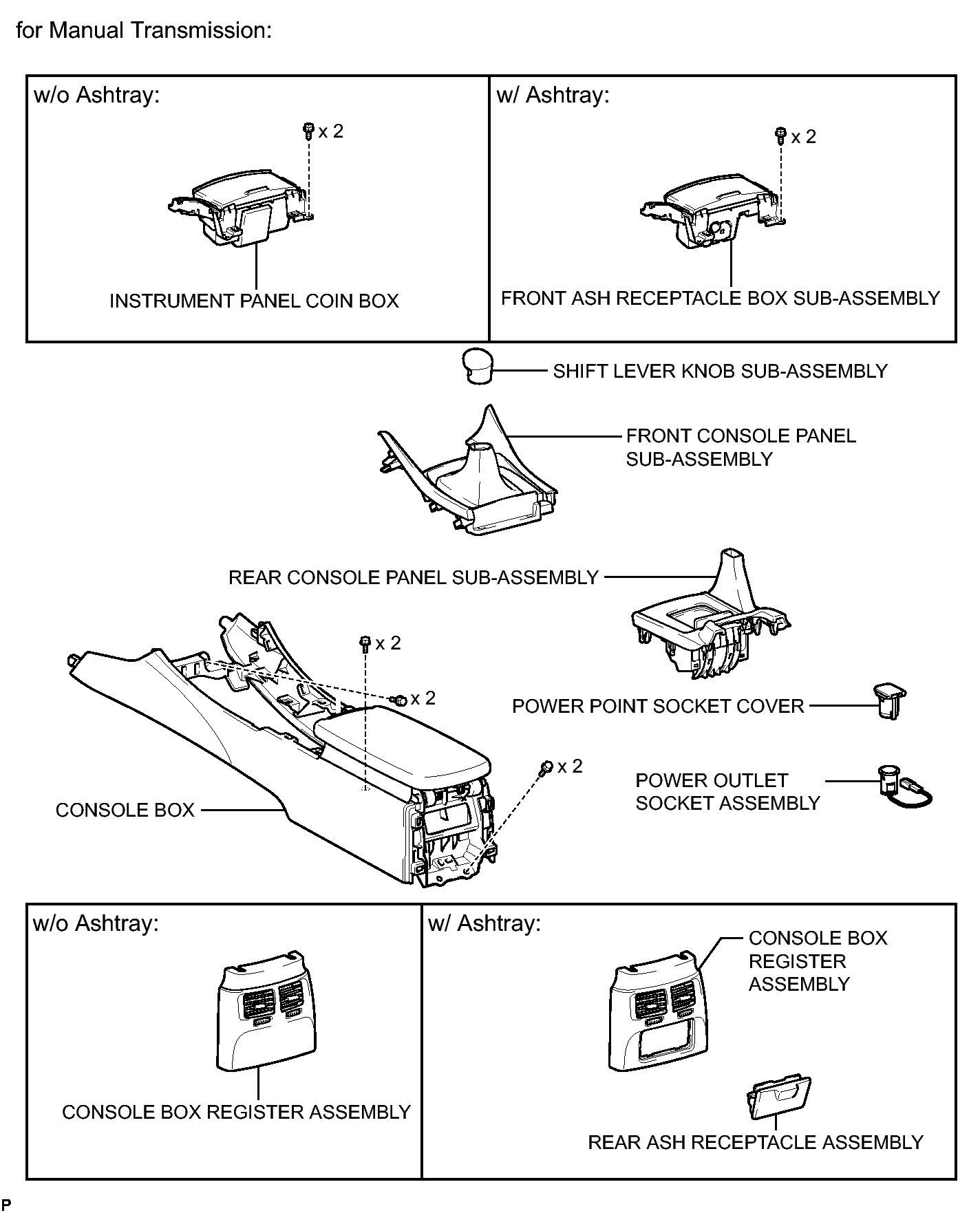

Fig 1: Identifying Center Power Outlet Socket Replacement Components (2 Of 2)
GTY353067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
