DTC P0112: Intake Air Temperature Circuit Low Input; DTC P0113: Intake Air Temperature Circuit High Input: Wiring Diagram

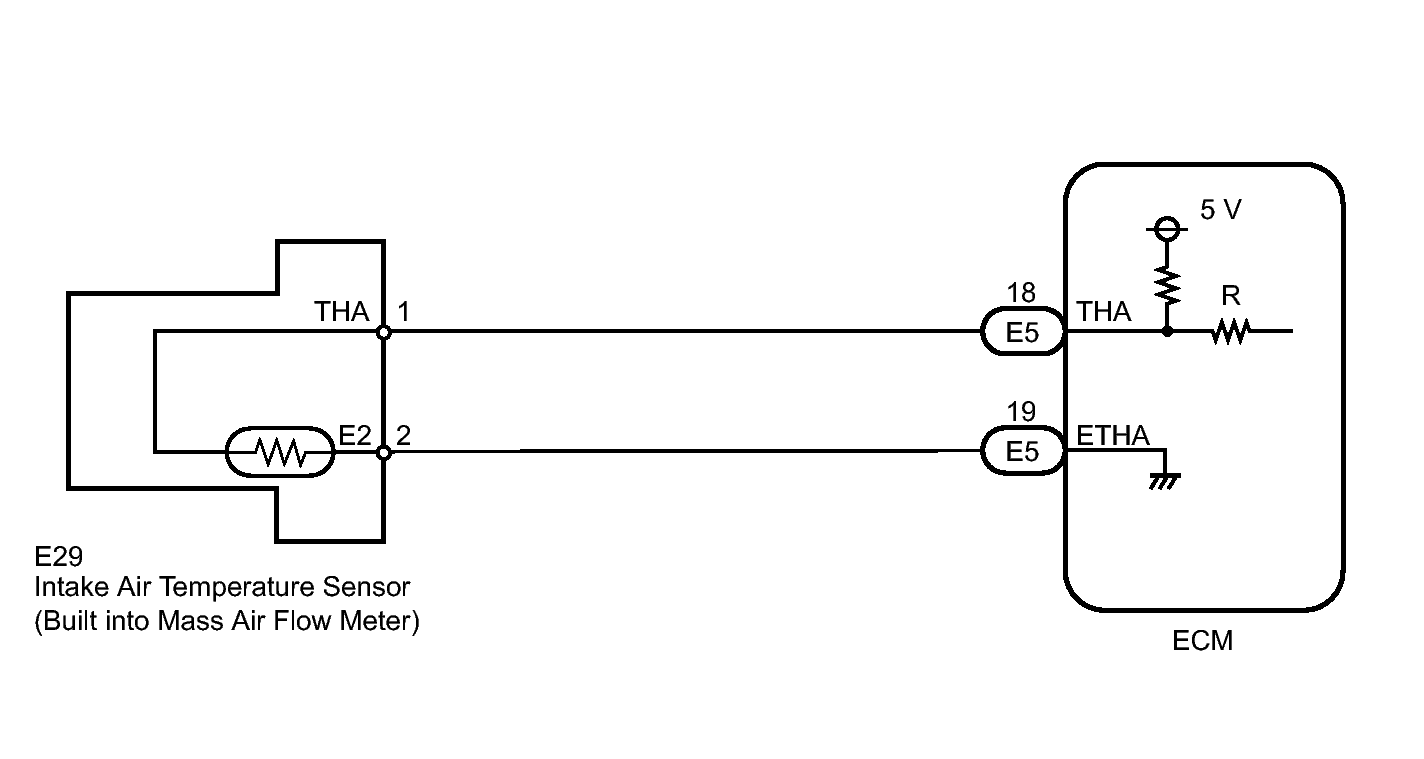

Fig 1: Identifying Intake Air Temperature Sensor - Wiring Diagram
GTY262750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
