Steering Angle Sensor Communication Stop Mode: Wiring Diagram

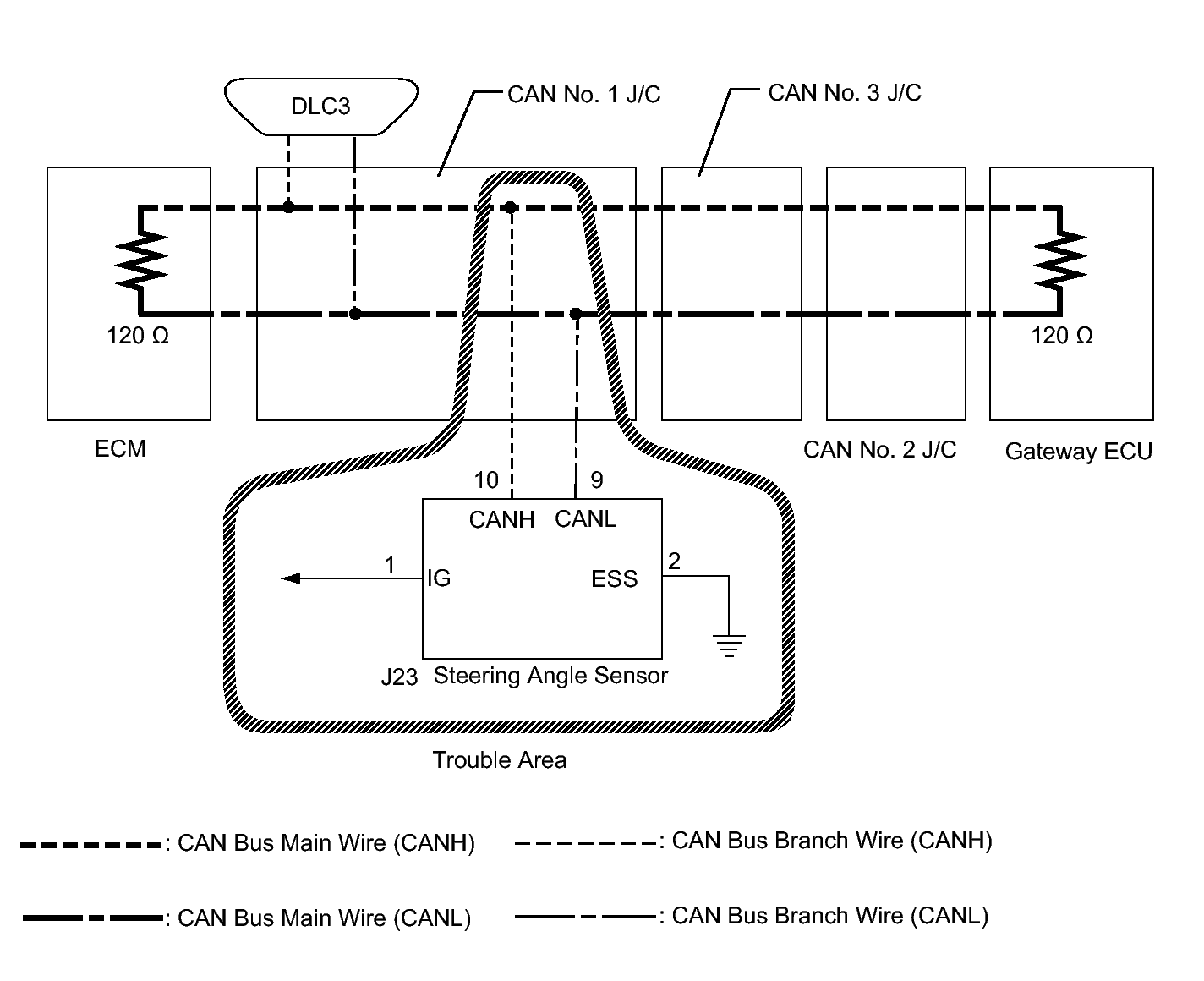

Fig 1: Identifying Steering Angle Sensor Communication Stop Mode - Wiring Diagram

GTY282552

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
