Distance Control ECU Communication Stop Mode: Procedure

1. Turn the engine switch off.
2. Disconnect the distance control ECU connector.

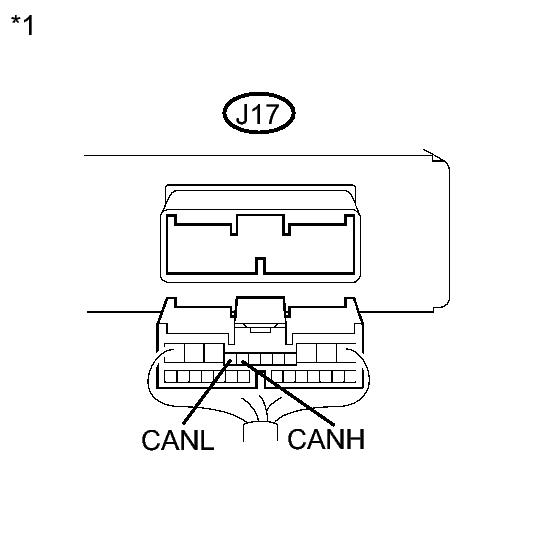

   Fig 1: Identifying Distance Control ECU Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Rear view of wire harness connector (to Distance Control ECU)

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Value
   J17-8 (CANH) - J17-9 (CANL)	Engine switch off	54 to 69 Ω

NG → REPAIR OR REPLACE DISTANCE CONTROL ECU BRANCH WIRE OR CONNECTOR (CANH, CANL)

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.
   Fig 2: Identifying J17 Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Value
   J17-12 (GND) - Body ground	Always	Below 1 Ω

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Value
   J17-1 (B) - Body ground	Engine switch on (IG)	11 to 14 V

   TEXT IN ILLUSTRATION



   *1	Rear view of wire harness connector (to Distance Control ECU)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

OK → See step   3
